Controller Area Network (CAN) Multiplex Messages




Controller Area Network (CAN) Multiplex Messages

Modules on the CAN utilize simultaneous communication of 2 or more messages on the same network circuits. The following chart summarizes the messages sent and received on the network.

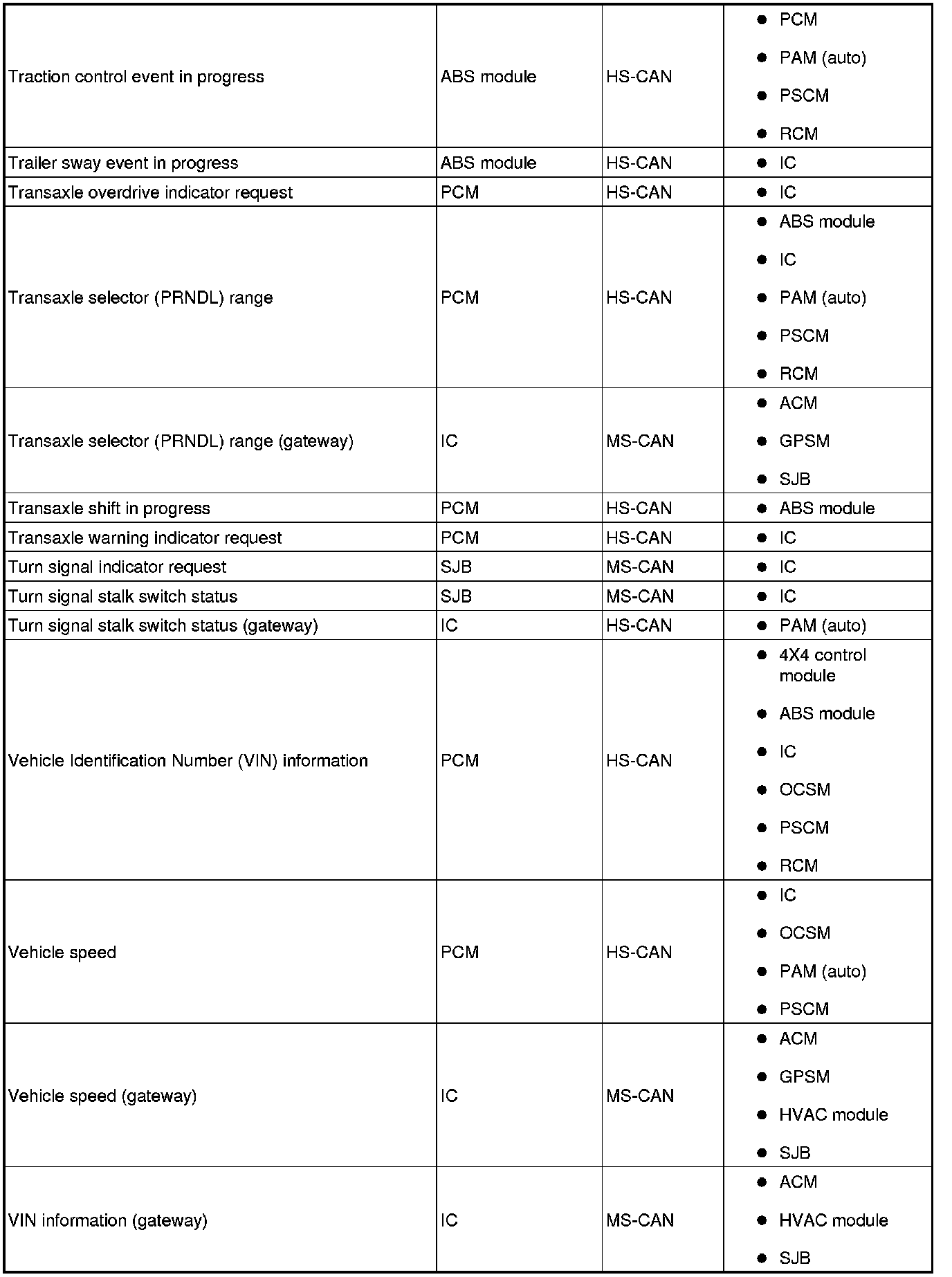

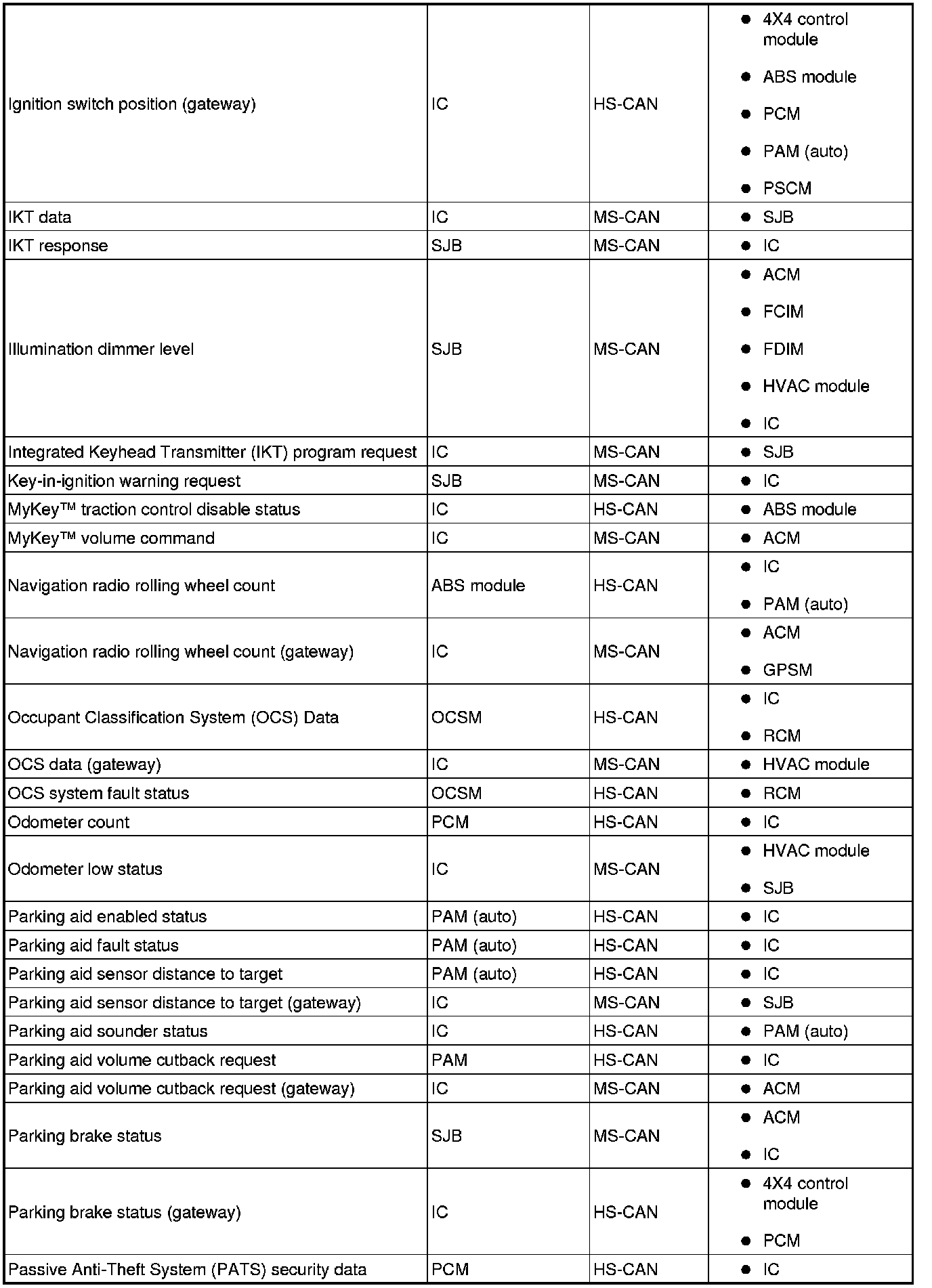

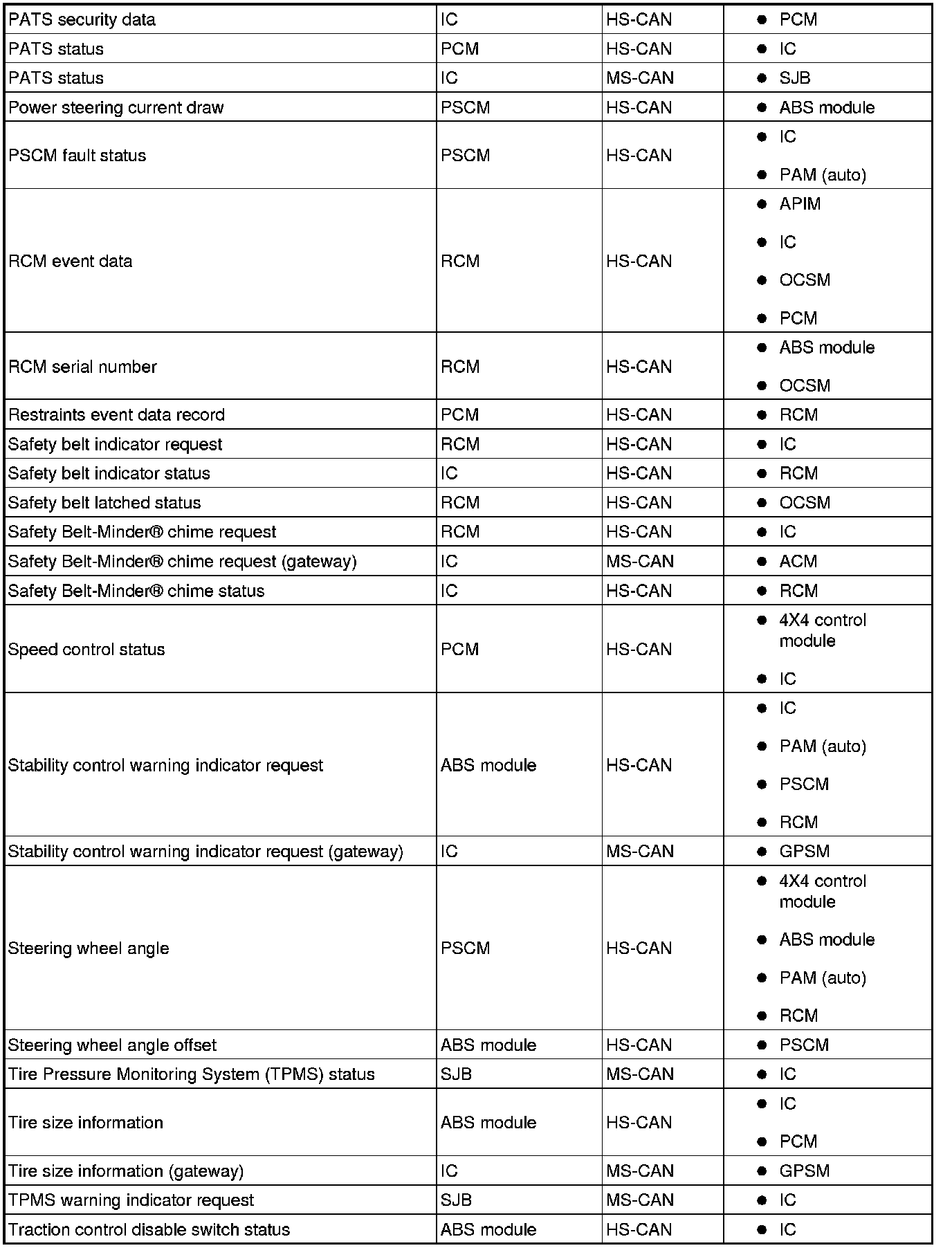

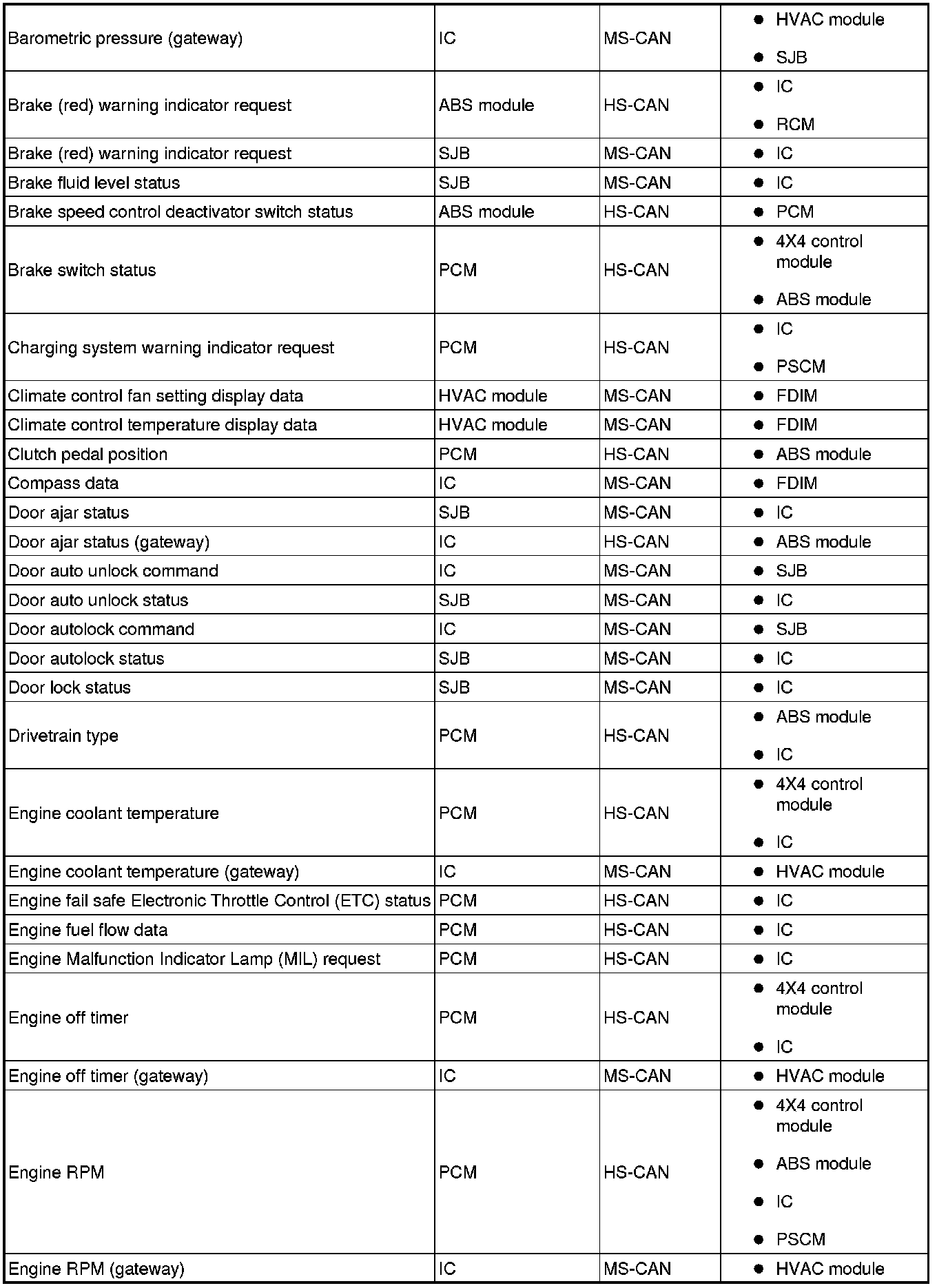

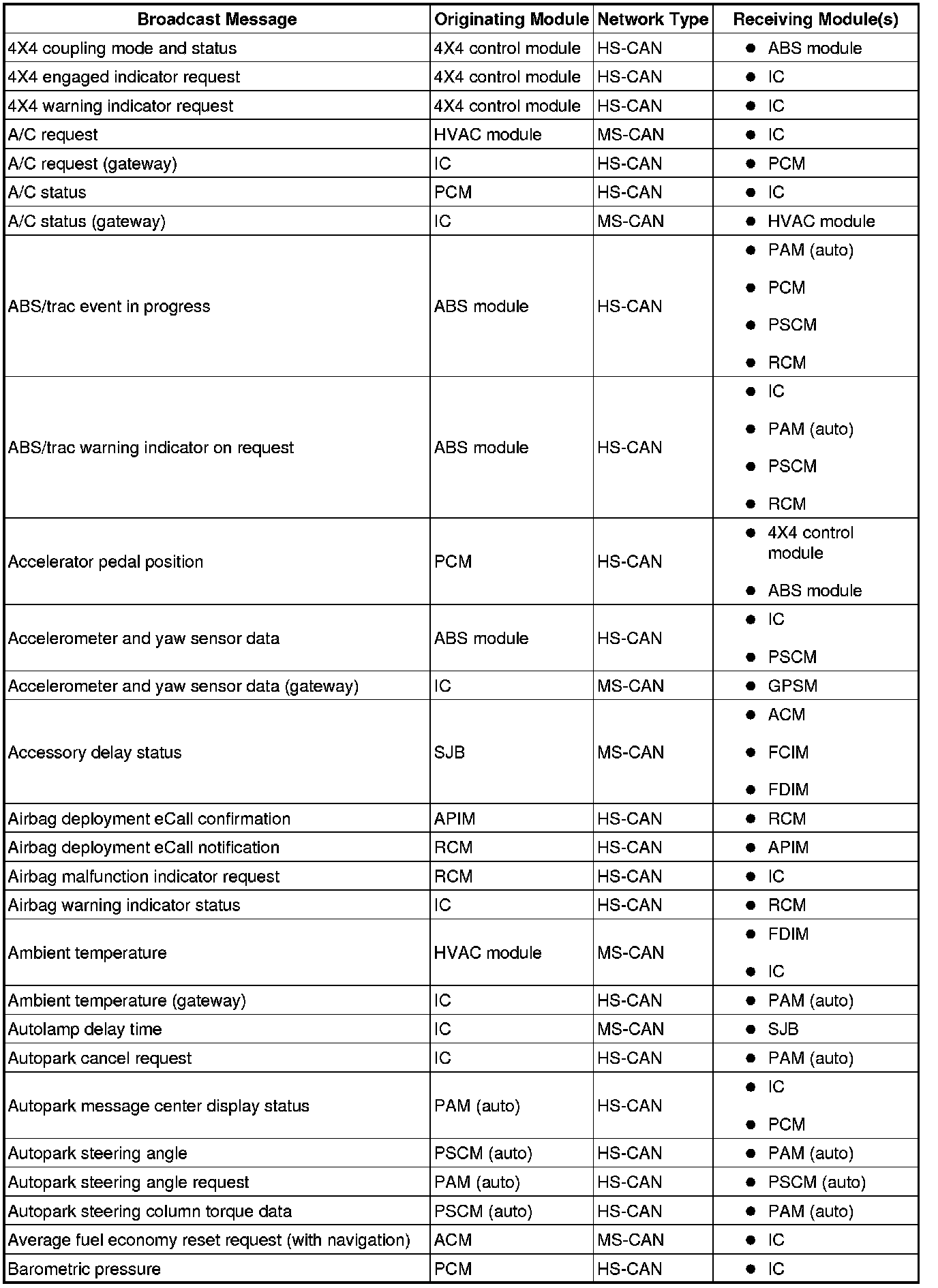

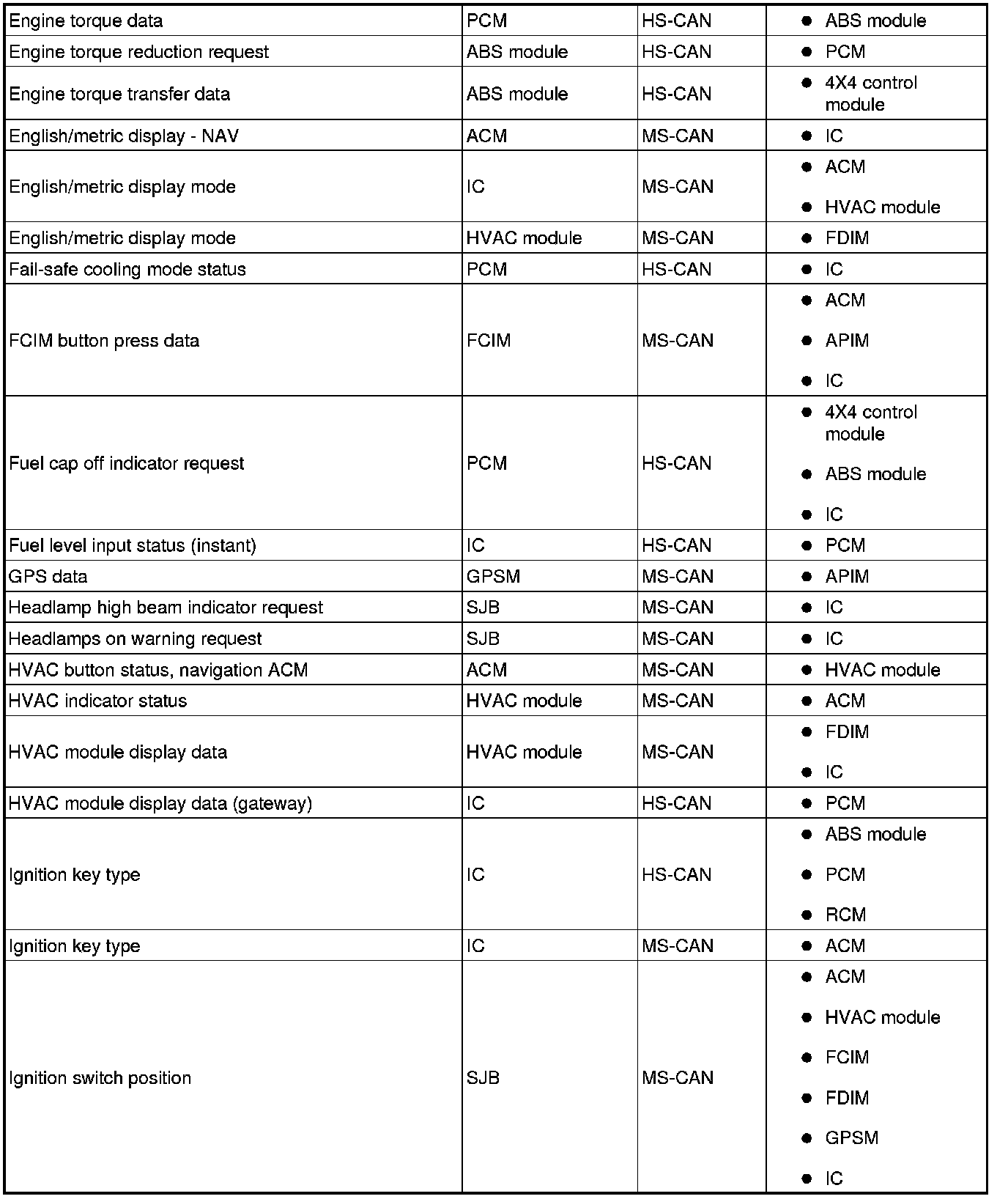

CAN Module Communication Message Chart
