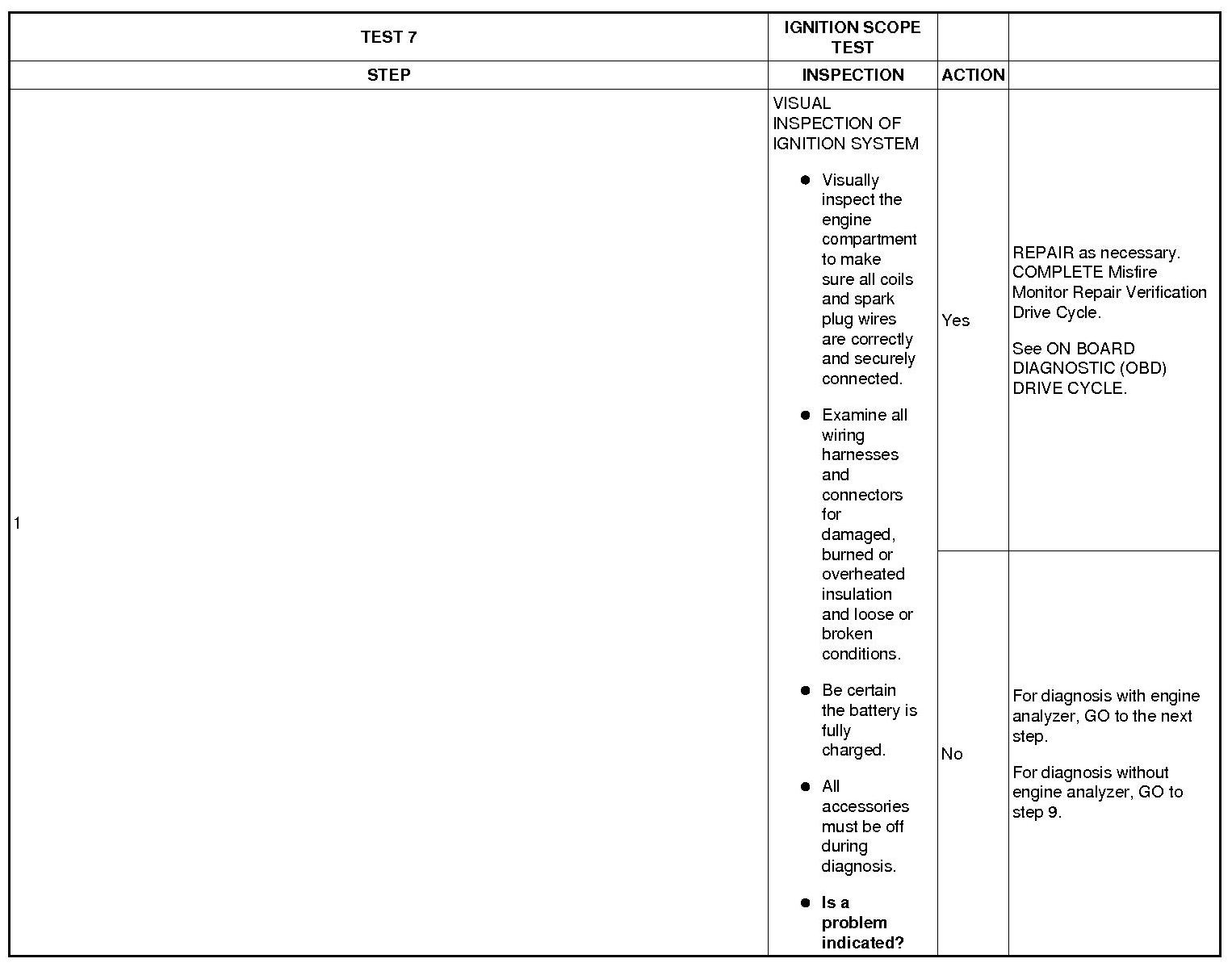

Test 7: Ignition Scope Test




TEST 7: IGNITION SCOPE TEST

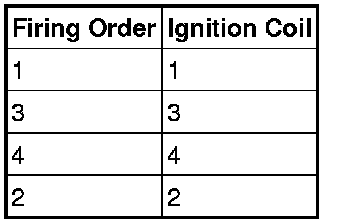

CAUTION:Fouled plugs or a damaged ignition may cause high catalyst temperatures. Check components next to the catalyst and muffler for heat damage.2.5L

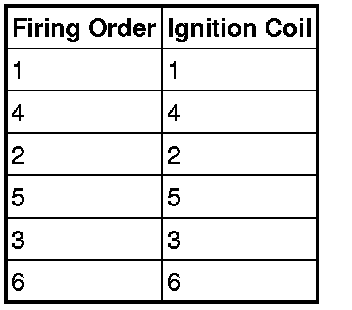

3.0L
