Alignment

SPECIFICATIONS

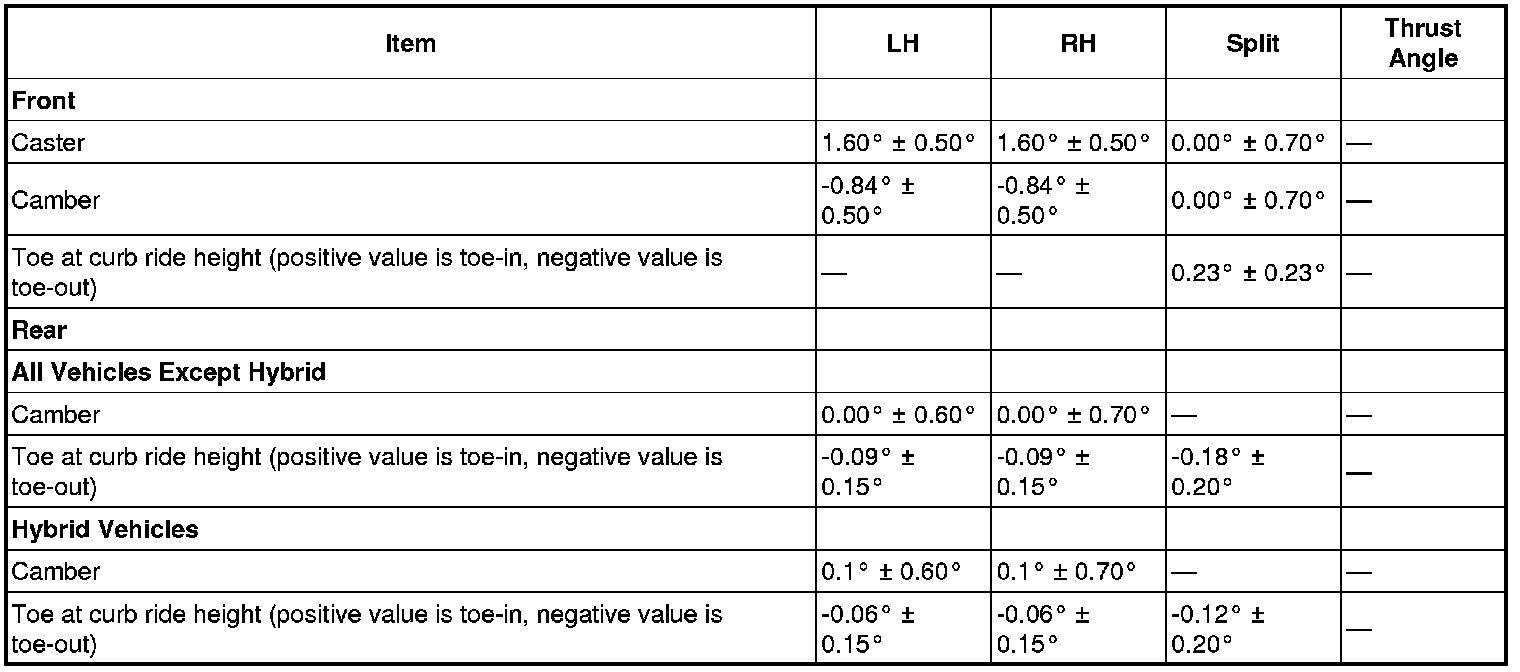

Alignment Specifications






NOTE:All alignment specifications are with the vehicle fuel tank full.

Ride Height

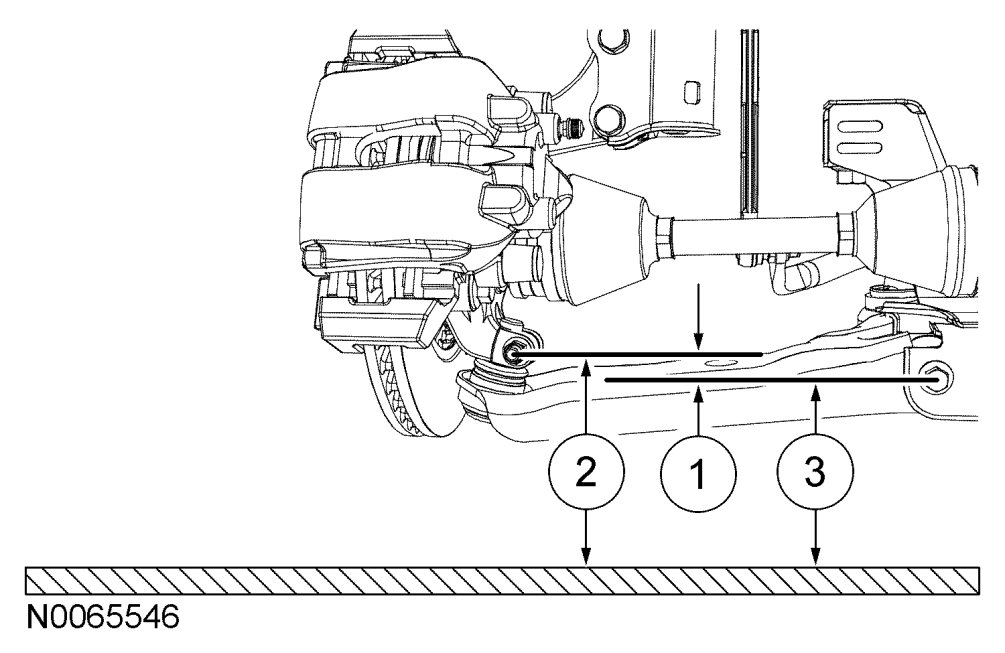

Front Ride Height
All Vehicles 3.3 mm (0.13 in) ± 8 mm (0.31 in)











Rear Ride Height
All vehicles except Hybrid 94.8 mm (3.73 in) ± 8 mm (0.31 in)
Hybrid vehicles 88 mm (3.46 in) ± 8 mm (0.31 in)
