Connecting Rod, Engine
Connecting RodCrank bore diameter 55.023-55.047 mm (2.166-2.167 in)
Pin bore diameter 20.965-20.985 mm (0.825--0.826 in)
Length (center-to-center) 151.8 mm (5.976 in)
Side clearance 1.95-3.05 mm (0.076-0.120 in)
Axial clearance 0.14-0.36 mm (0.005-0.014 in)
Connecting rod journal diameter 51.978-52.002 mm (2.046-2.047 in)
Production repair 51.730-51.750 mm (2.036-2.037 in)

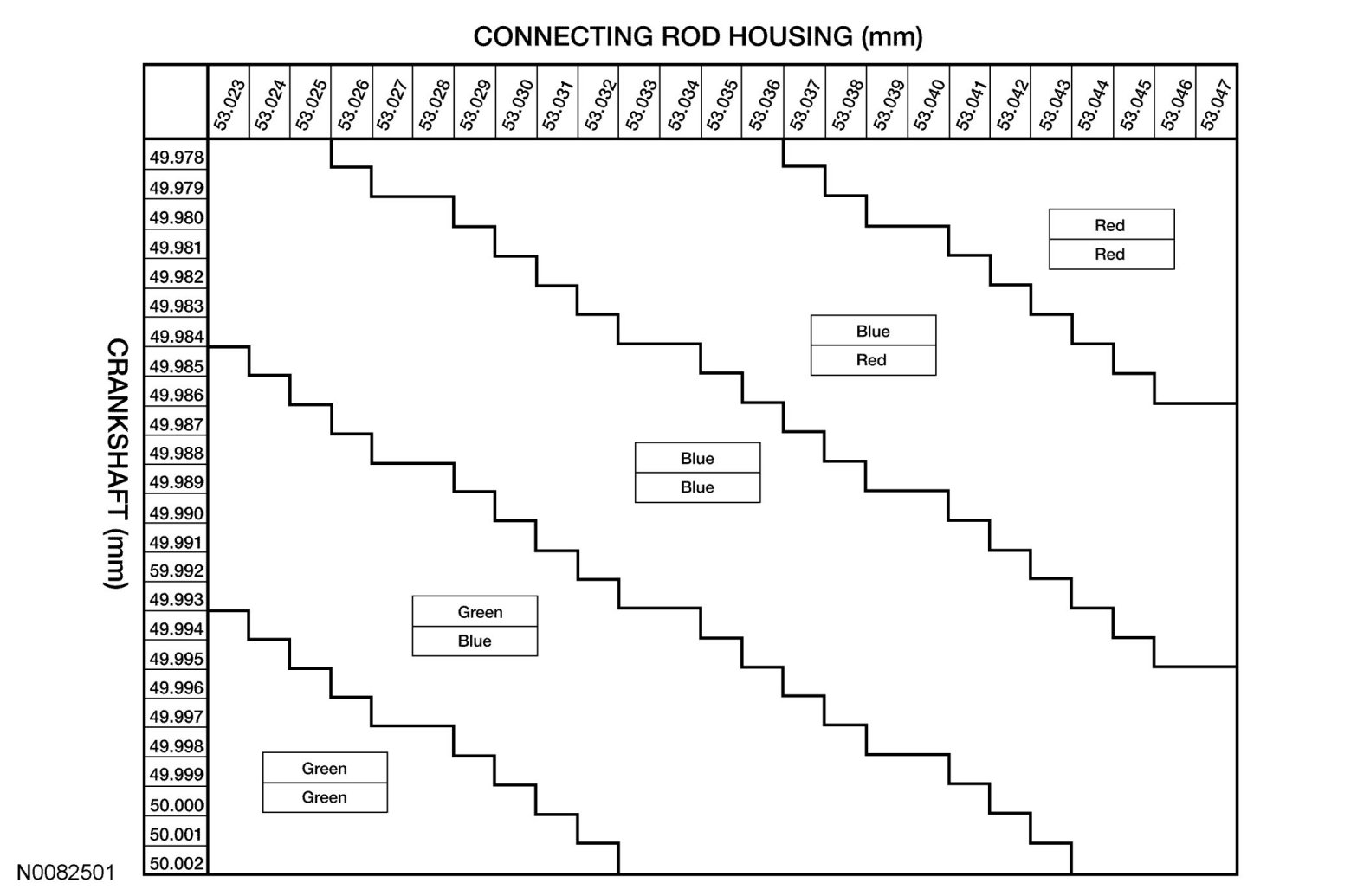

Connecting Rod Size Code Chart
Connecting Rod Caps
- Tighten the bolts in 2 stages.
- Stage 2: Tighten to 29 Nm {2.9 kgf-m, 21 in-lbf}.
- Stage 2: Tighten an additional 90 degrees.
