System Specifications




SPECIFICATIONS

Material Specifications

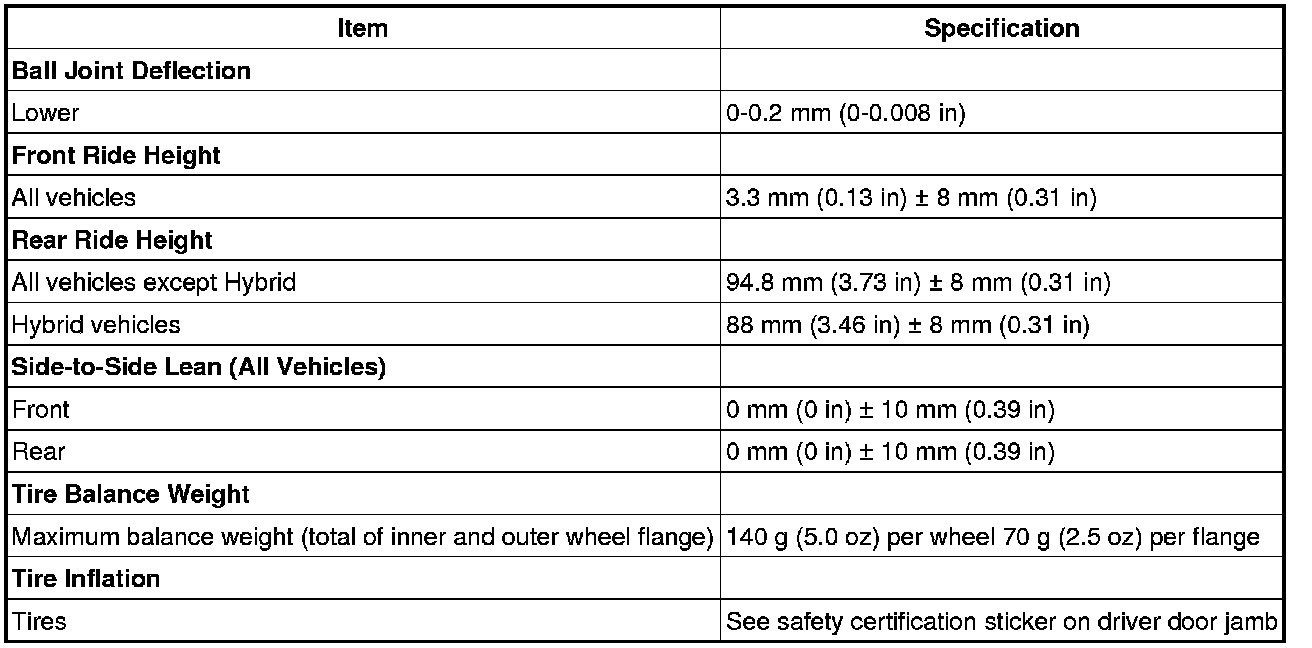

General Specifications

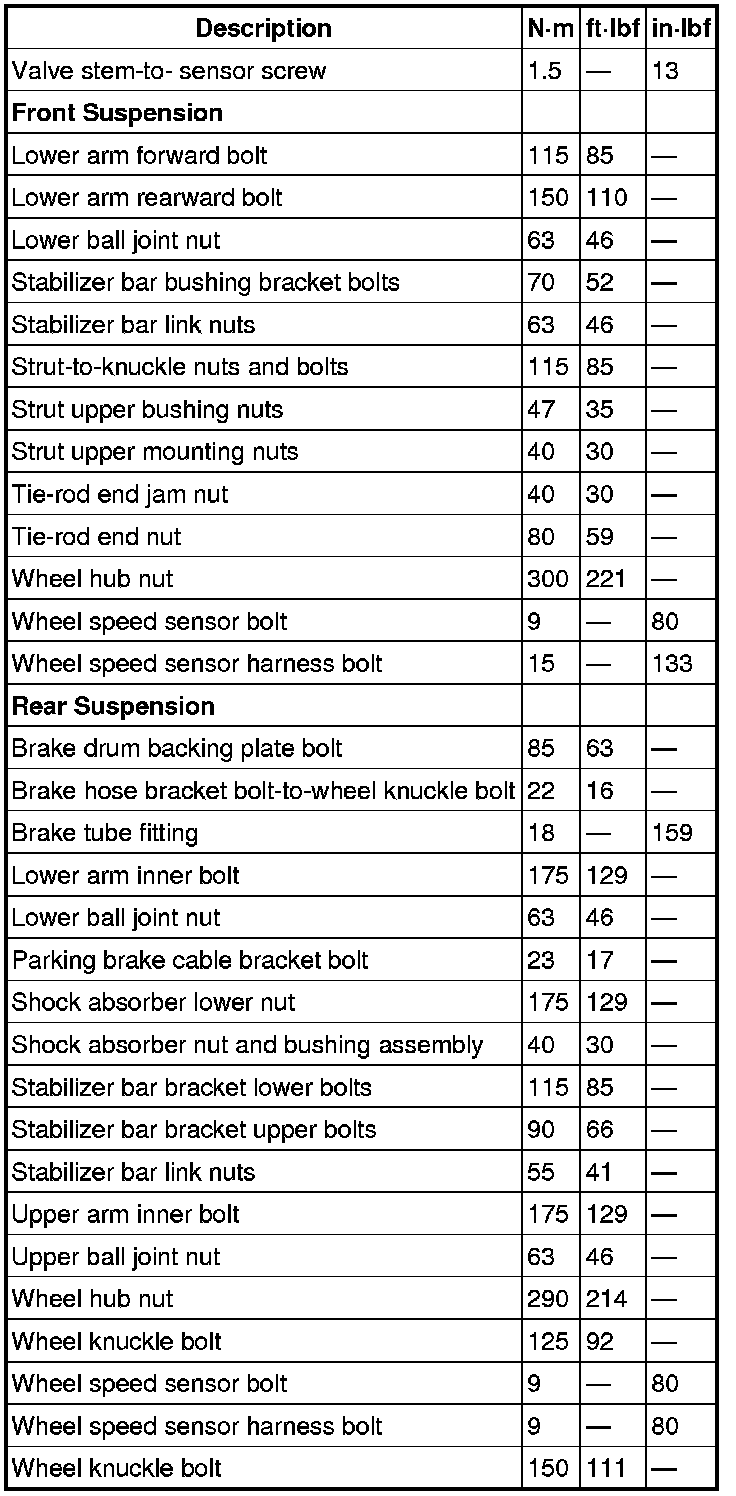

Torque Specifications





Alignment Specifications





NOTE:All alignment specifications are with the vehicle fuel tank full.
