Power Distribution Module

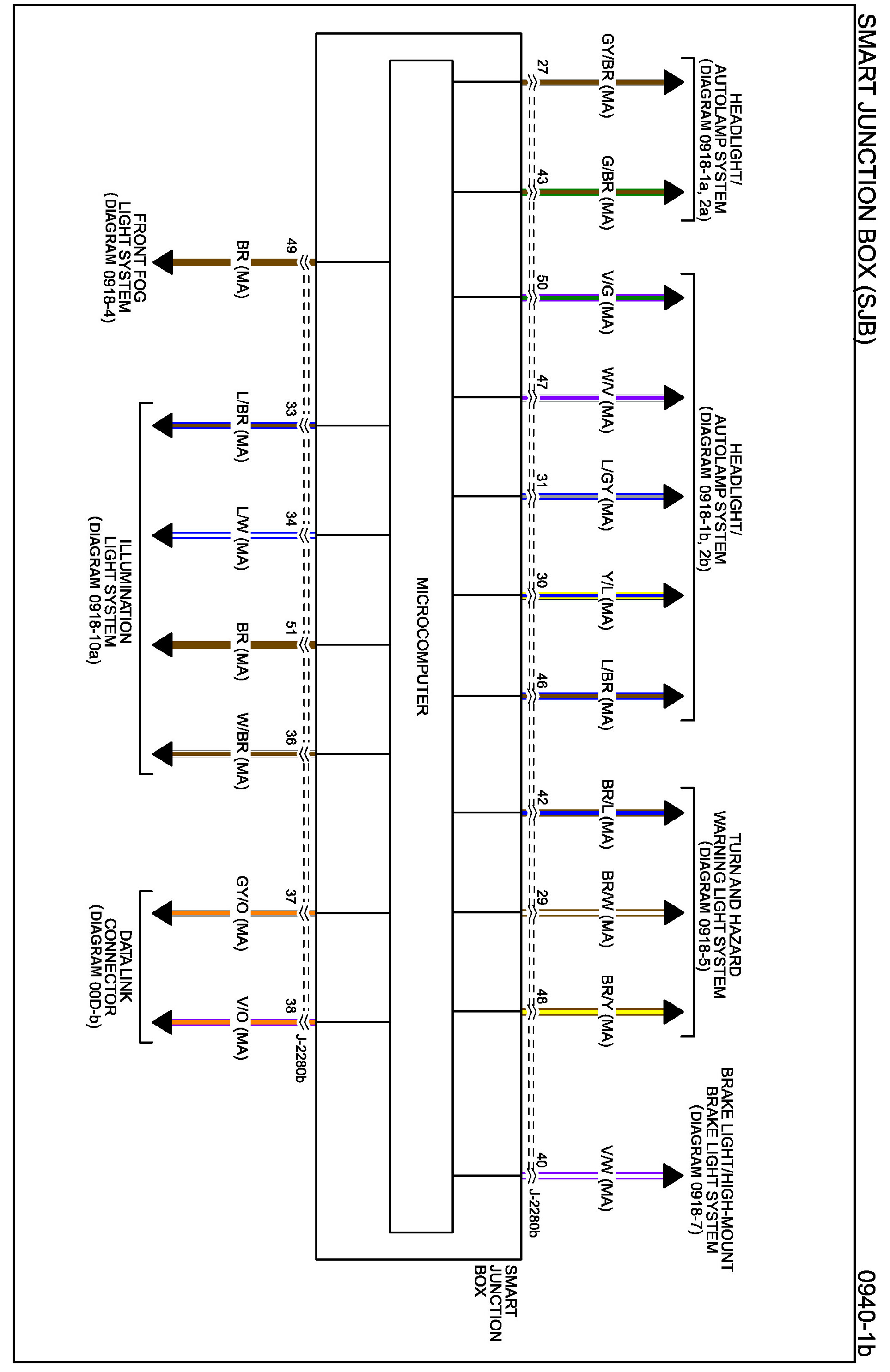

Smart Junction Box (SJB):

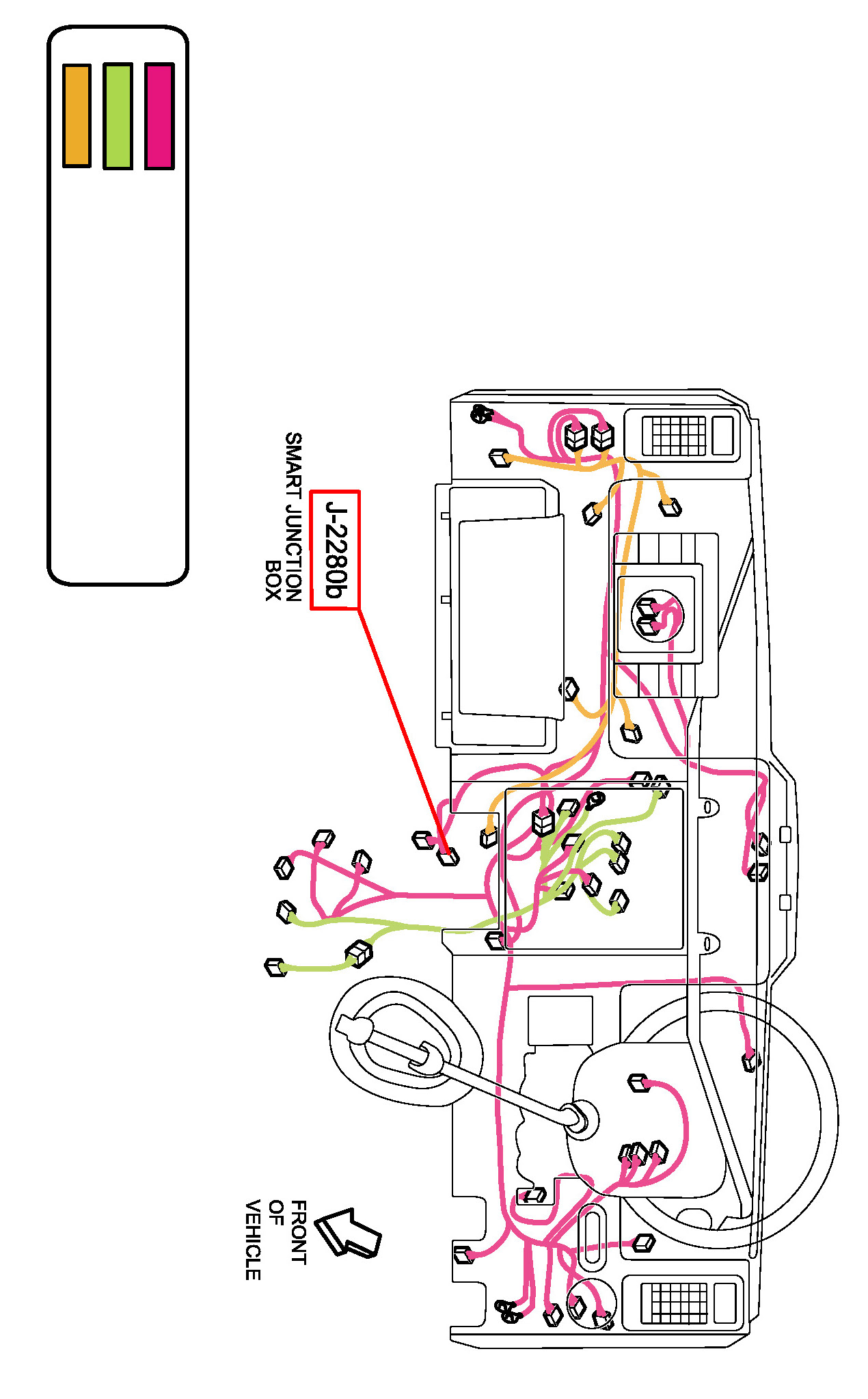

Routing View:

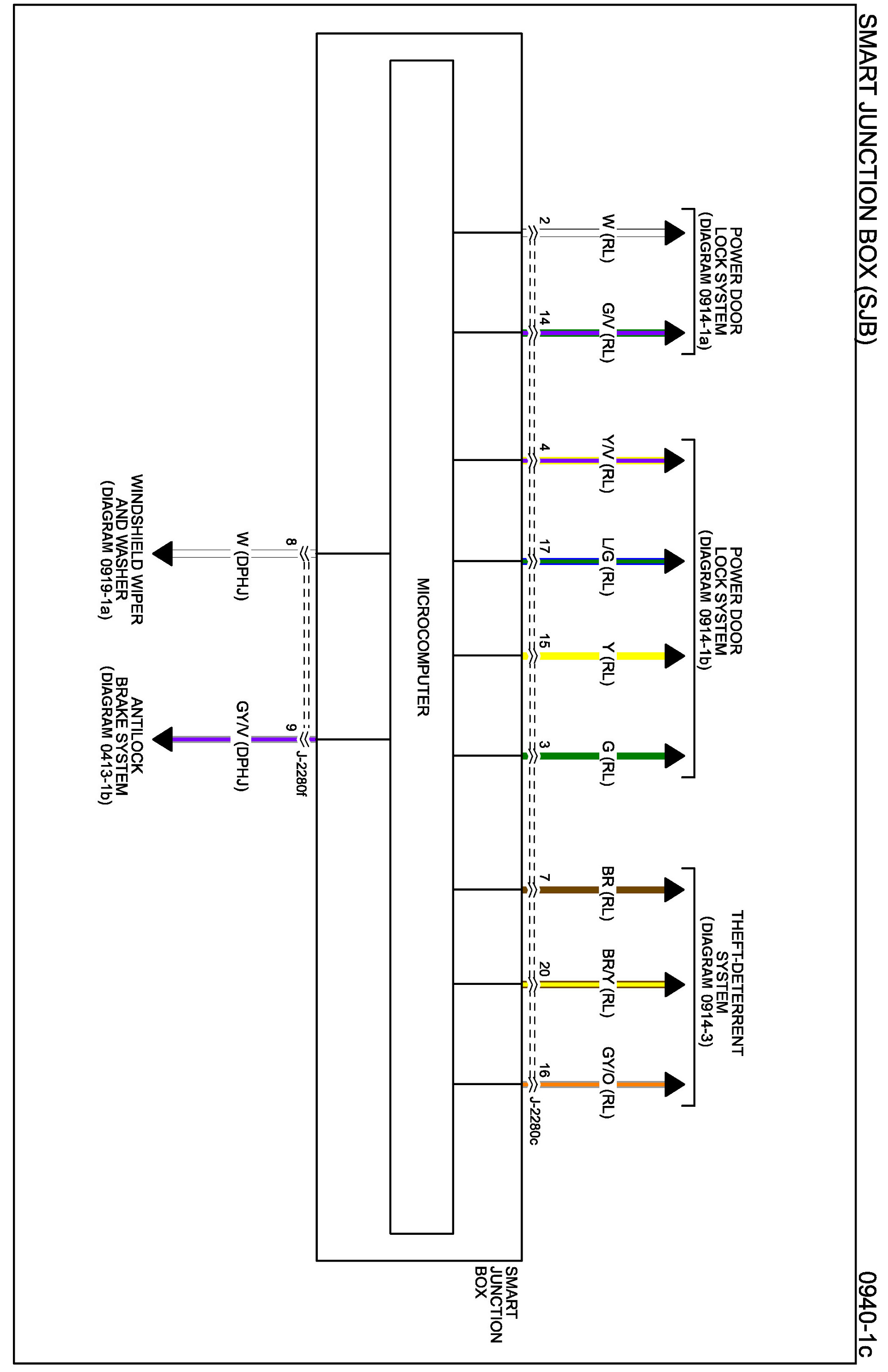

Smart Junction Box (SJB):

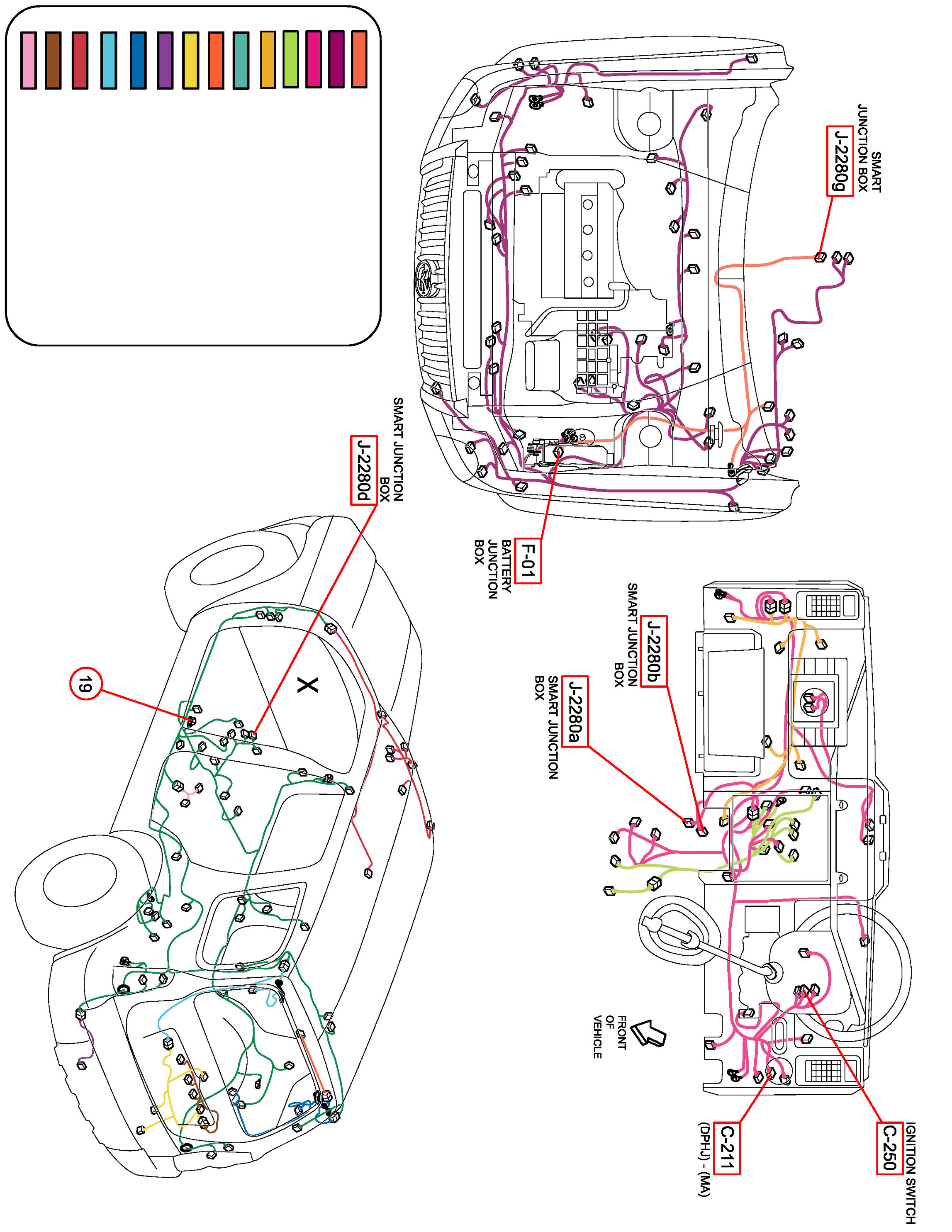

Routing View:

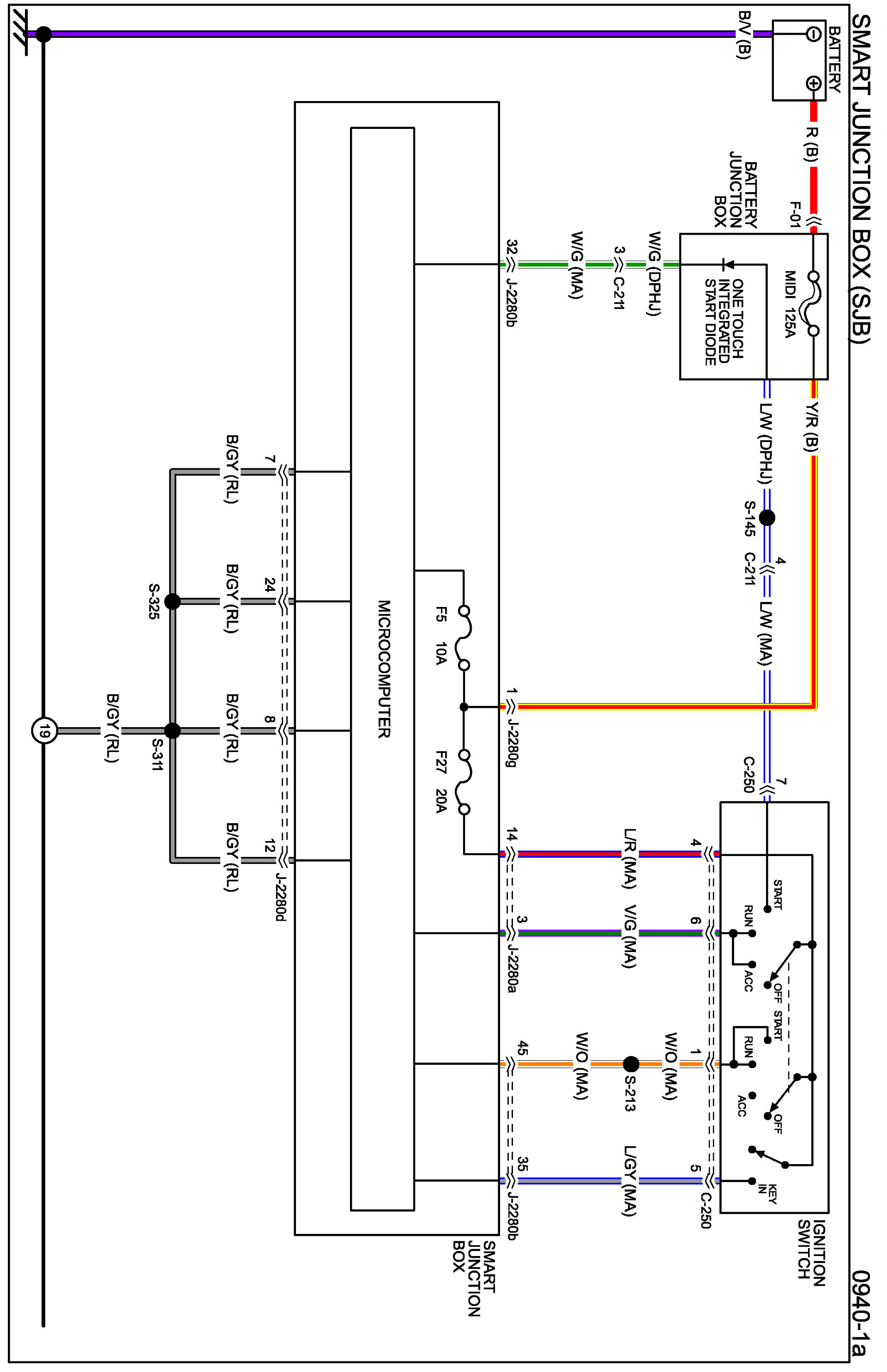

Smart Junction Box (SJB):

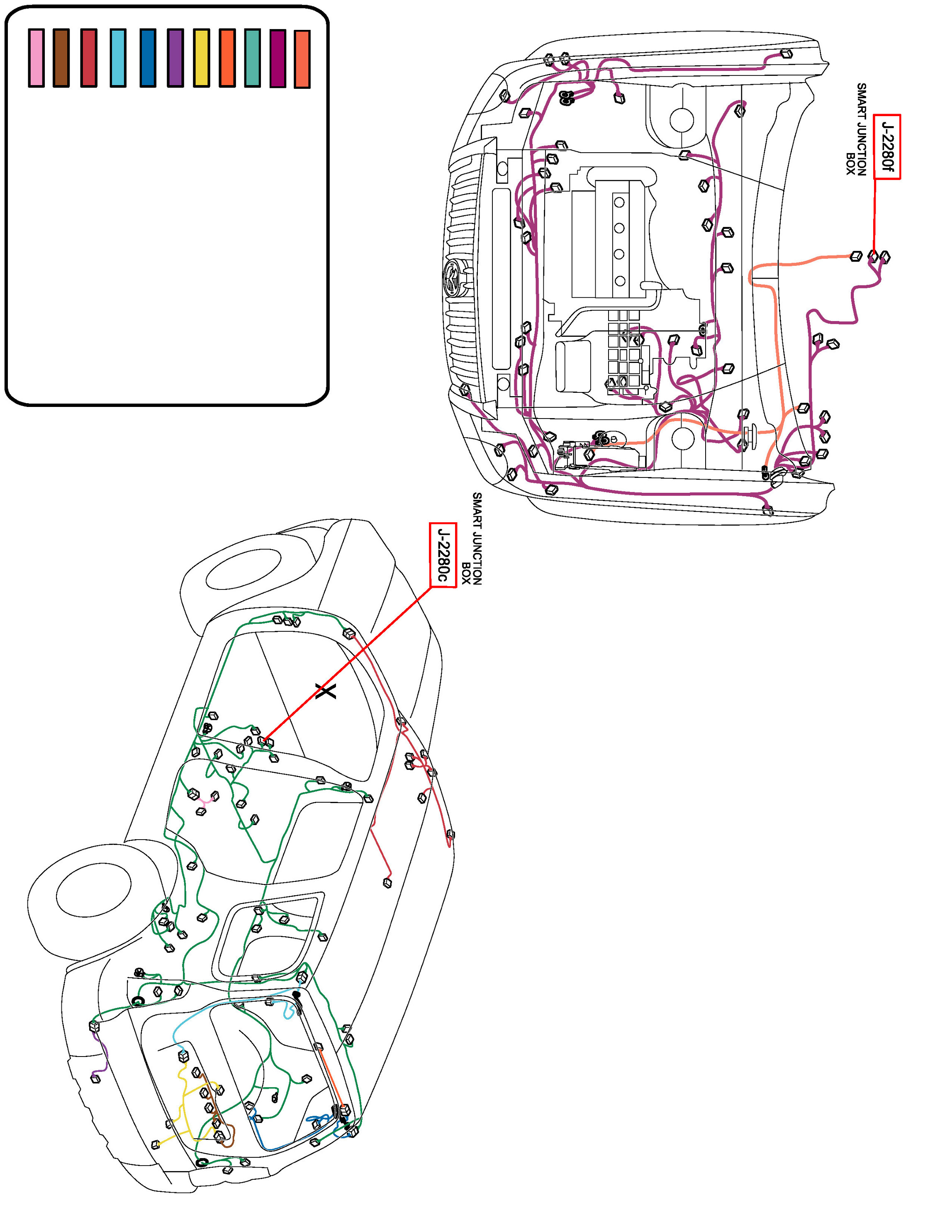

Routing View:
