Control Module: Service and Repair

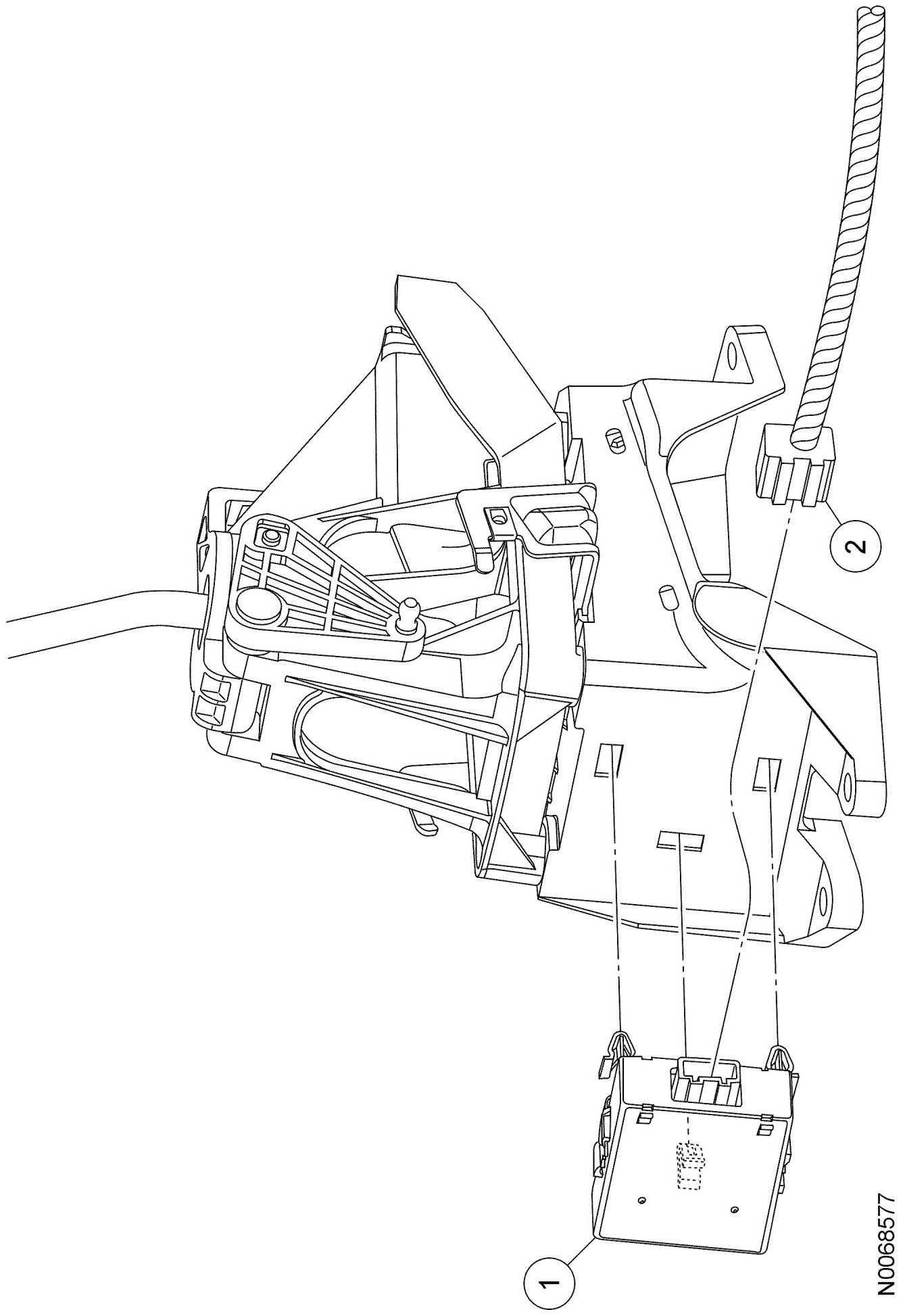

4X4 CONTROL MODULE REMOVAL/INSTALLATION









1. Remove the floor console. See Service and Repair.

2. Disconnect the electrical connector.

3. Lift upward on the module to release the fasteners from the shifter base. Remove the 4X4 control module.

4. To install, reverse the removal procedure.
