Keyless Entry Receiver: Service and Repair

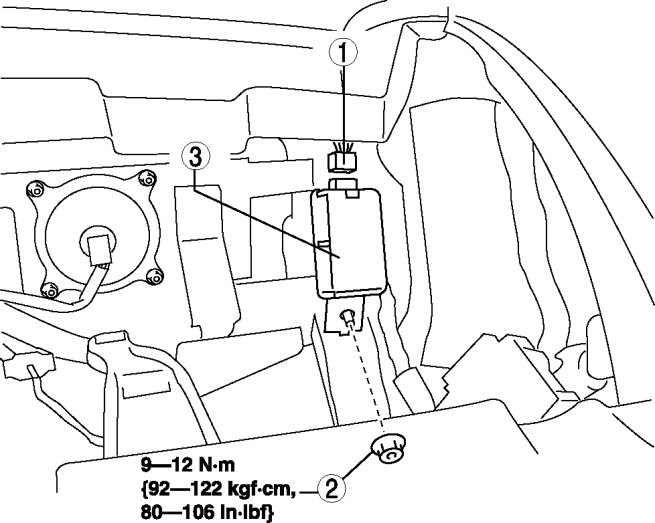

KEYLESS RECEIVER REMOVAL/INSTALLATION [KEYLESS ENTRY SYSTEM]

1. Disconnect the negative battery cable.

2. Remove the glove compartment. Service and Repair

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
