Splash Guard: Service and Repair

SPLASH SHIELD REMOVAL/INSTALLATION

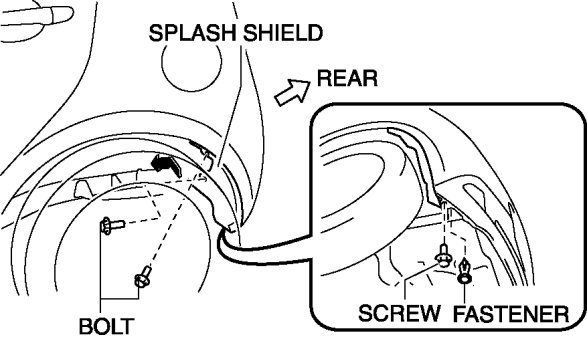

1. Remove the bolts, screw and fastener, then remove the splash shield in the direction of the arrow shown in the figure.






2. Install in the reverse order of removal.
