Brake Fluid Level Sensor/Switch: Testing and Inspection

BRAKE FLUID LEVEL SENSOR INSPECTION

1. Disconnect the connector from the brake fluid level sensor.

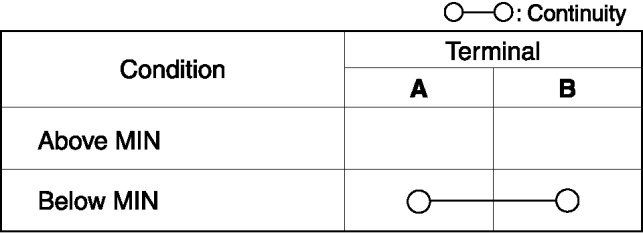

2. Inspect for continuity between the brake fluid level sensor terminals.

- If not as indicated in the table, replace the Master cylinder component.
