Cruise Control Switch: Testing and Inspection

CRUISE CONTROL SWITCH INSPECTION [MZR 1.5]

1. Switch the ignition to off.

2. Disconnect the negative battery cable and wait for 1 min or more.

3. Remove the driver-side air bag module. Driver-Side Air Bag Module Removal/Installation

4. Disconnect the clock spring connector (part wiring harness-side).

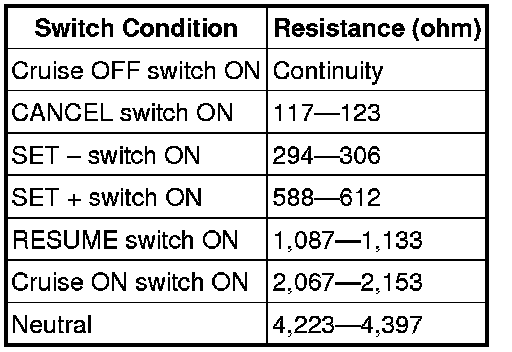

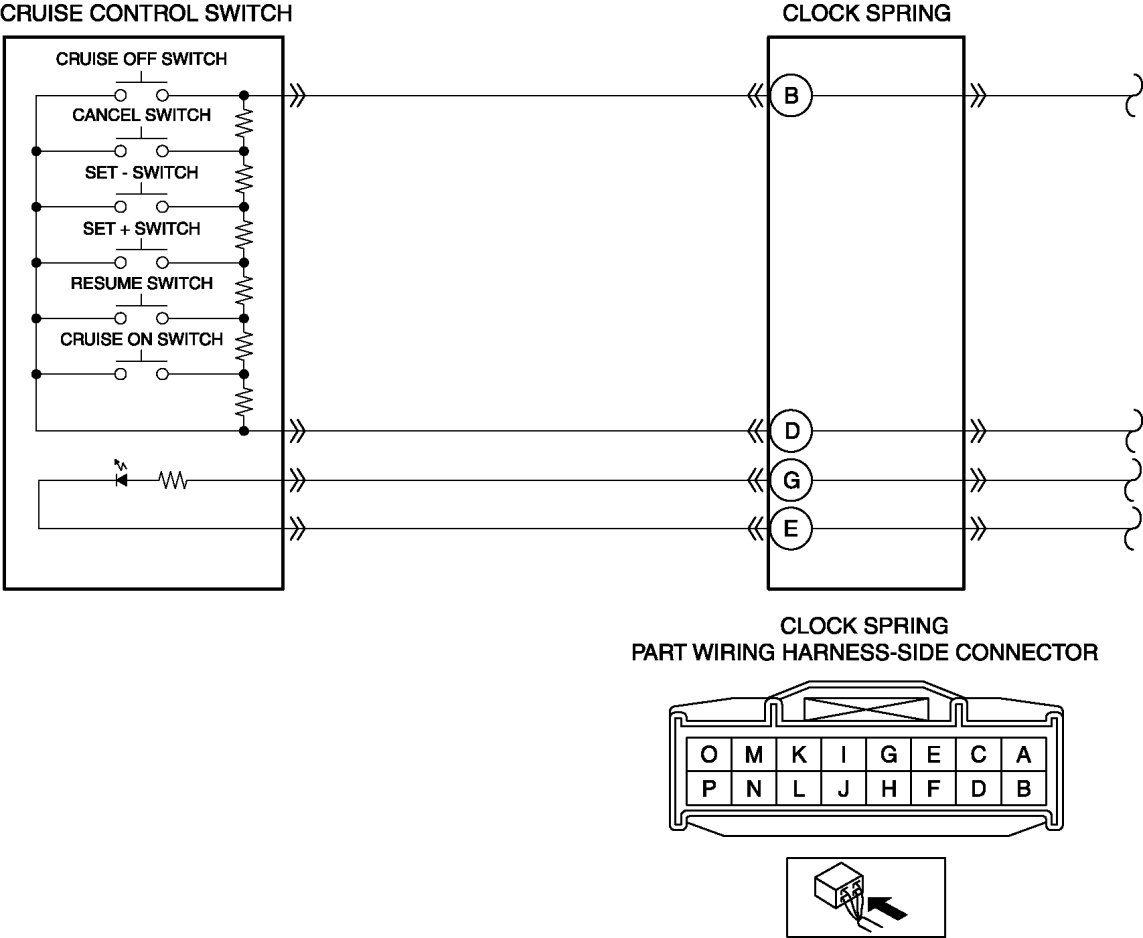

5. Inspect for resistance and continuity between clock spring terminals B and D (part wiring harness-side) using a tester.






- If not as specified, replace the audio control switch. Service and Repair

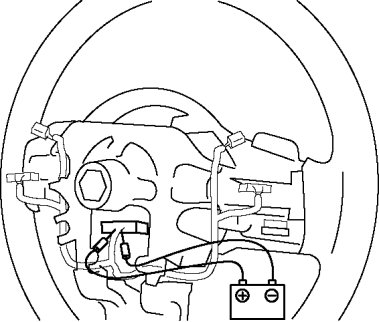

6. Apply battery positive voltage to clock spring terminal G (part wiring harness-side) and terminal E (part wiring harness-side) to ground.






7. Verify that the LED illuminates.

- If the LED does not illuminate, replace the audio control switch. Service and Repair
