Instrument Panel Harness-Clock Spring
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

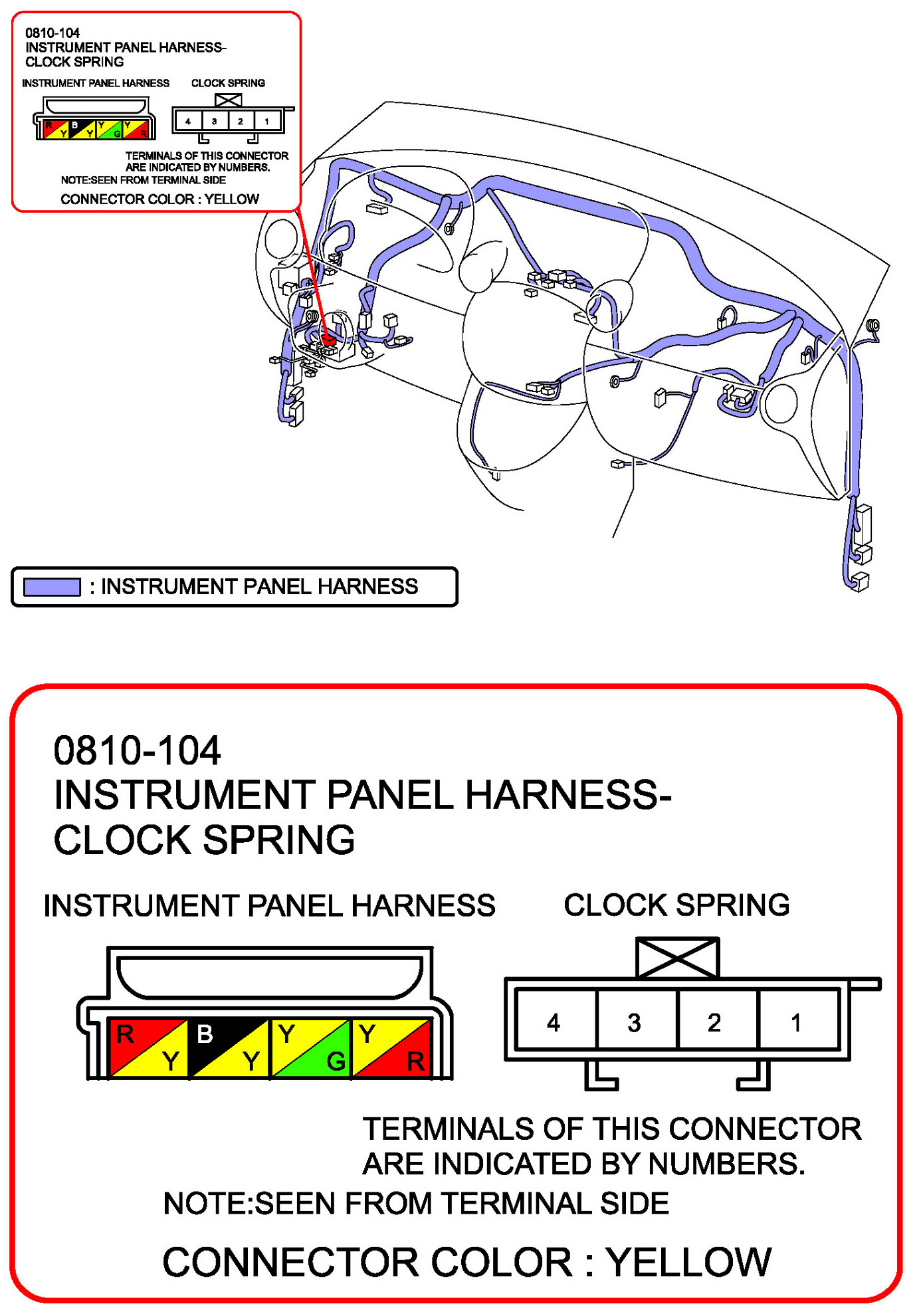

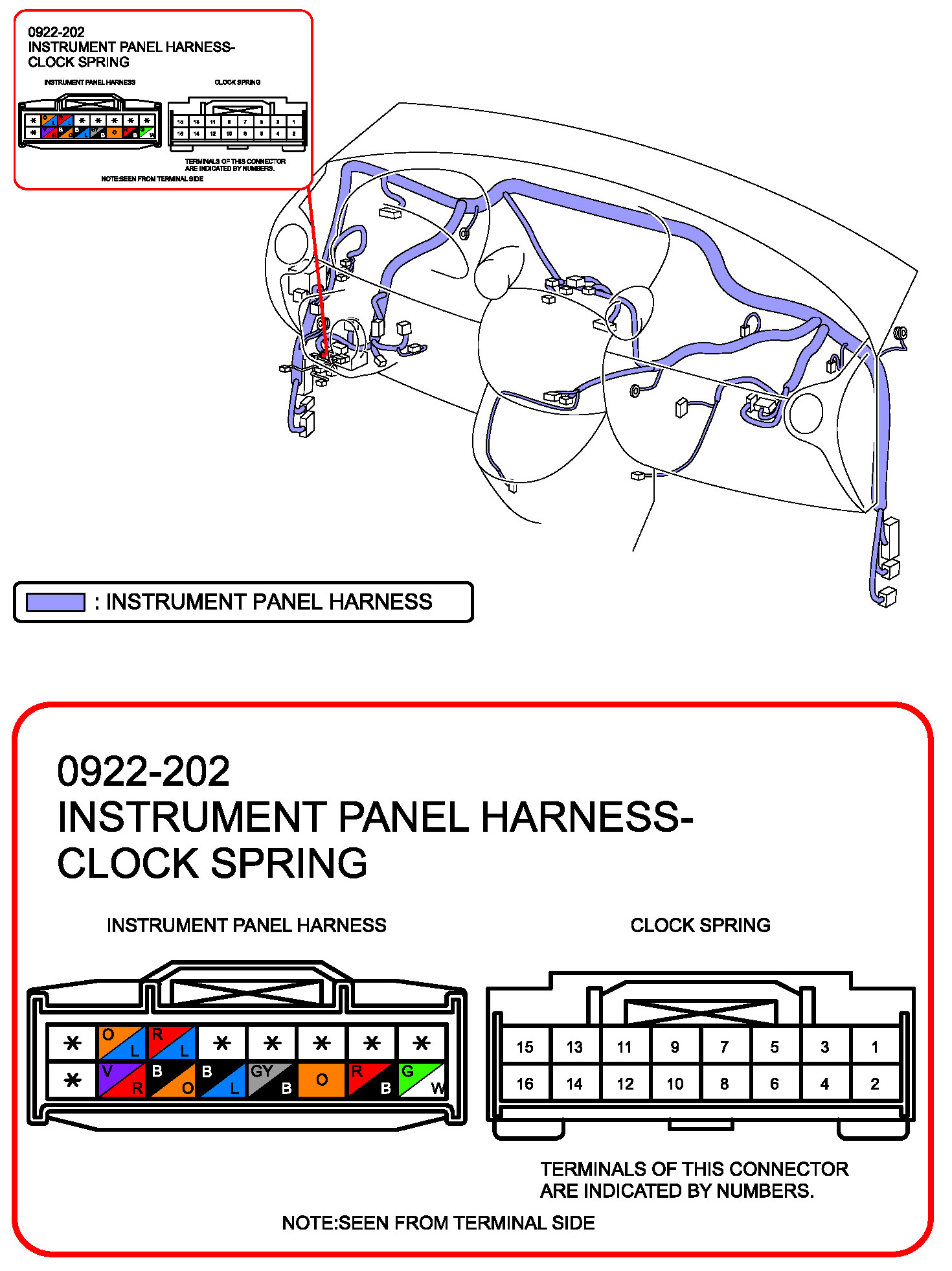

Instrument Panel Harness-Clock Spring
