Compressor Clutch: Testing and Inspection

MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER]

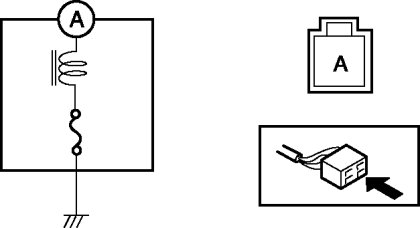

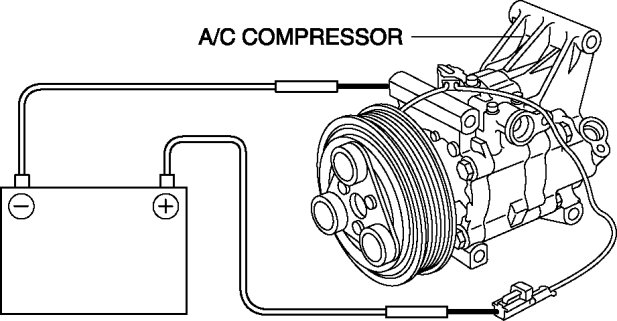

1. Connect battery positive voltage to terminal A of magnetic clutch and ground to A/C compressor body.











2. Verify that the magnetic clutch operates.

- If there is any malfunction, replace the stator and thermal protector.
