Identification Number Locations





IDENTIFICATION NUMBER LOCATIONS

Vehicle Identification Number (VIN)

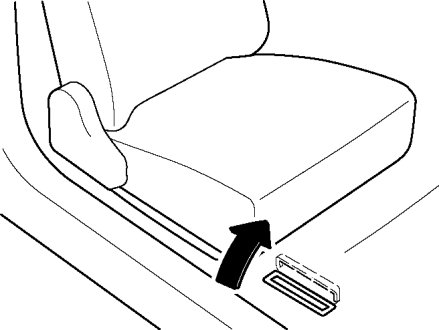

- The VIN marking position is located on the floor on the front passenger-side.





- If the VIN plate is adhered to the dashboard, it is located in the position shown in the figure.

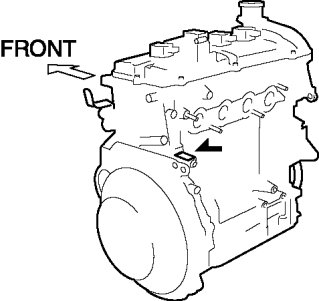

Engine Identification Number
