Timing Component Alignment Marks: Locations

Timing Component Alignment Marks [MZR 1.5]

Timing Chain Removal Note

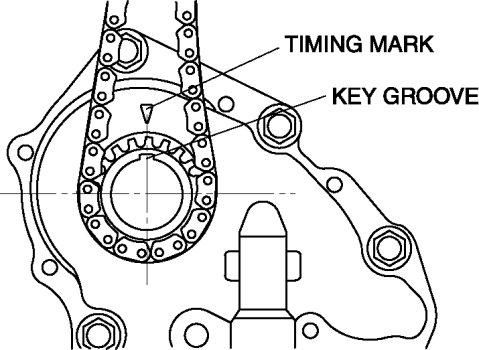

1. Rotate the crankshaft clockwise and align the key groove of the crankshaft sprocket to the timing mark, and then position the No.1 cylinder to TDC.

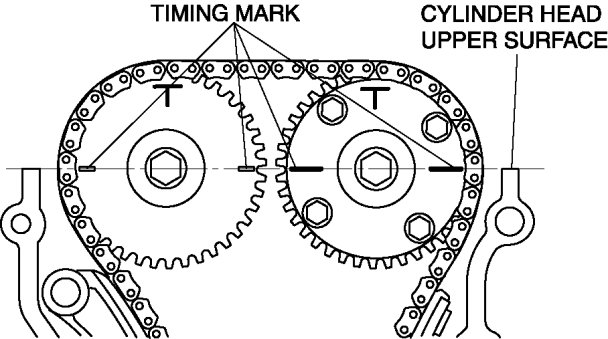

2. Align the timing marks on the camshaft sprockets so that they form a straight line in alignment with the upper horizontal surface of the cylinder head.






Timing Chain Installation Note

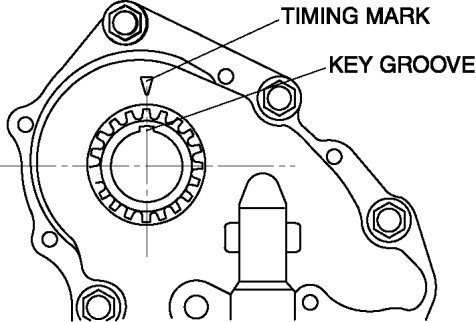

1. Align the key groove of the crank sprocket to the timing mark, and then position the No.1 cylinder to TDC.

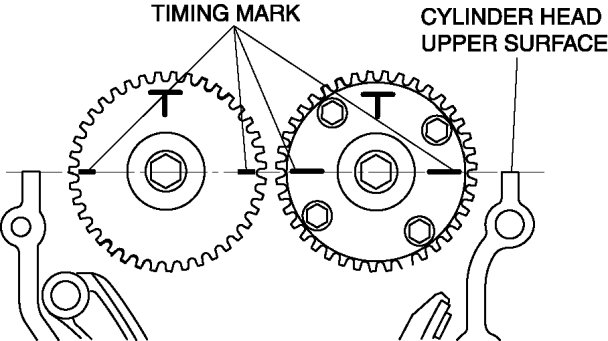

2. Align the timing marks on the camshaft sprockets so that they form a straight line in alignment with the upper horizontal surface of the cylinder head.
