Relay Box: Testing and Inspection

RELAY INSPECTION

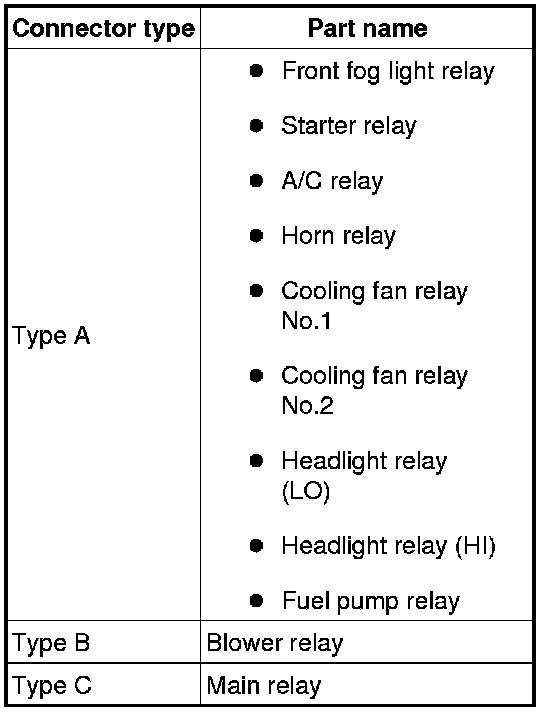

Relay Type

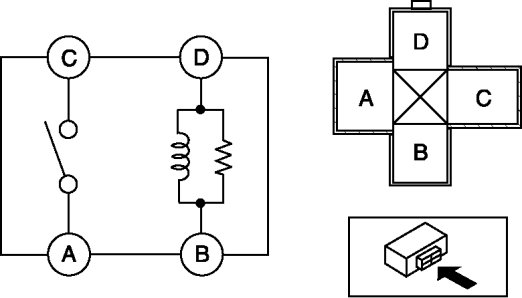

Type A

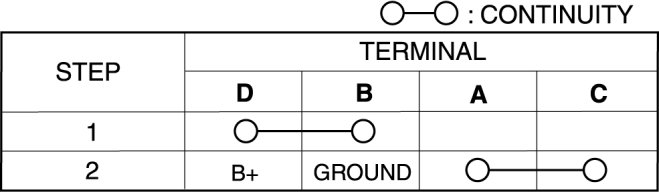

1. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the relay.

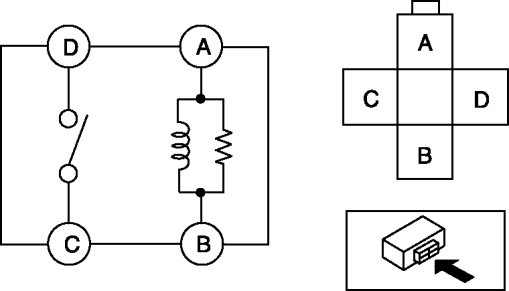

Type B

1. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the relay.





Type C

1. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the relay.
