Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [MZR 1.5]

CAUTION:
- Neither the MAF nor the IAT sensor cannot be removed as a single unit. When replacing the MAF or IAT sensor, replace it together with the other sensor as a single unit.

1. Disconnect the negative battery cable.

2. Disconnect the MAF/IAT sensor connector.

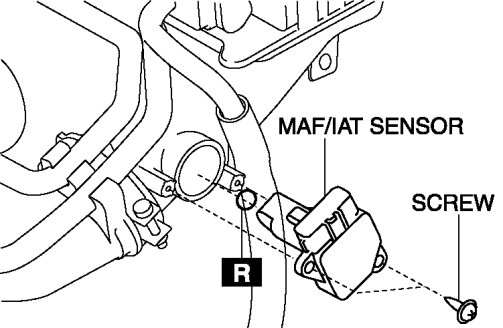

3. Remove the MAF/IAT sensor.






4. Install in the reverse order of removal.
