Knock Sensor: Service and Repair

KNOCK SENSOR (KS) REMOVAL/INSTALLATION [MZR 1.5]

1. Disconnect the negative battery cable.

2. Remove the intake manifold. Service and Repair

3. Disconnect the KS connector.

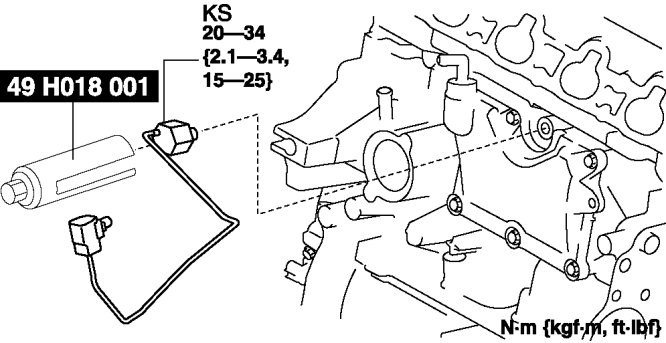

4. Remove the KS using the SST.






5. Install in the reverse order of removal.
