Manifold Pressure/Vacuum Sensor: Service and Repair

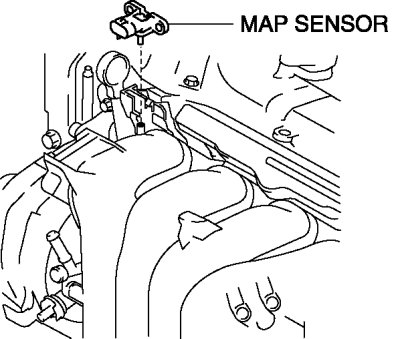

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [MZR 1.5]

1. Disconnect the negative battery cable.

2. Remove the fresh-air duct and the air cleaner as a single unit. Service and Repair

3. Disconnect the MAP sensor connector.

4. Remove the MAP sensor






5. Install in the reverse order of removal.
