System Specifications

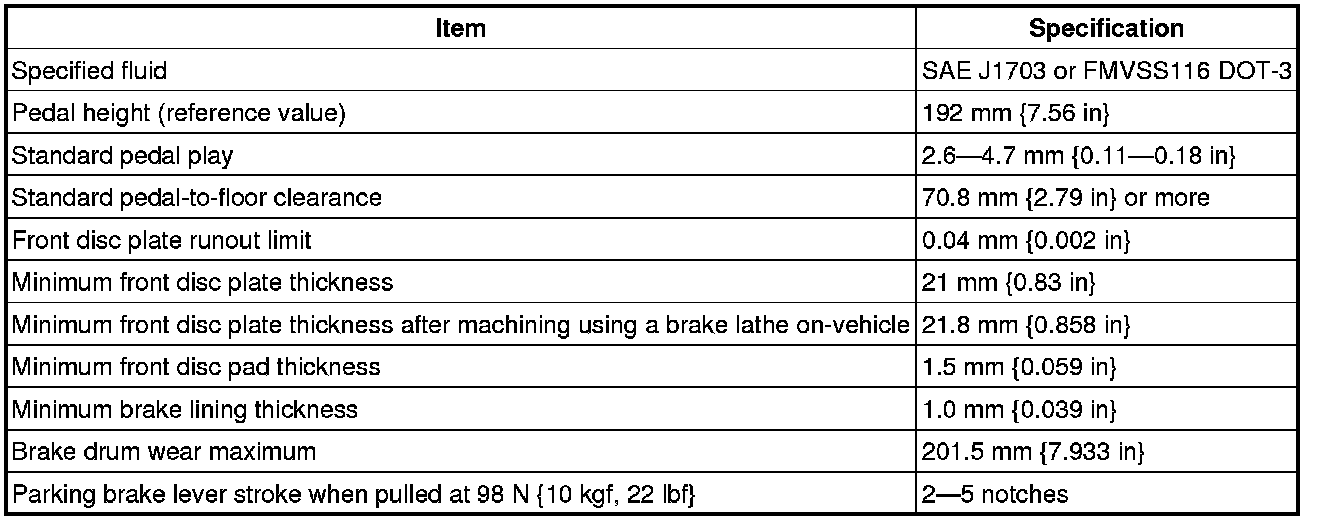

BRAKES TECHNICAL DATA

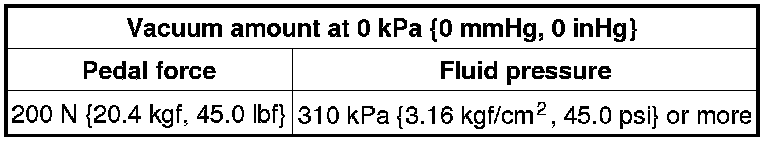

Standard power brake unit non-servo operation

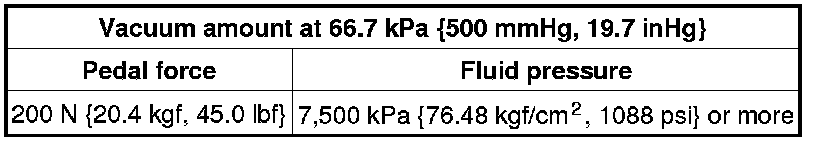

Standard power brake unit servo operation
