Timing Cover
Timing Cover

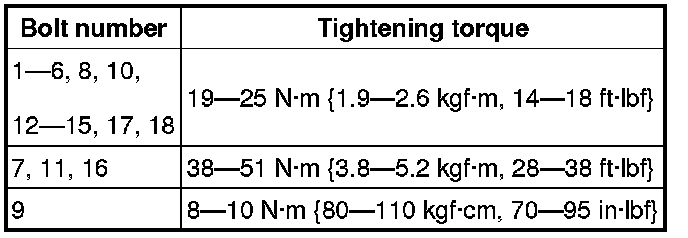

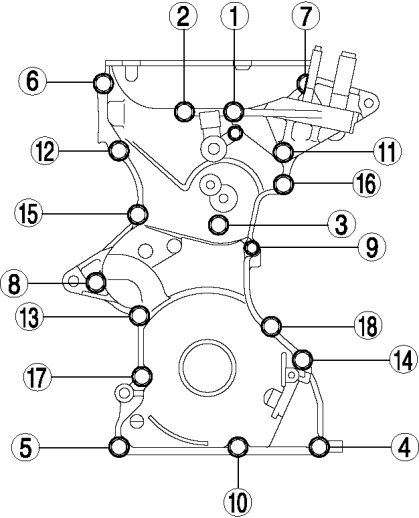

Tighten the engine front cover installation bolts in the order shown in the figure.
