System Wiring Diagram

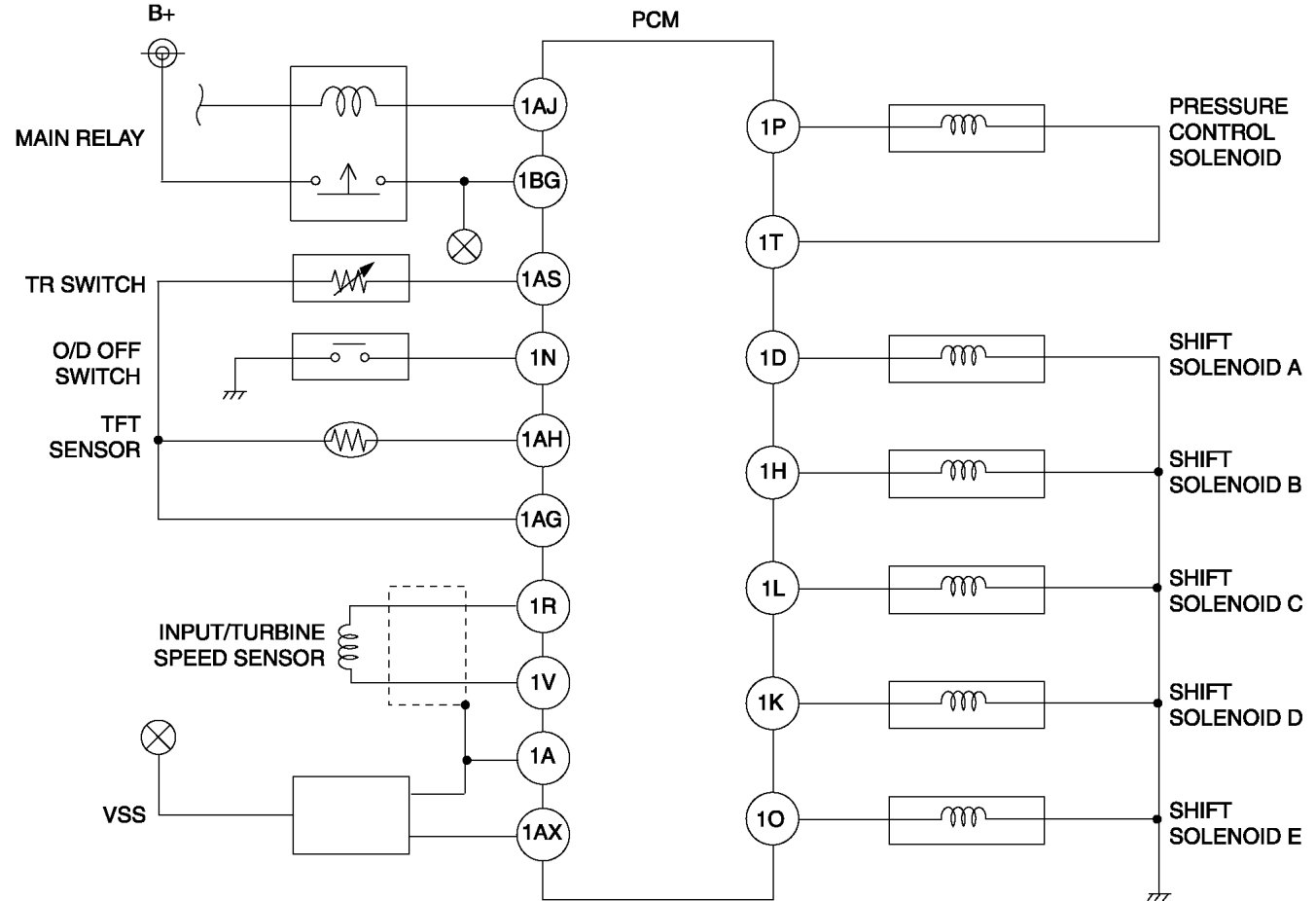

ON-BOARD DIAGNOSTIC SYSTEM WIRING DIAGRAM [FN4A-EL]

NOTE:
- Only the transaxle-related information is described.
