SAE Standards

SAE STANDARDS

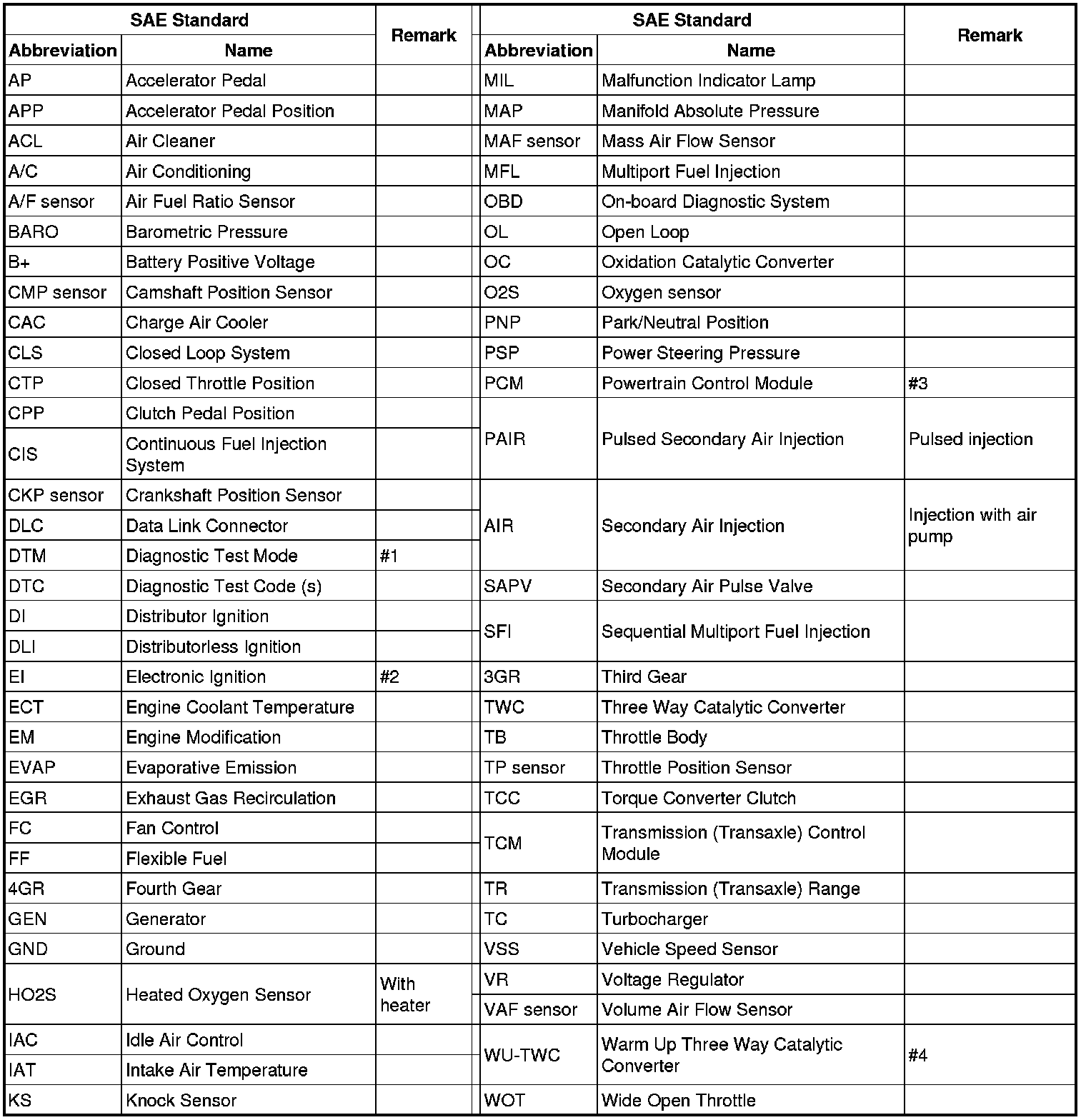

- In accordance with new regulations, SAE (Society of Automotive Engineers) standard names and abbreviations are now used in this information. The table below lists the names and abbreviations that have been used in Mazda manuals up to now and their SAE equivalents.





- #1: Diagnostic trouble codes depend on the diagnostic test mode.
- #2: Controlled by the PCM
- #3: Device that controls engine and powertrain
- #4: Directly connected to exhaust manifold
