Pinout Values and Diagnostic Parameters

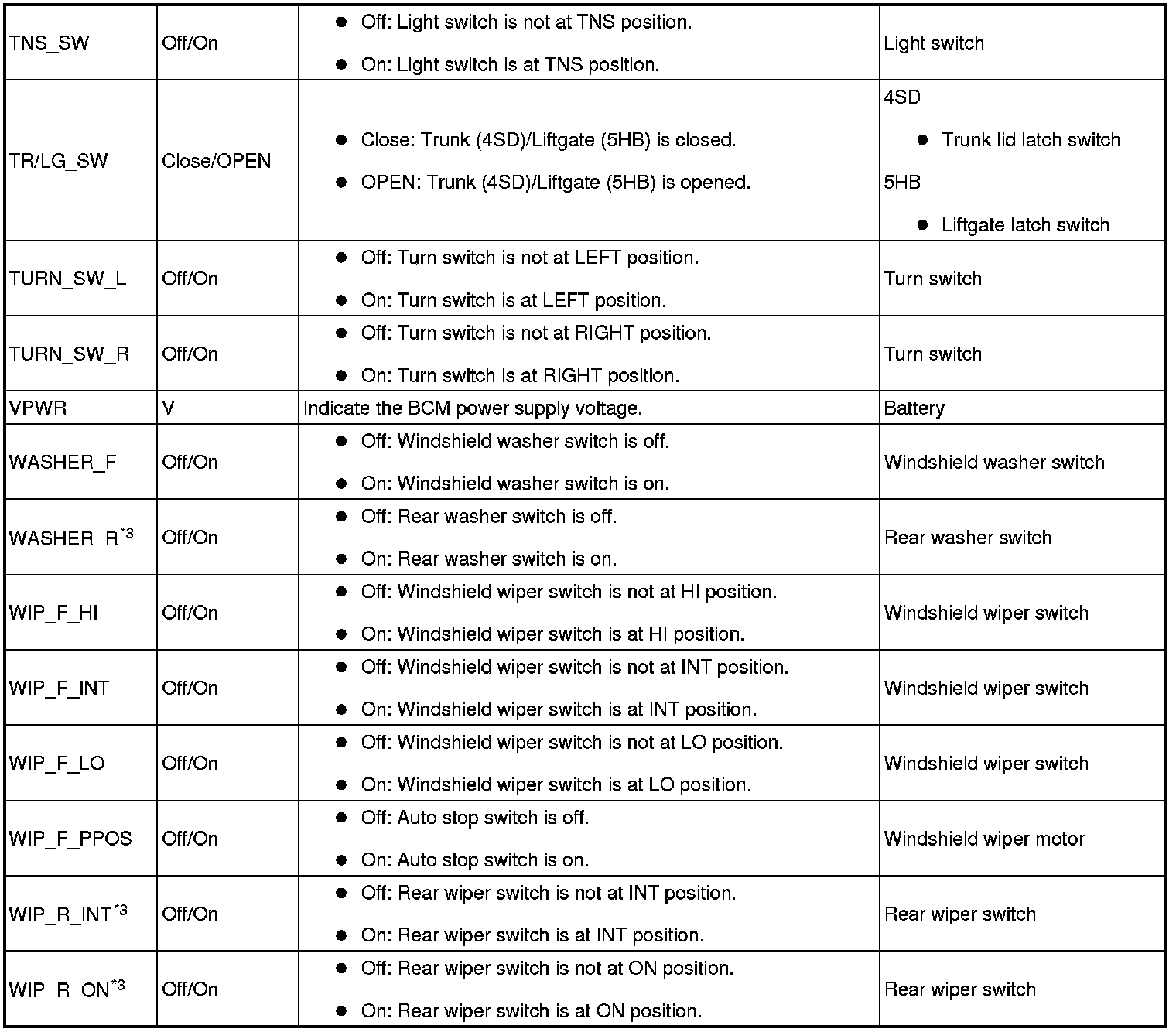

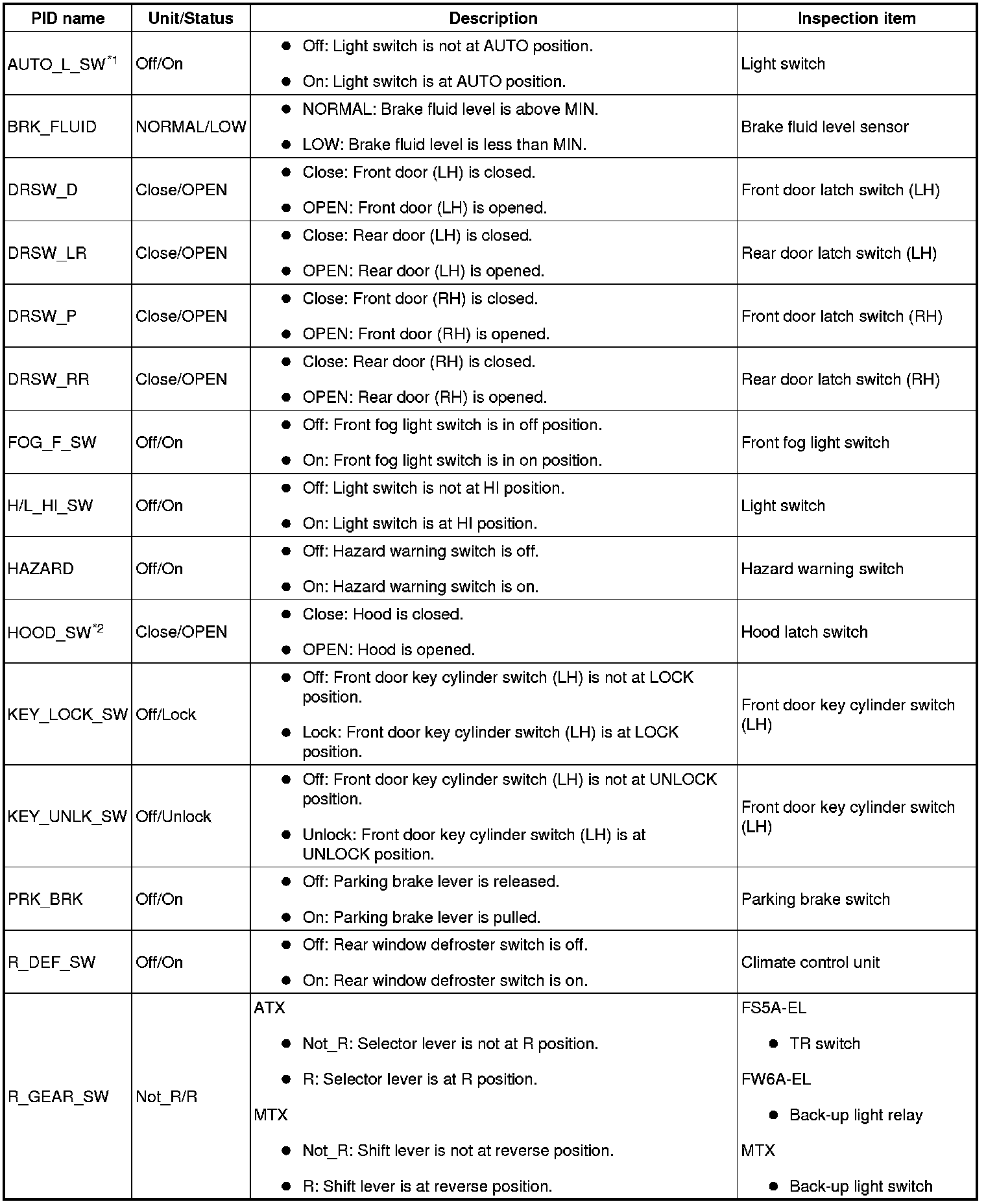

PID/DATA MONITOR TABLE [BCM]
*1
Vehicles with auto light system
*2
Vehicles with theft-deterrent system
*3
5HB
PID/DATA MONITOR TABLE [BCM]
*1
Vehicles with auto light system
*2
Vehicles with theft-deterrent system
*3
5HB
