Keyless Entry Receiver: Service and Repair

KEYLESS RECEIVER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Front scuff plate (LH) Front Scuff Plate Removal/Installation

b. Front side trim (LH) Front Side Trim Removal/Installation

c. Upper panel Upper Panel Removal/Installation

d. Shift knob (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G35M-R] Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

e. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

f. Shift panel Shift Panel Removal/Installation

g. Side wall Side Wall Removal/Installation

h. Console Console Removal/Installation

3. Set the hood release lever out of the way. Service and Repair

4. Remove the lower panel. (driver-side) Lower Panel Removal/Installation

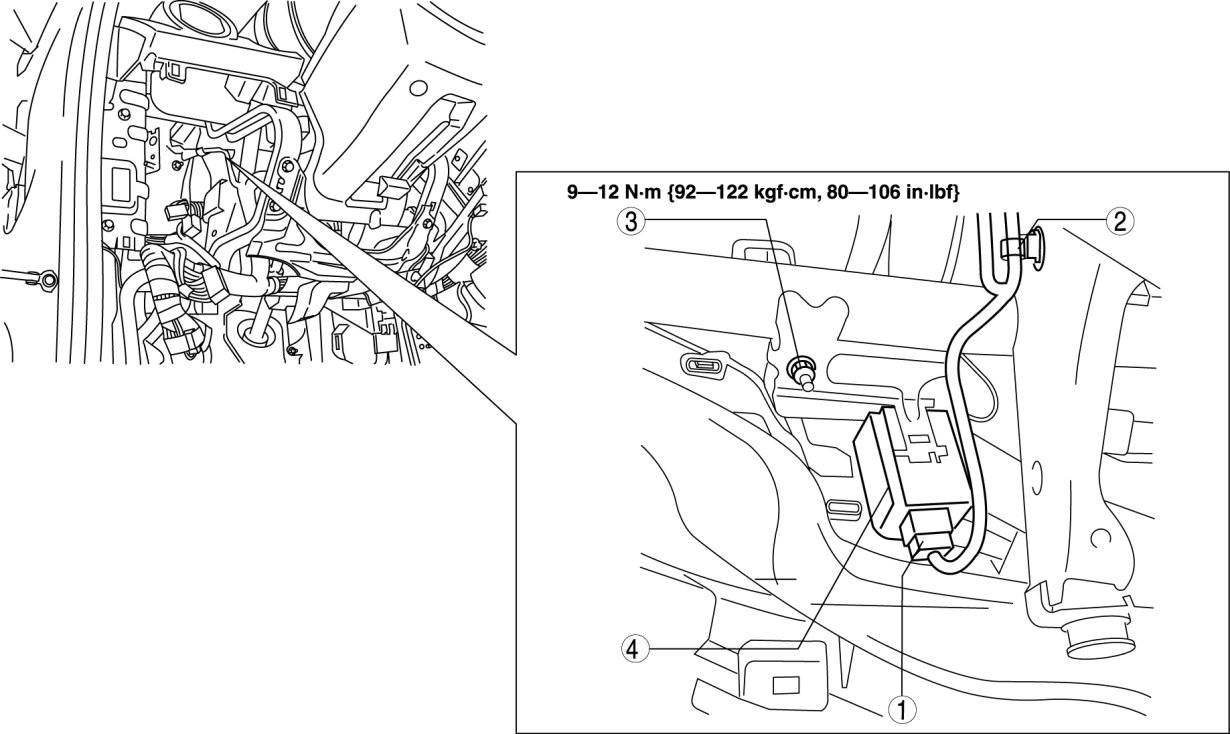

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.
