Keyless Entry: Locations





SECURITY AND LOCKS LOCATION INDEX

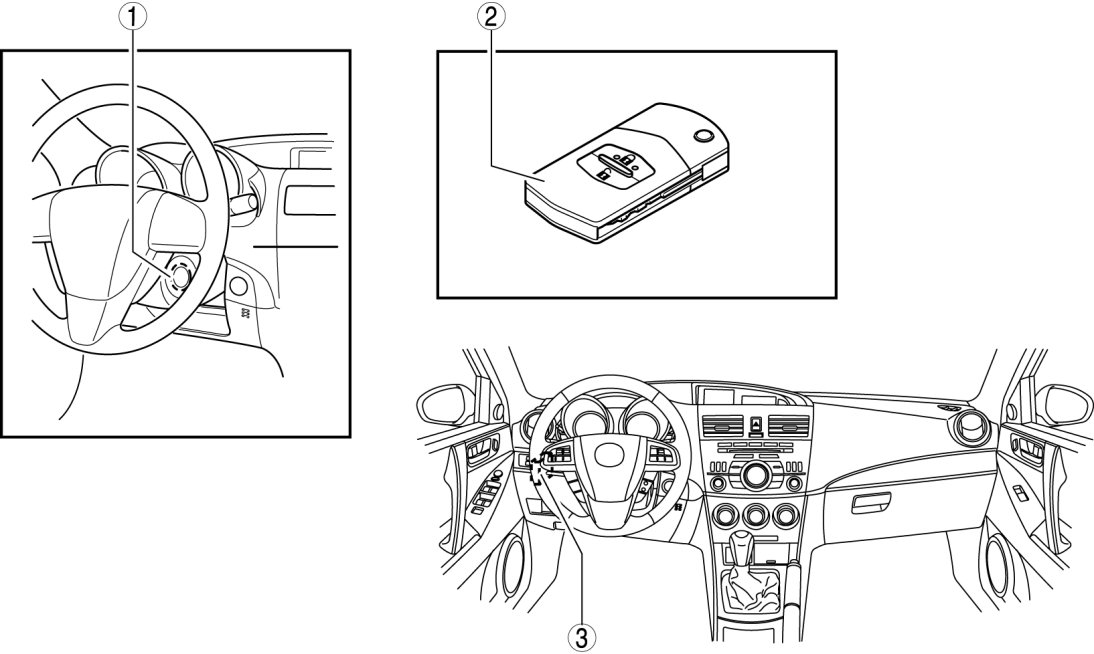

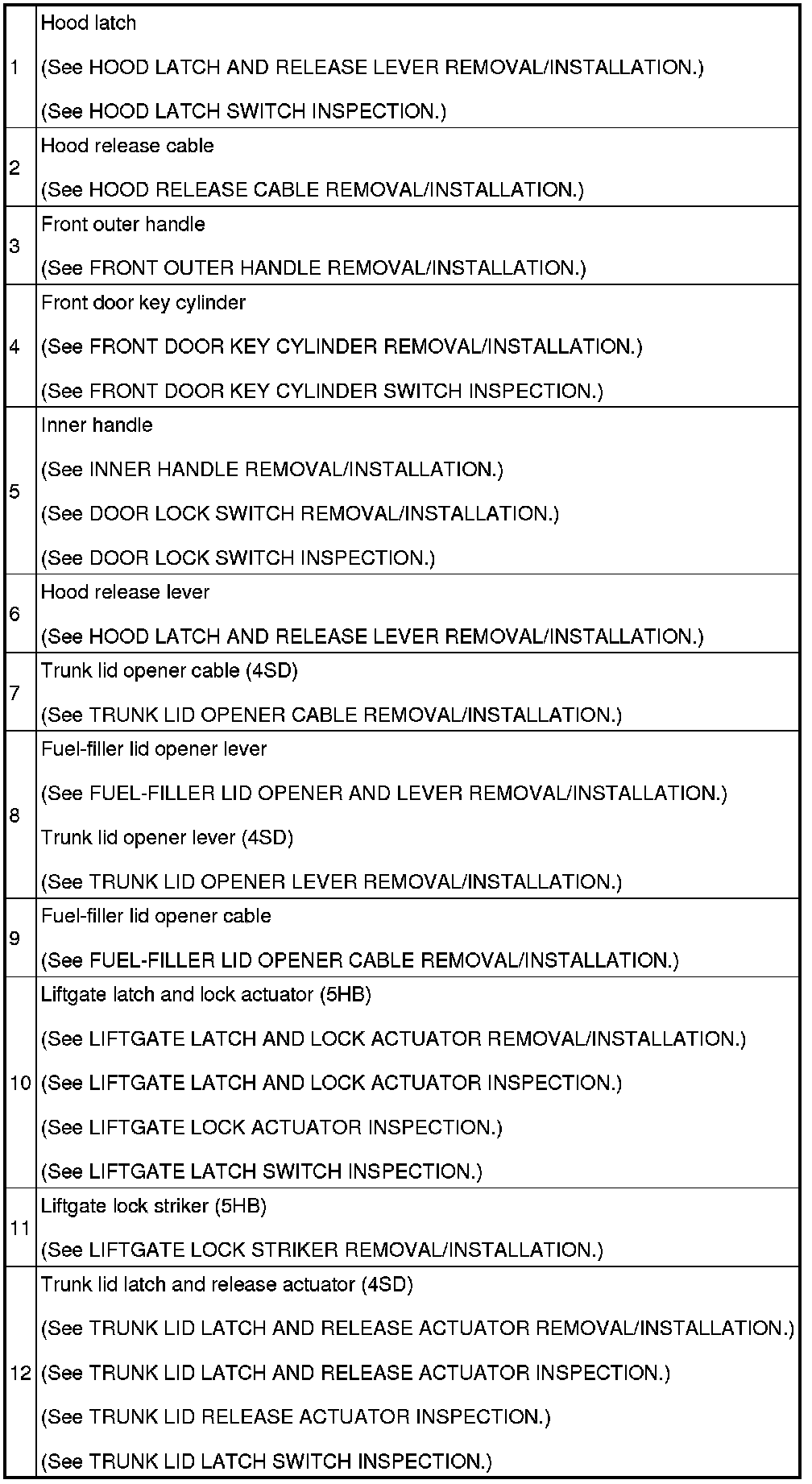

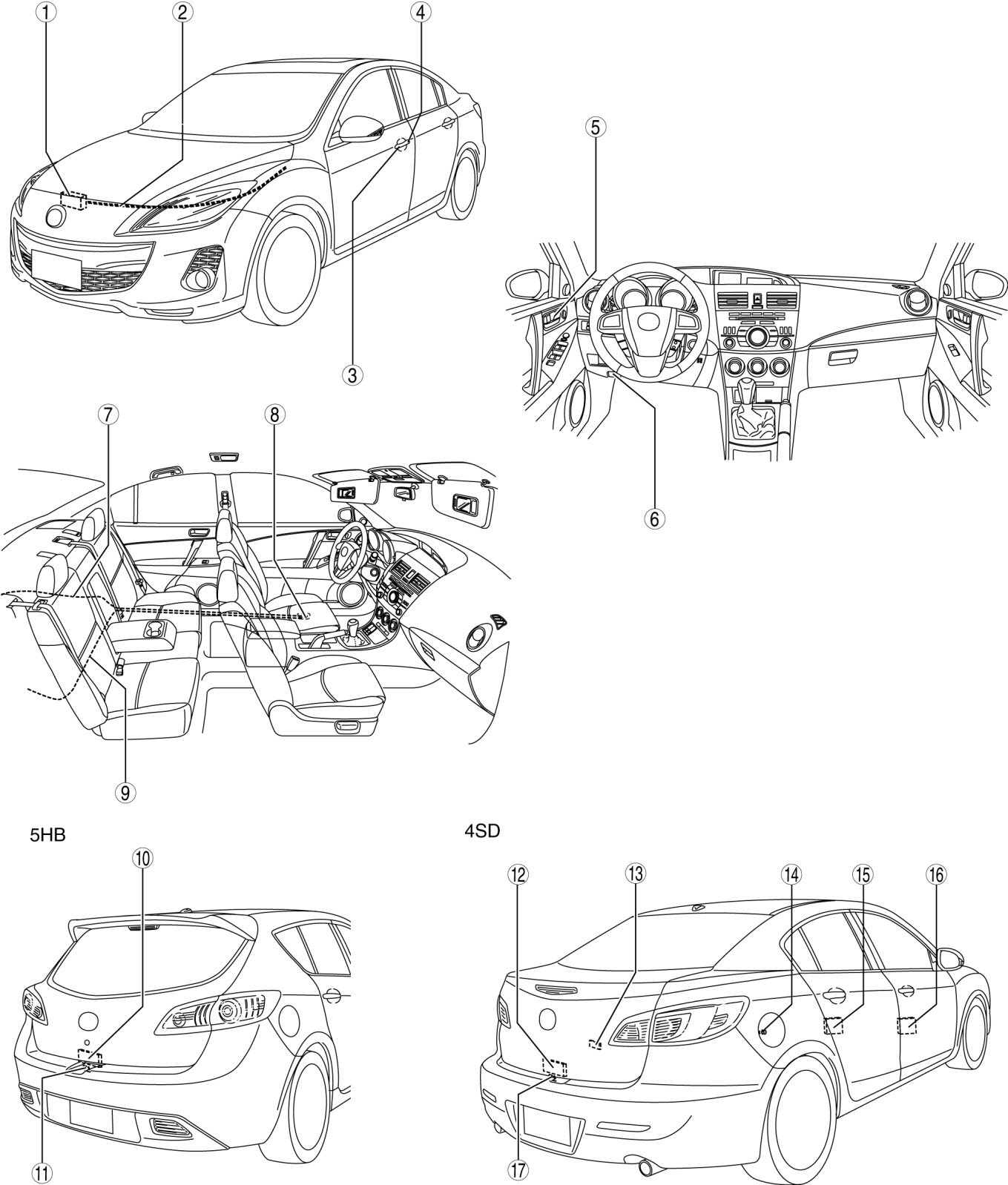

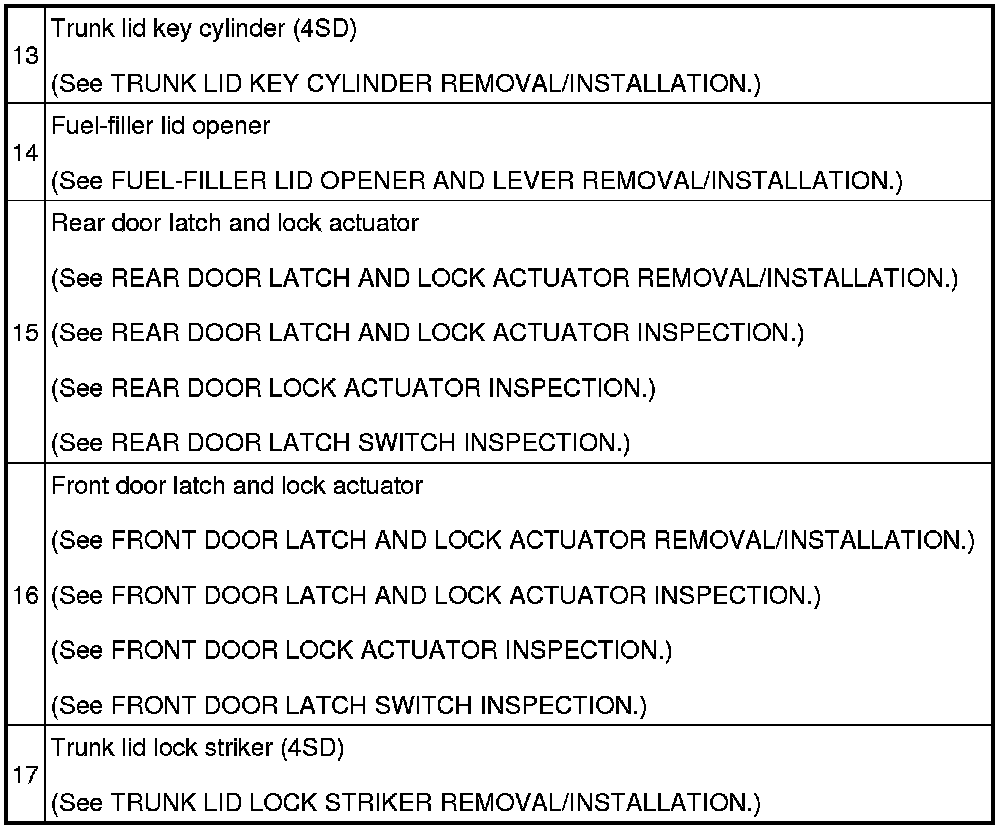

Locks and Openers

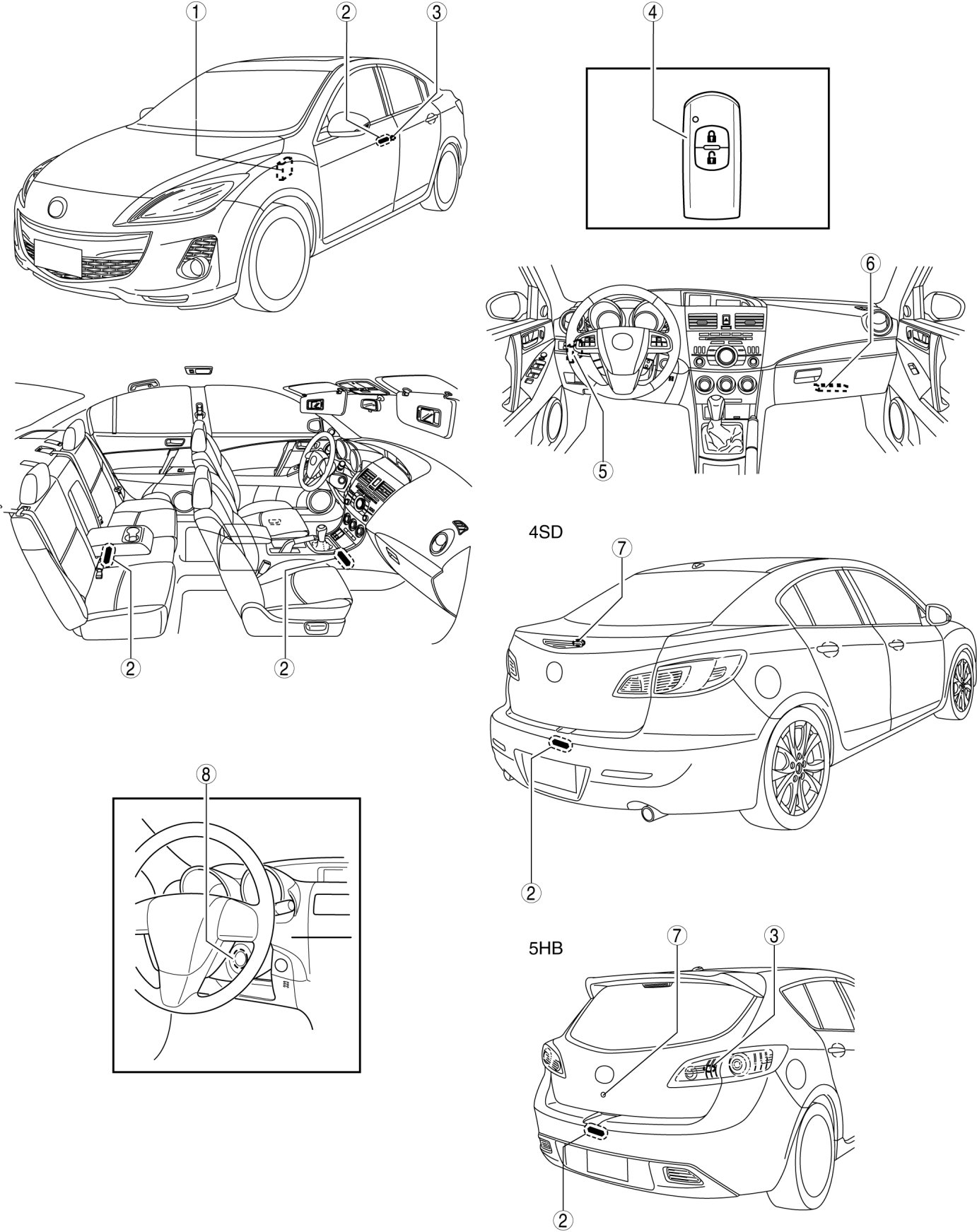

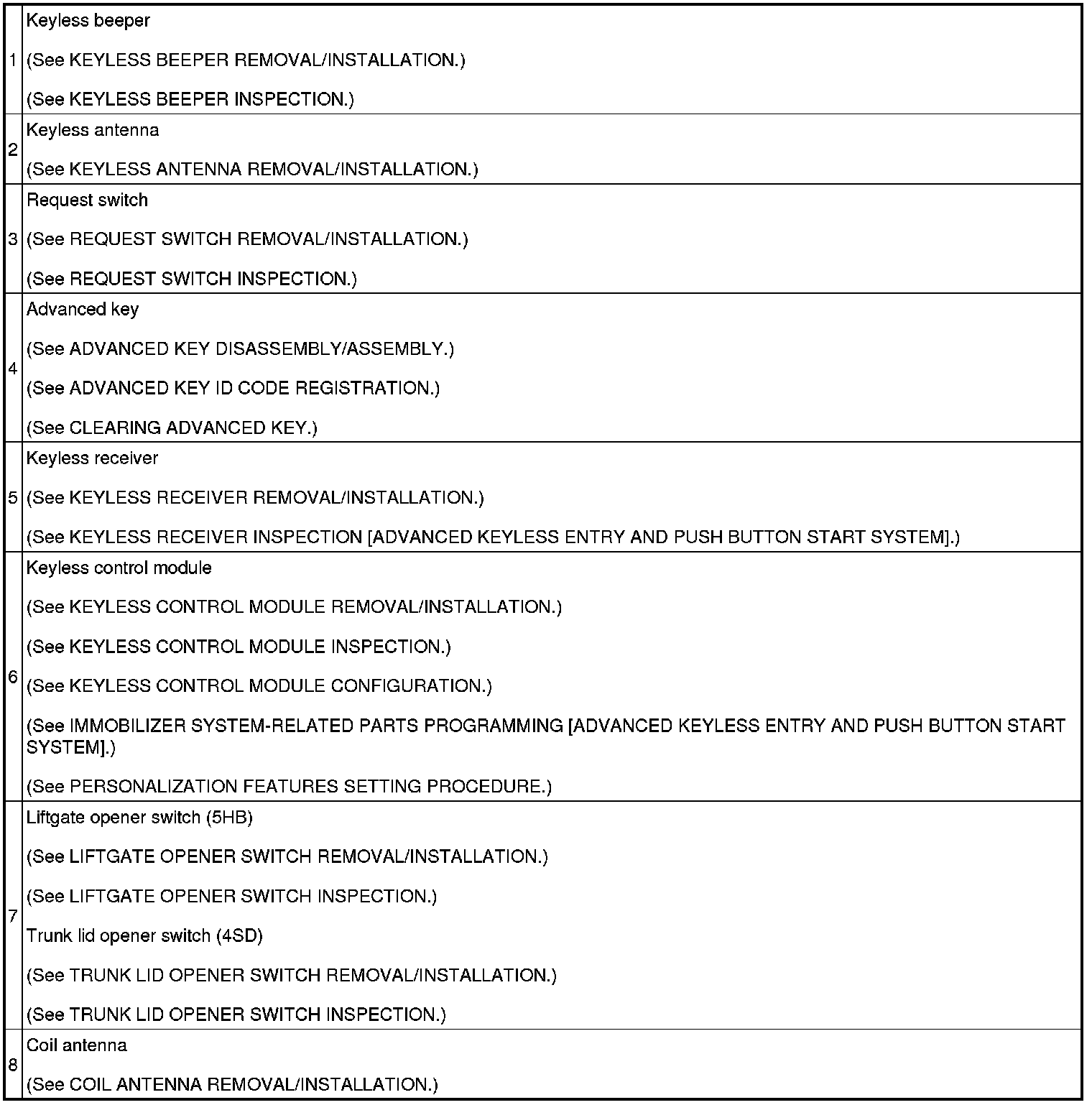

Advanced Keyless Entry And Push Button Start System/Immobilizer System

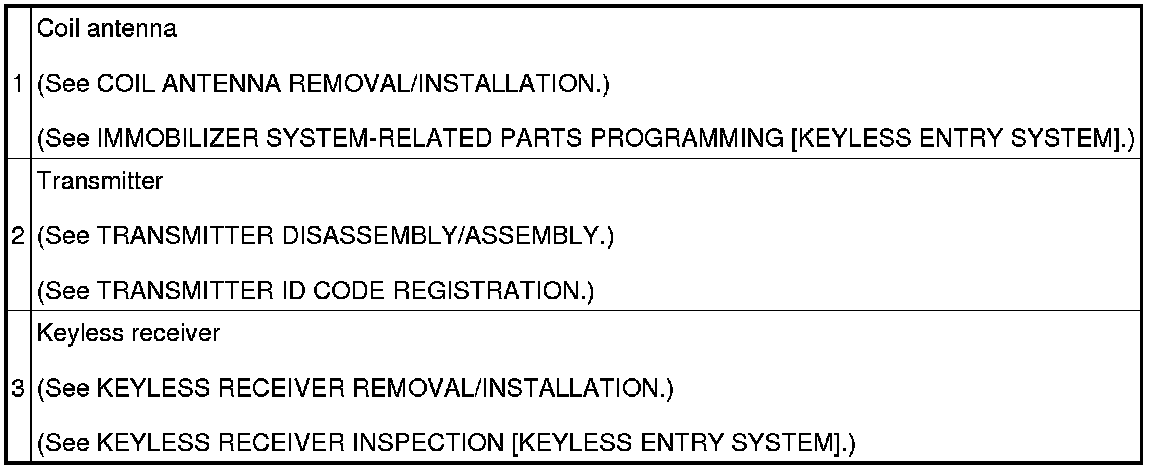

Keyless Entry System/Immobilizer System
