On-Board Diagnostic Wiring Diagram (Advanced Keyless Entry And Push Button Start System)

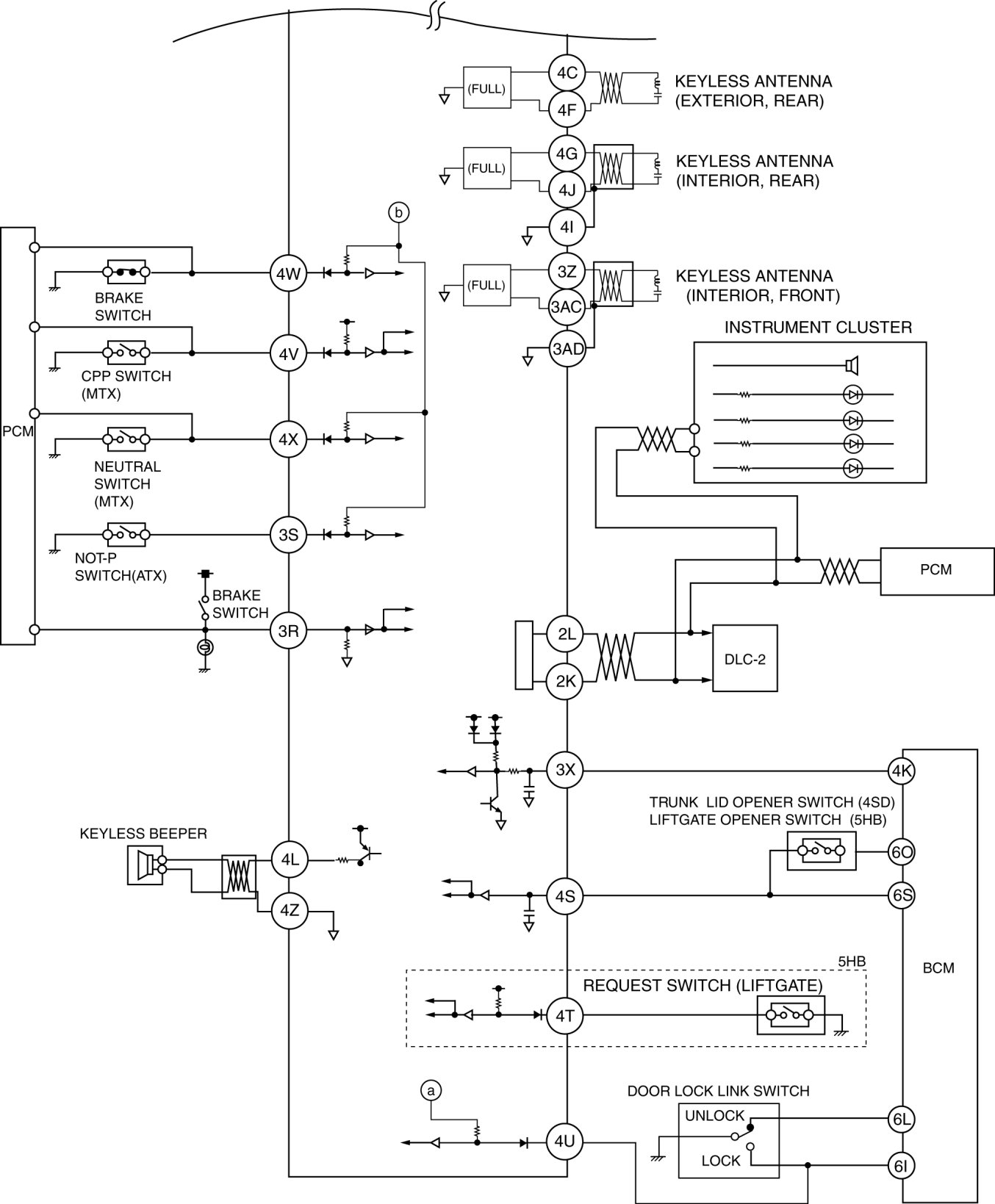

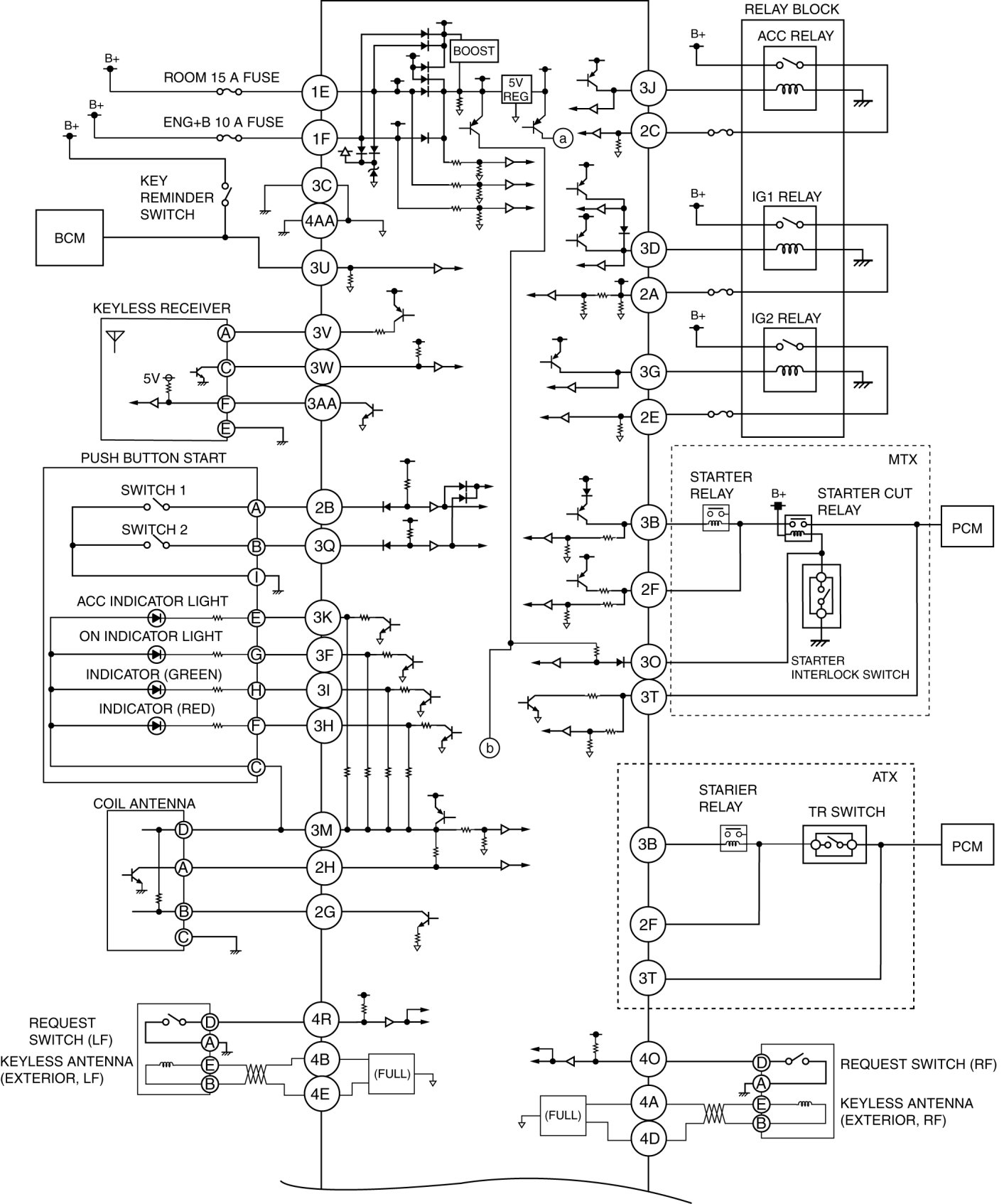

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
