Full-Auto Air Conditioner

CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Shift lever knob (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G35M-R] Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

c. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

d. Shift panel Shift Panel Removal/Installation

e. Side wall Side Wall Removal/Installation

f. Console Console Removal/Installation

g. Center panel Center Panel Removal/Installation

h. Audio unit Audio Unit Removal/Installation

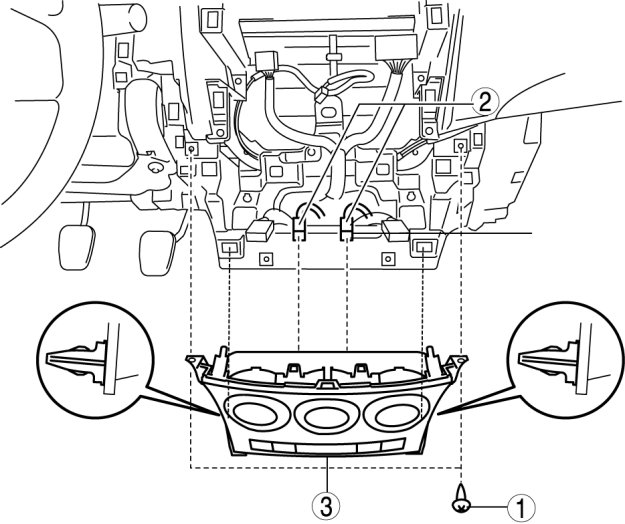

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
