A/C Operation Check Mode Table

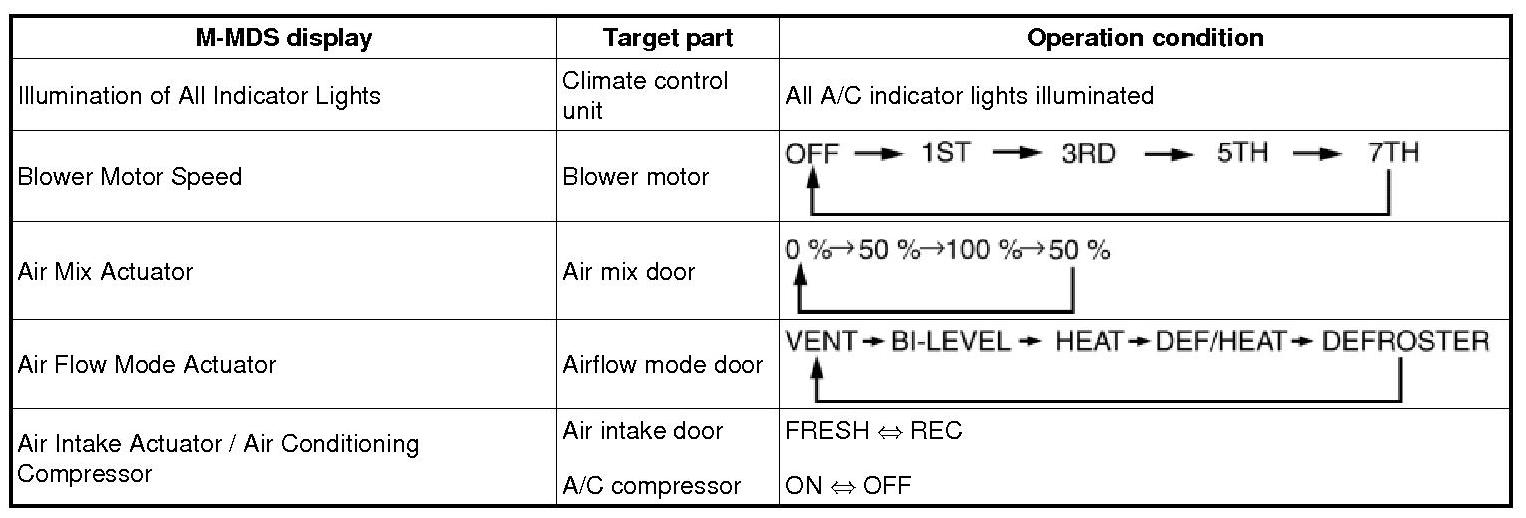

A/C OPERATION CHECK MODE TABLE





*
Shown on the information display (at the set temperature display) according to each M-MDS display.
