Lighting and Horns: Application and ID

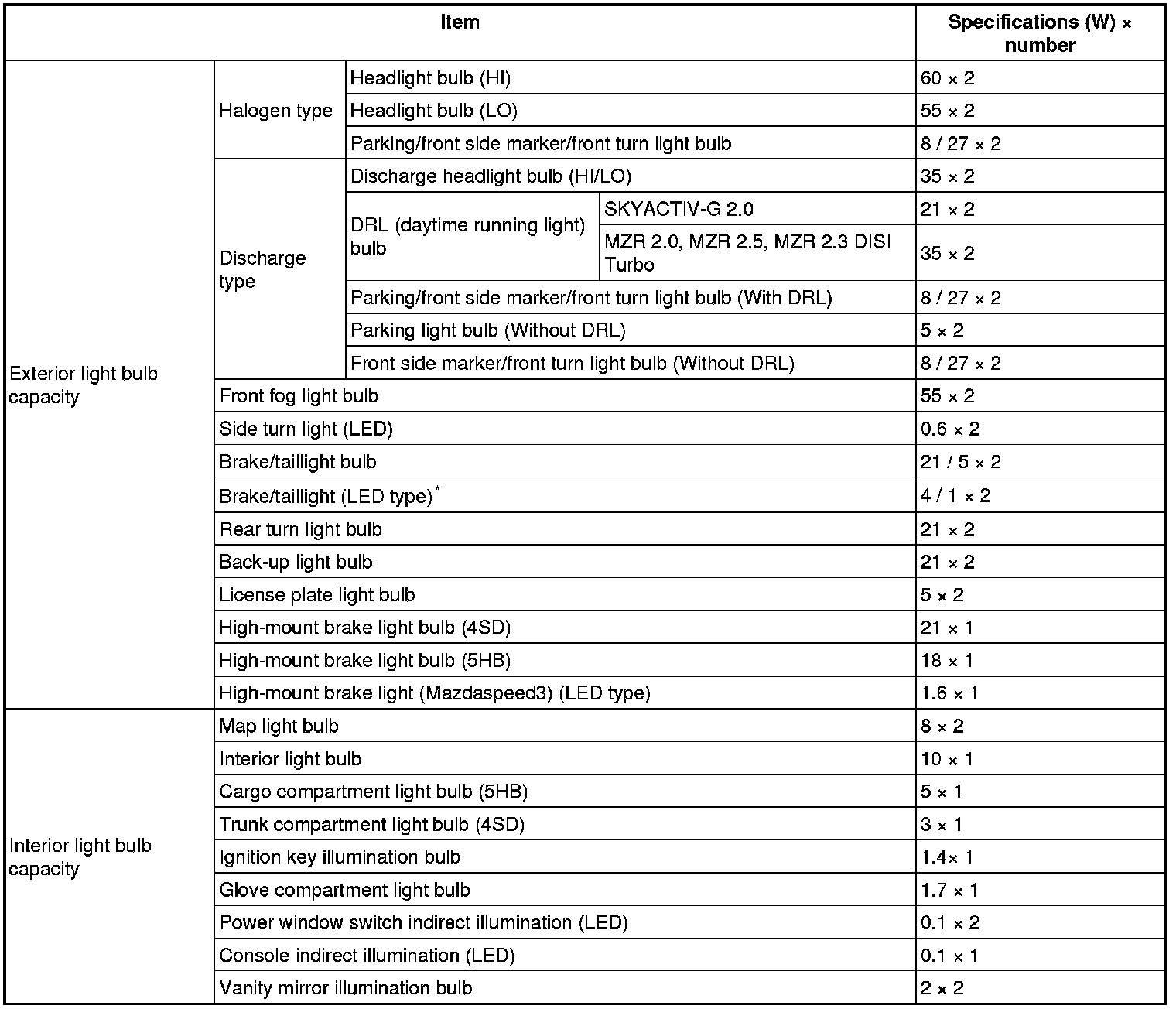

BODY AND ACCESSORIES TECHNICAL DATA





*
The brake/taillight (LED type) cannot be replaced as a single unit because it is integrated with the rear combination light. Rear combination light must be replaced.
