Cargo Lamp: Service and Repair

CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

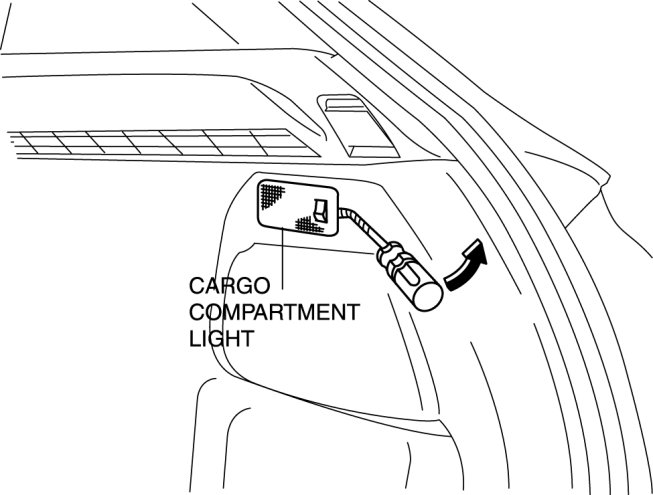

2. Insert a tape-wrapped fastener remover into the service hole and pry with the screwdriver in the direction shown by the arrow to remove the cargo compartment light.

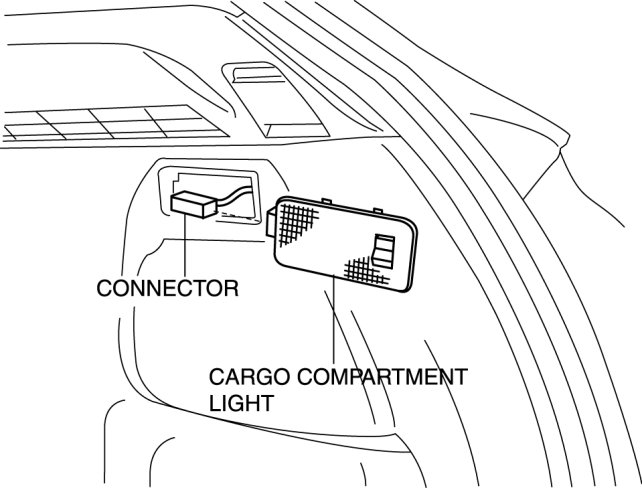

3. Disconnect the connector.






4. Remove the cargo compartment light.

5. Install in the reverse order of removal.
