AFS (Adaptive Front Lighting System) Control Module Removal/Installation

AFS (ADAPTIVE FRONT LIGHTING SYSTEM) CONTROL MODULE REMOVAL/INSTALLATION

NOTE:
- Perform the auto leveling system initialization after newly replacing the AFS control module to assure that the auto leveling system operates correctly.

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Passenger-side front scuff plate Front Scuff Plate Removal/Installation

b. Passenger-side front side trim Front Side Trim Removal/Installation

c. Dashboard under cover Dashboard Under Cover Removal/Installation

d. Glove compartment Service and Repair

e. Passenger-side lower panel Lower Panel Removal/Installation

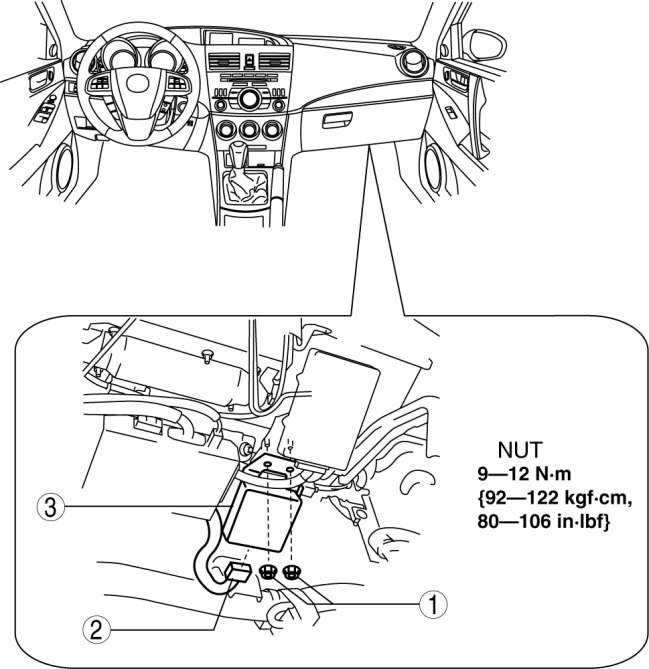

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

5. Perform the headlight auto leveling system initialization after newly replacing the AFS control module. Programming and Relearning
