Home >> Mazda >> 2012 >> 3 L4-2.5L >> Repair and Diagnosis >> Locations >> Component Locations >> A - Z Component List >> Keyless Receiver/TPMS Control Module >> Door Lock System (With Advanced Keyless Entry And Push Button Start System, TPMS)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

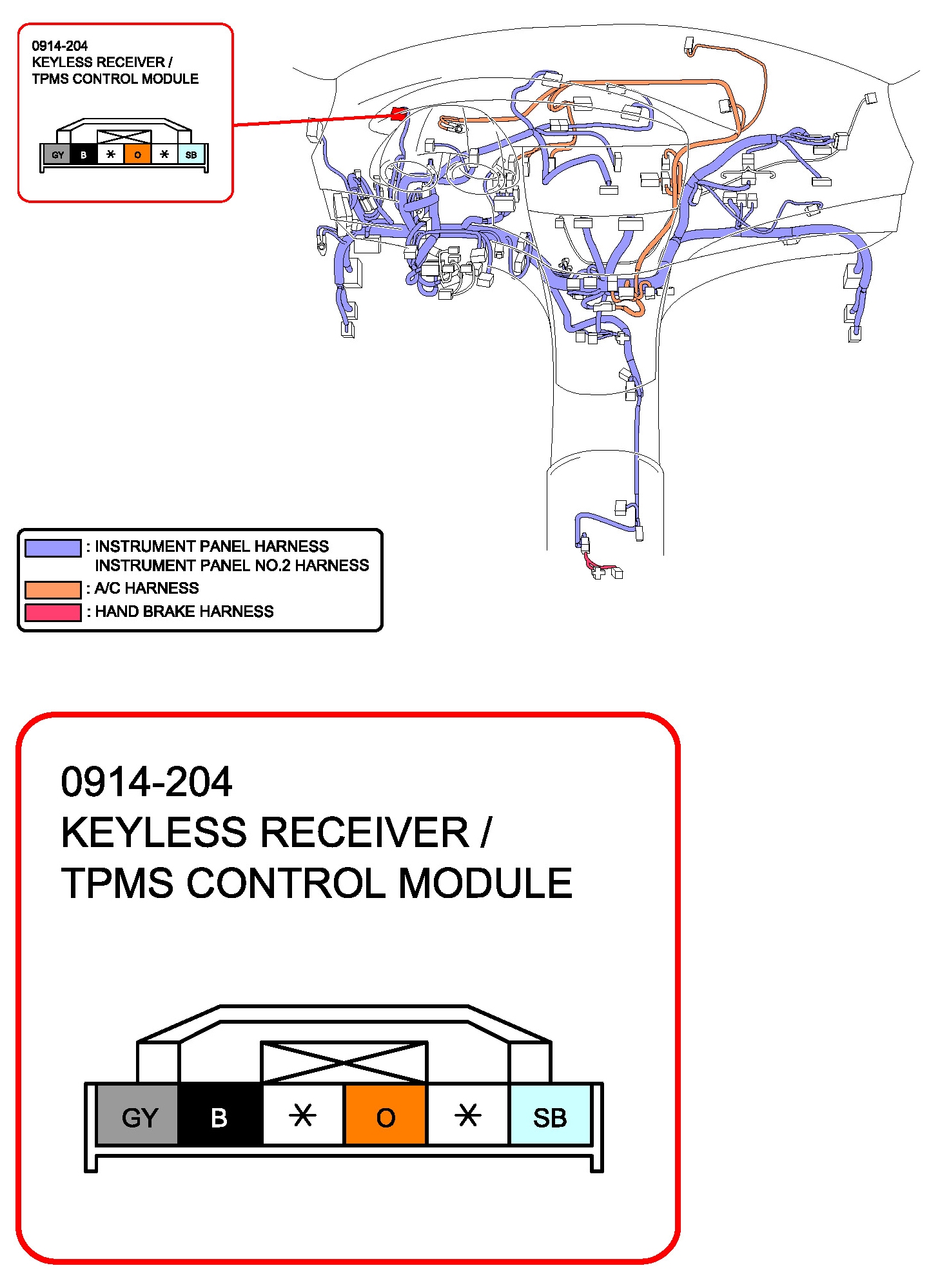

Door Lock System (With Advanced Keyless Entry And Push Button Start System, TPMS)
