Clutch Fluid Inspection [G66M-R]

CLUTCH FLUID INSPECTION [G66M-R]

NOTE:
- A common reserve tank is used for the clutch and brake system.

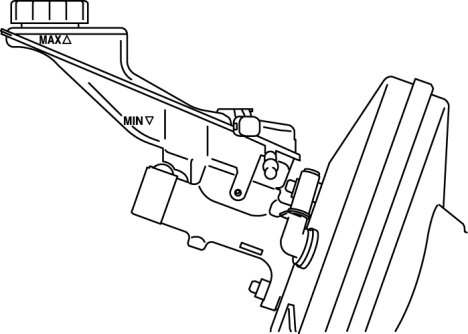

1. Verify that the clutch fluid is between the MIN and MAX marks.






- If the clutch fluid is below the MIN mark, add clutch fluid.

Clutch fluid
- SAE J1703 or FMVSS116 DOT-3
