G35M-R

TRANSAXLE OIL INSPECTION [G35M-R]

1. Park the vehicle on level ground.

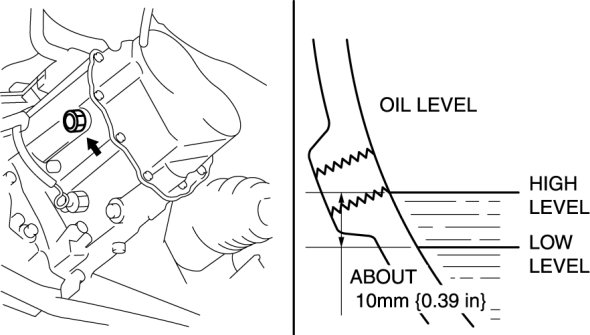

2. Remove the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation

3. Remove the oil level plug and washer.

4. Verify that the oil is near the brim of the plug port.






- If the oil level is lower than the low level, add the specified amount and type of oil through the oil level plug hole.

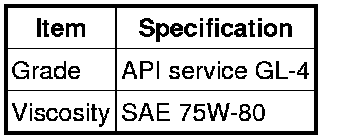

Manual transaxle oil





5. Install a new washer and the oil level plug.

Tightening torque
- 39-59 Nm {4.0-6.0 kgf-m, 29-43 ft-lbf}

6. Install the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation
