Refrigerant System General Procedures

REFRIGERANT SYSTEM GENERAL PROCEDURES

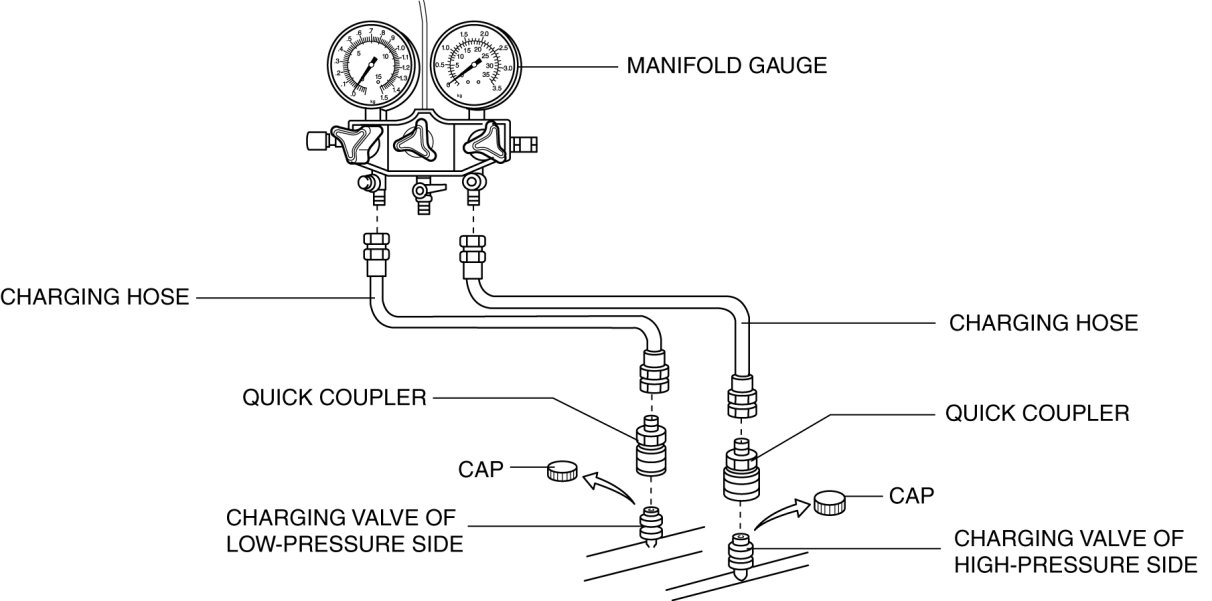

1. Fully close the valves of the manifold gauge.

2. Connect the charging hoses to the high- and low-pressure side joints of the manifold gauge.






3. Connect the quick couplers to the ends of the charging hoses.

4. Connect the quick couplers to the charging valves.
