Relay Box: Service and Repair

RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Driver-side front scuff plate Front Scuff Plate Removal/Installation

b. Driver-side front side trim Front Side Trim Removal/Installation

c. Hood release lever Service and Repair

d. Upper panel Upper Panel Removal/Installation

e. Shift knob (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

f. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

g. Shift panel Shift Panel Removal/Installation

h. Side wall Side Wall Removal/Installation

i. Console Console Removal/Installation

j. Lower panel Lower Panel Removal/Installation

k. Knee bolster Knee Bolster Removal/Installation

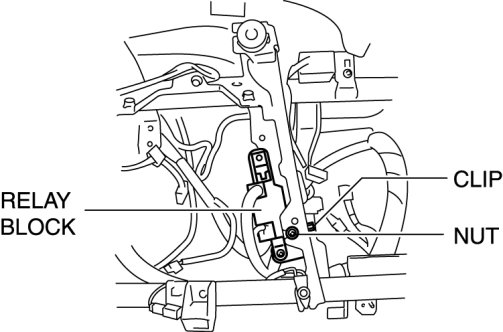

3. Remove the nut and clip.

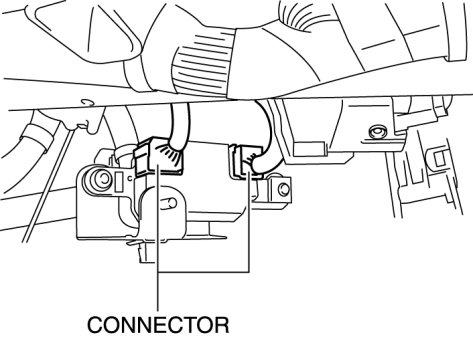

4. Disconnect the connectors.

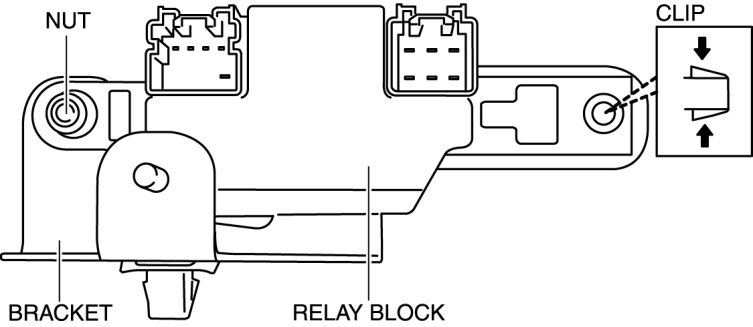

5. Remove the nut and clip.






6. Remove the relay block from the bracket.

7. Install in the reverse order of removal.
