Relay Block Inspection - With Advanced Keyless Entry And Push Button Start System

RELAY BLOCK INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Driver-side front scuff plate Front Scuff Plate Removal/Installation

b. Driver-side front side trim Front Side Trim Removal/Installation

c. Hood release lever Service and Repair

d. Upper panel Upper Panel Removal/Installation

e. Shift knob (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

f. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

g. Shift panel Shift Panel Removal/Installation

h. Side wall Side Wall Removal/Installation

i. Console Console Removal/Installation

j. Lower panel Lower Panel Removal/Installation

k. Knee bolster Knee Bolster Removal/Installation

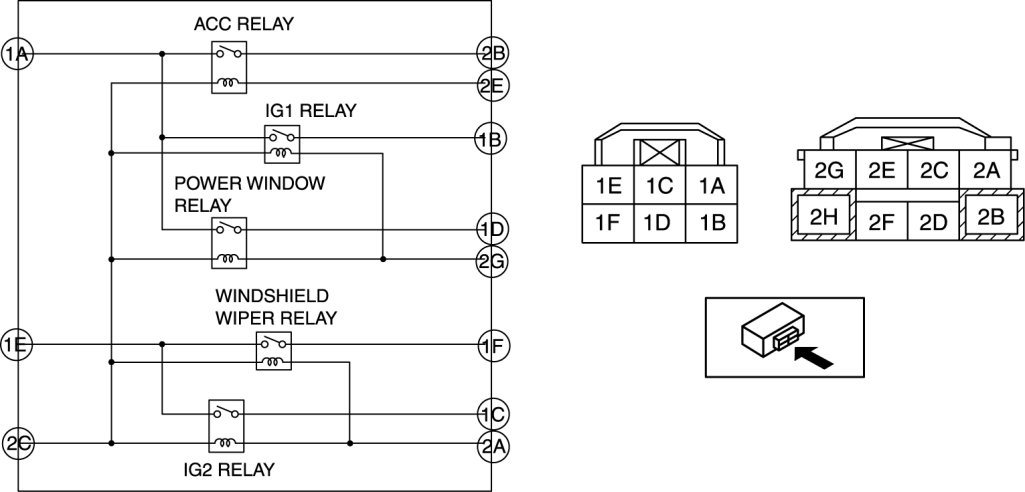

3. Remove the relay block. Service and Repair

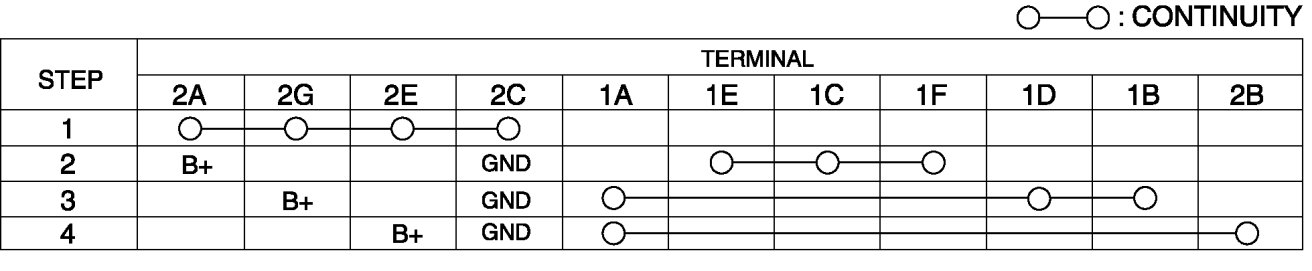

4. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the relay block.
