Electrical Diagrams

Diagram 00D-a:

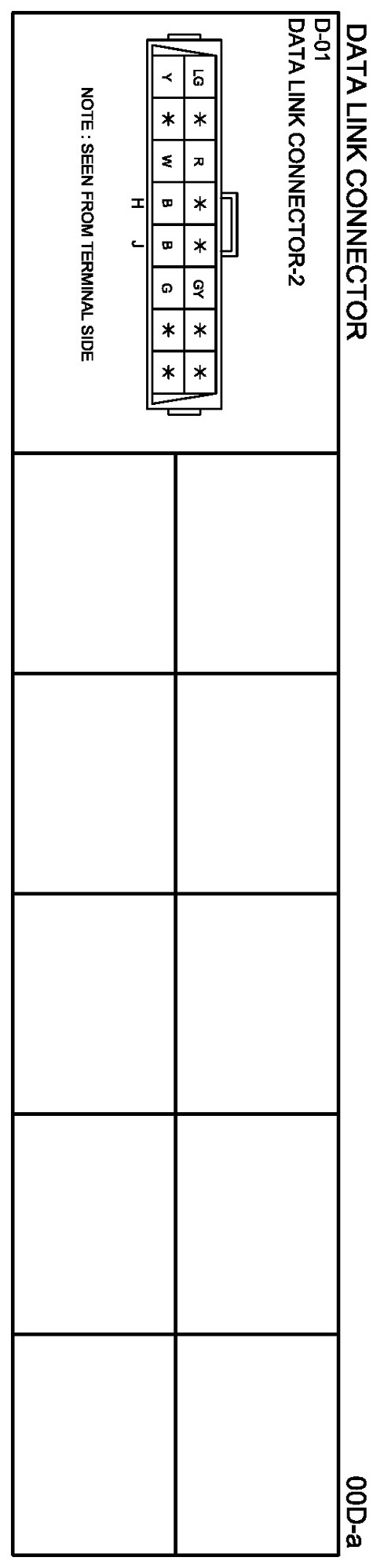

Connectors 00D-a:

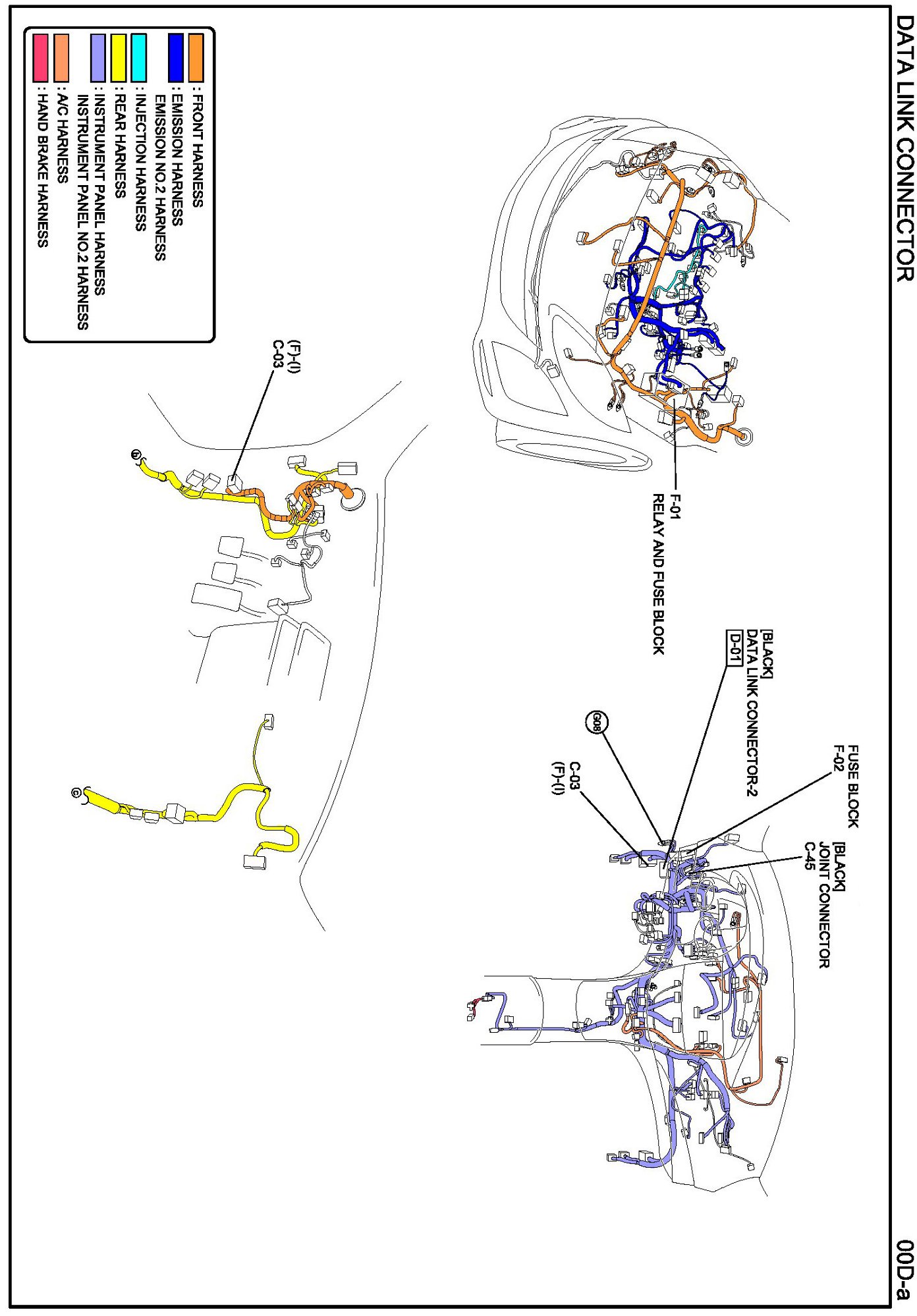

Routing View 00D-a:

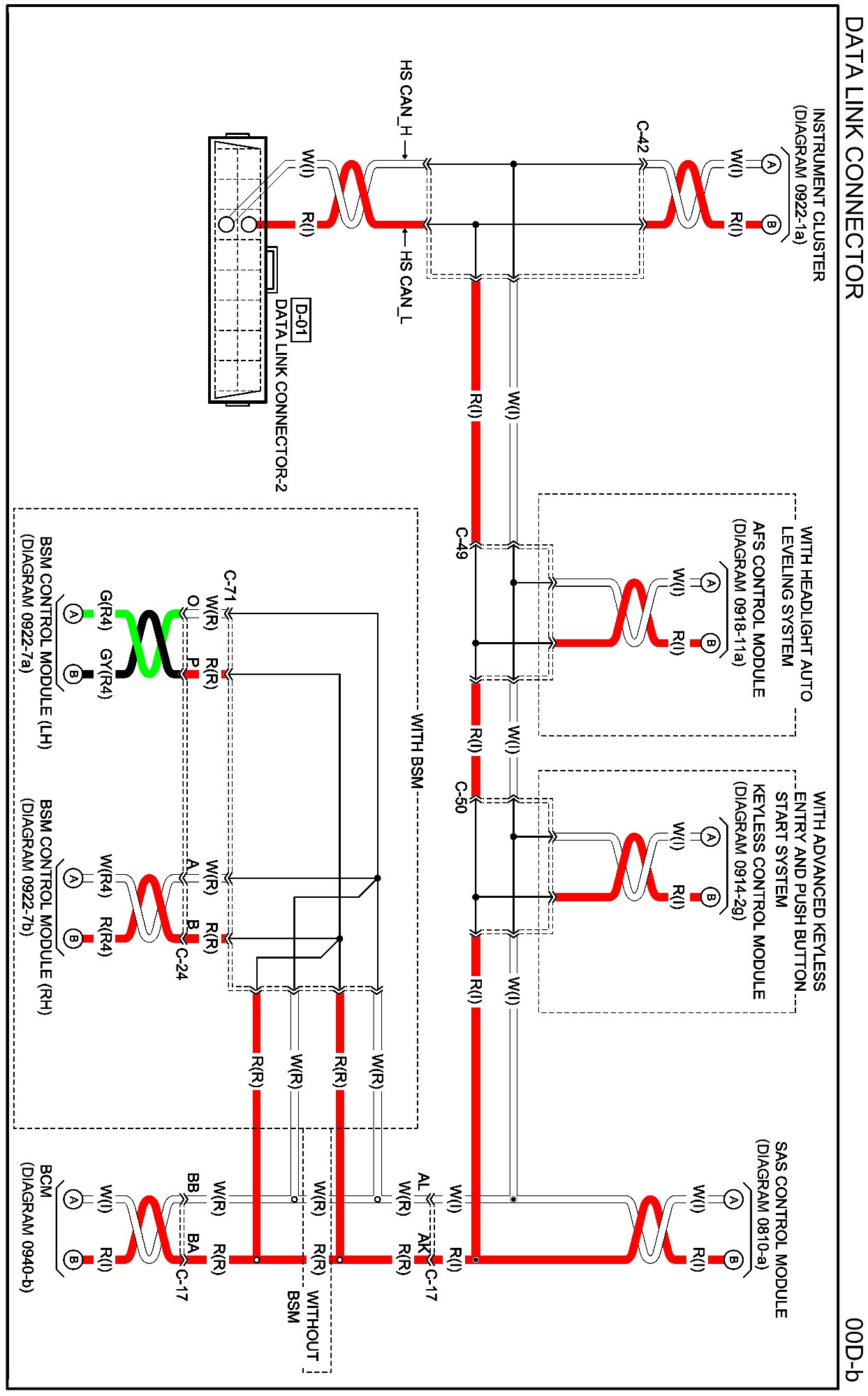

Diagram 00D-b:

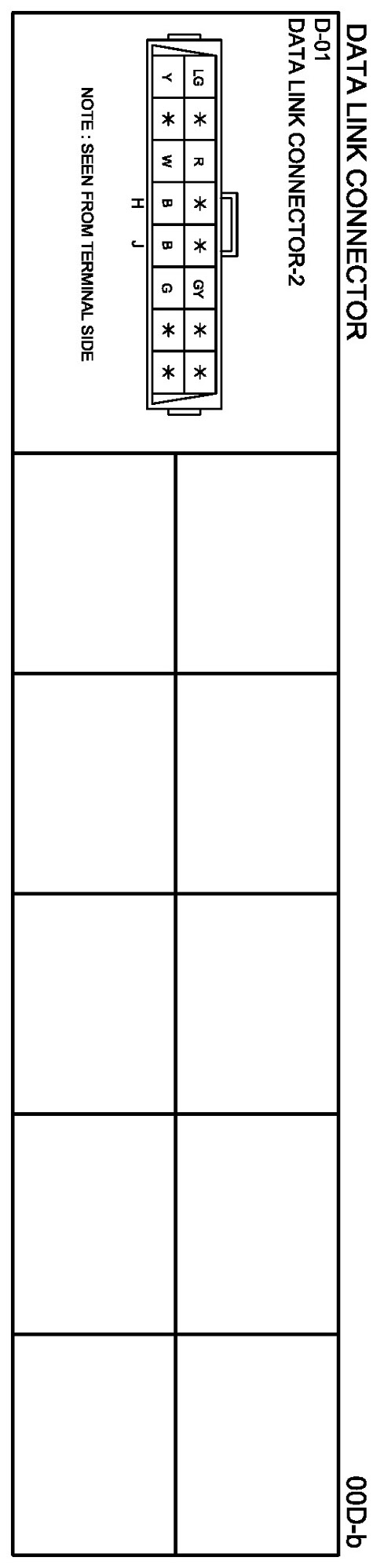

Connectors 00D-b:

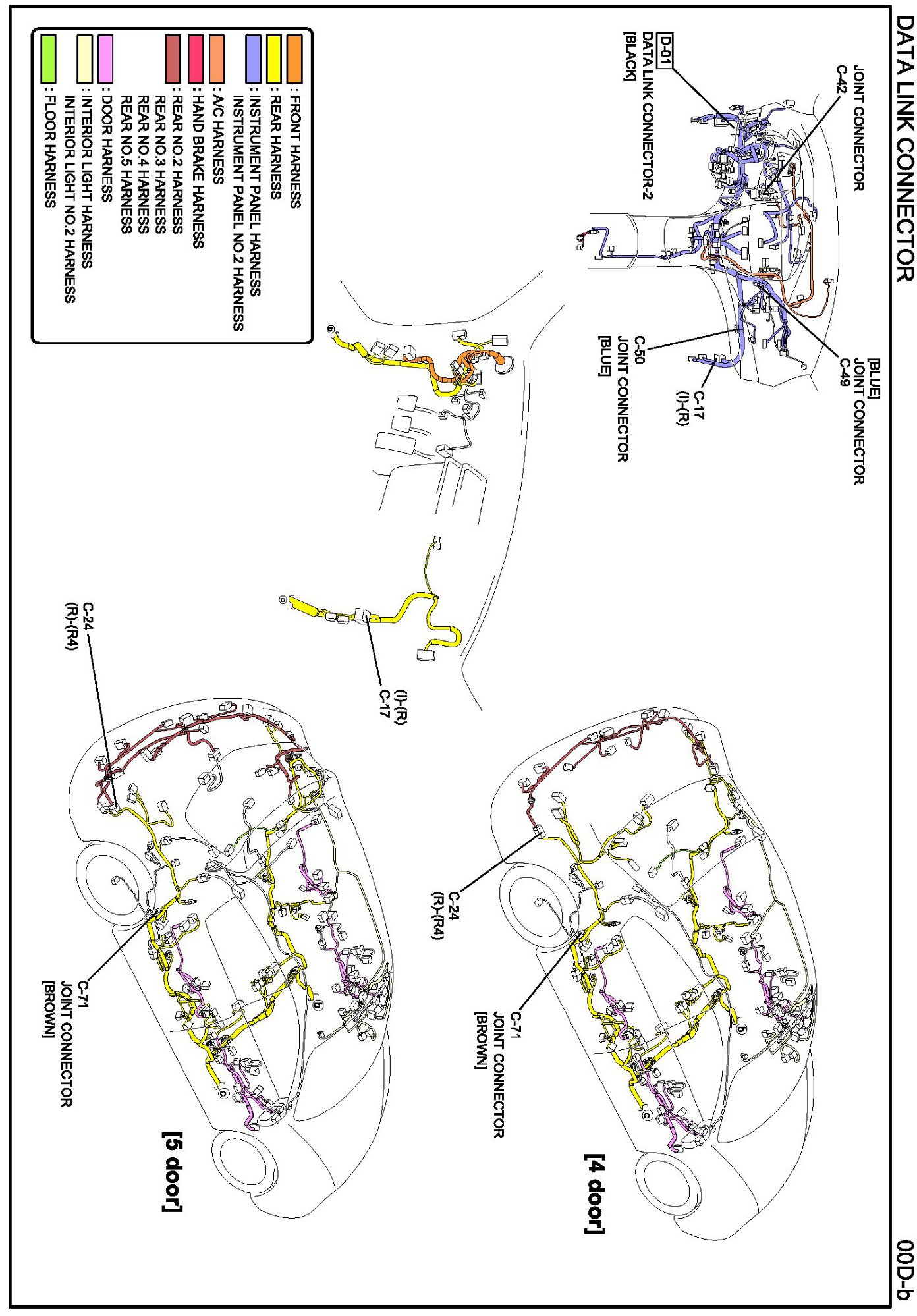

Routing View 00D-b:

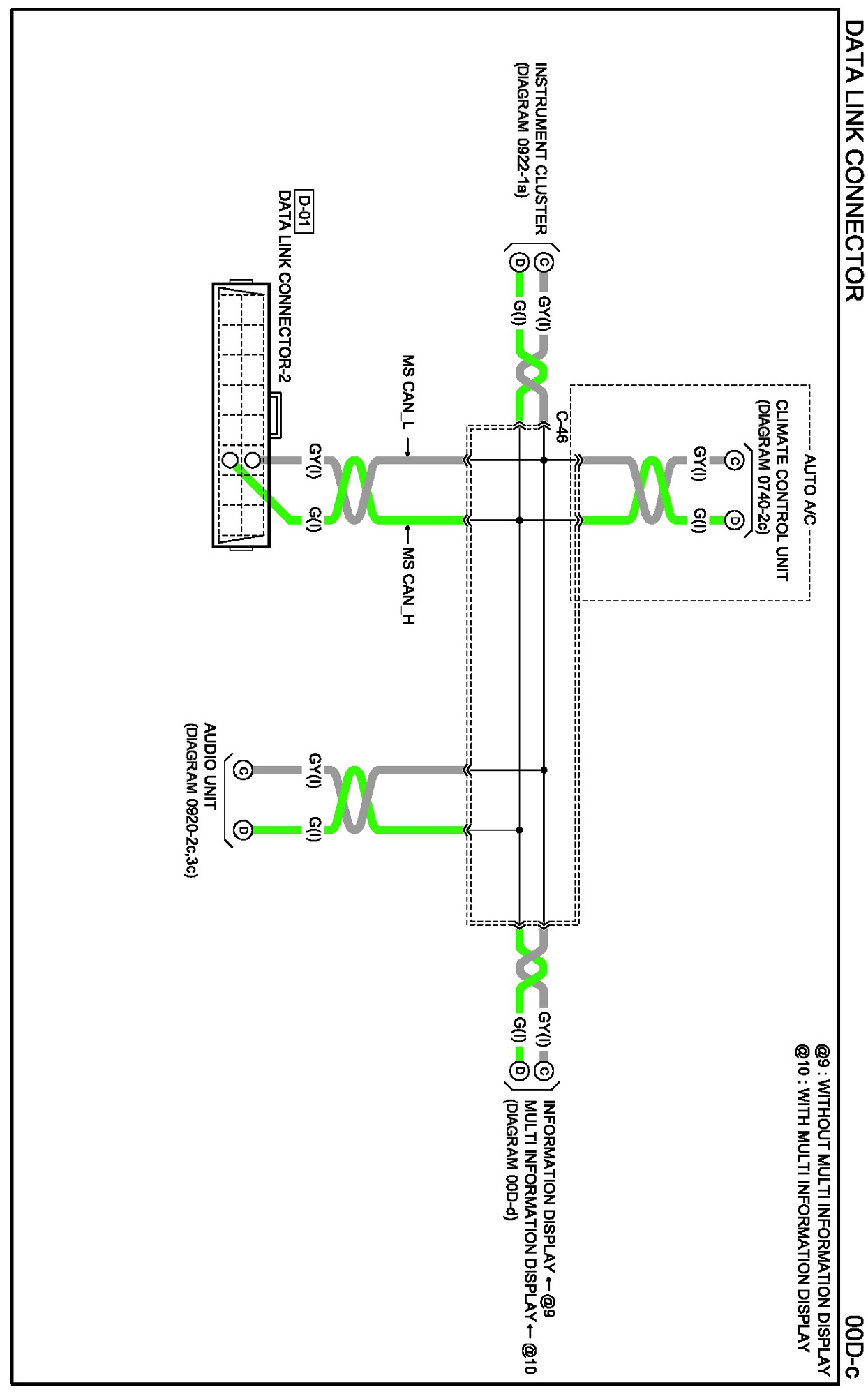

Diagram 00D-c:

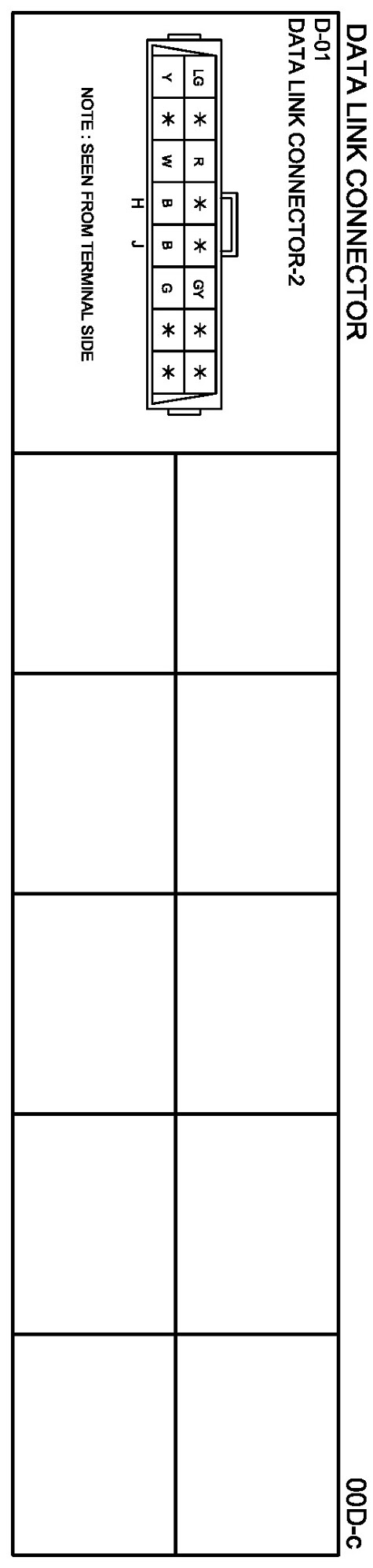

Connectors 00D-c:

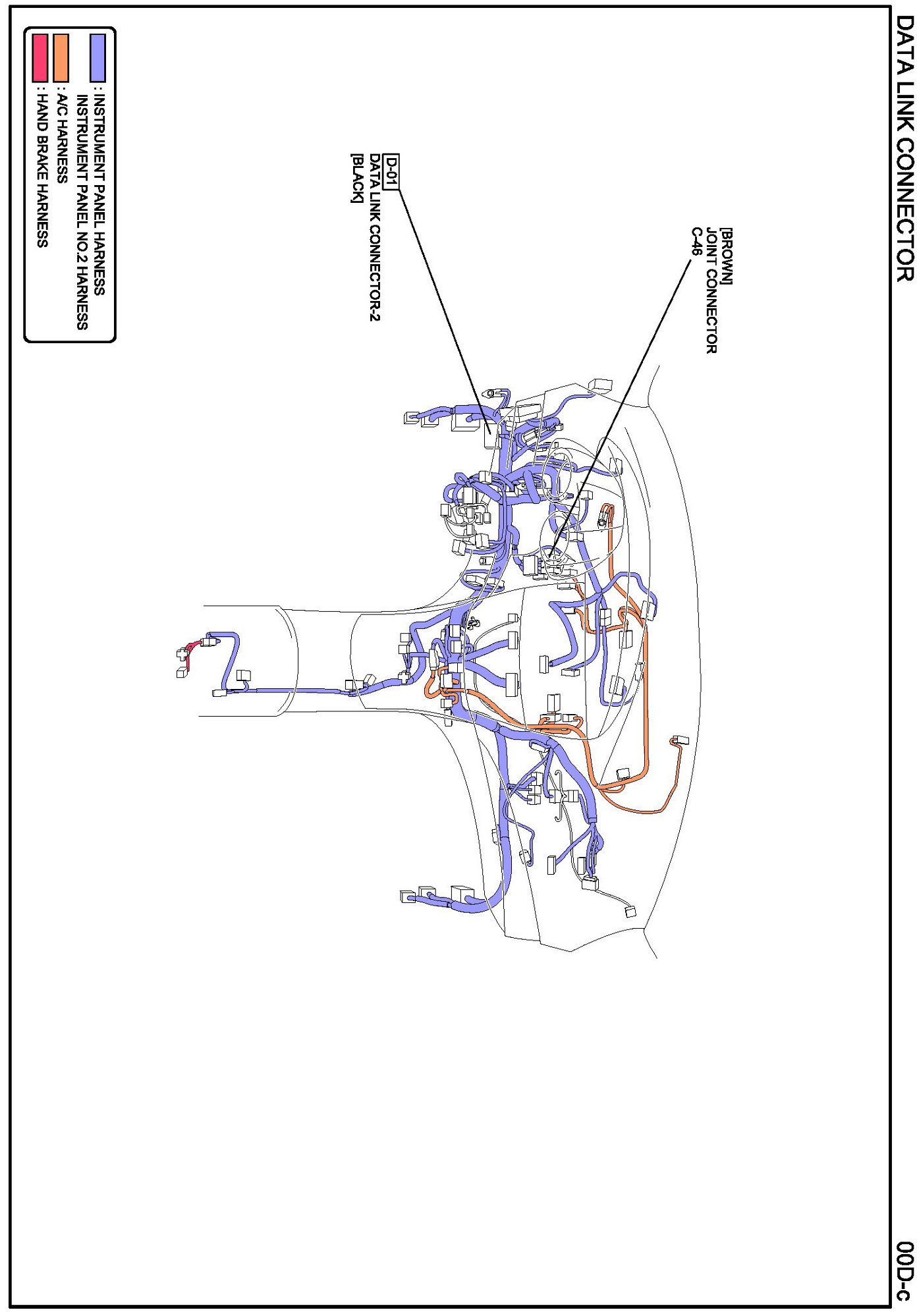

Routing View 00D-c:

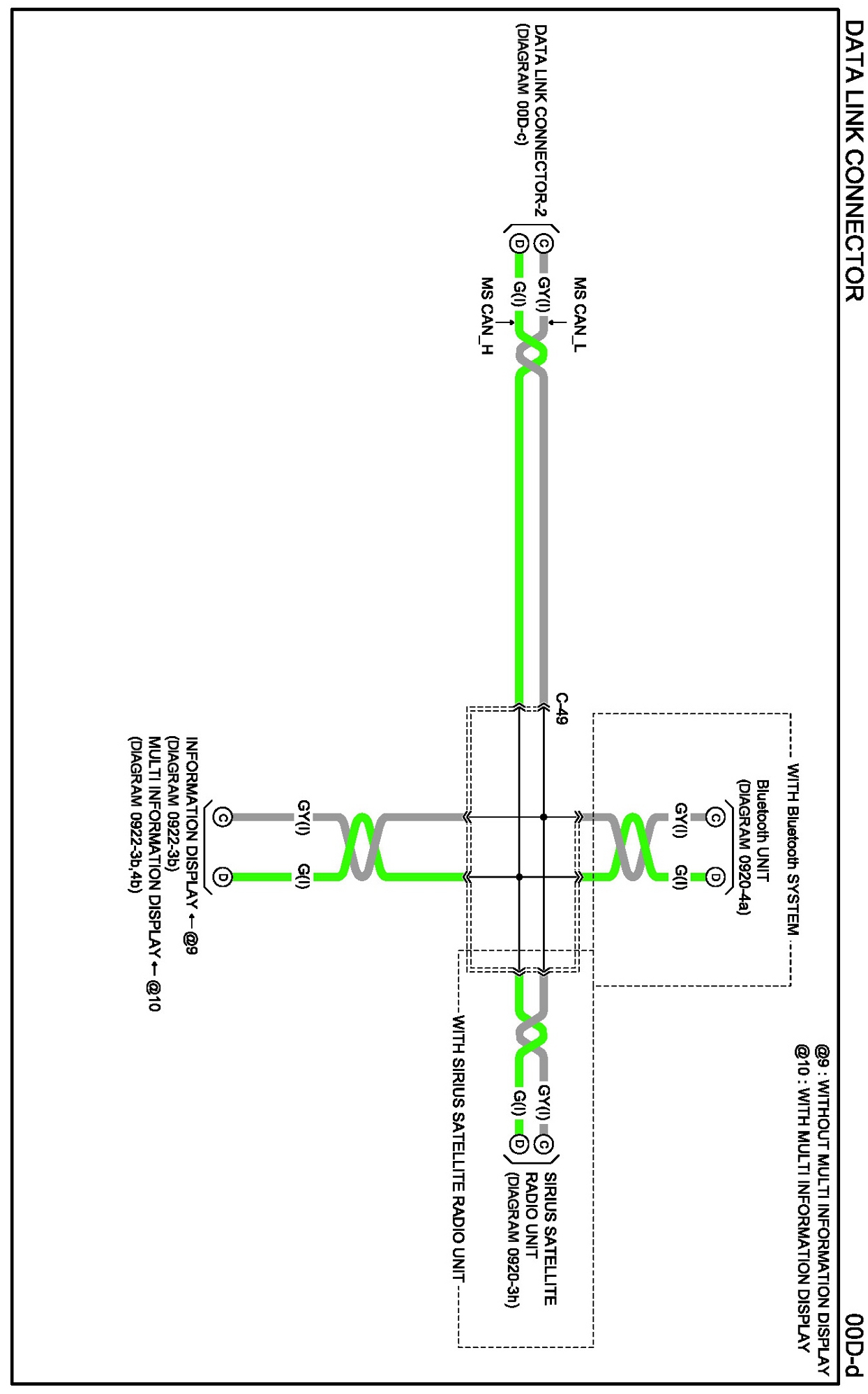

Diagram 00D-d:

Connectors 00D-c:

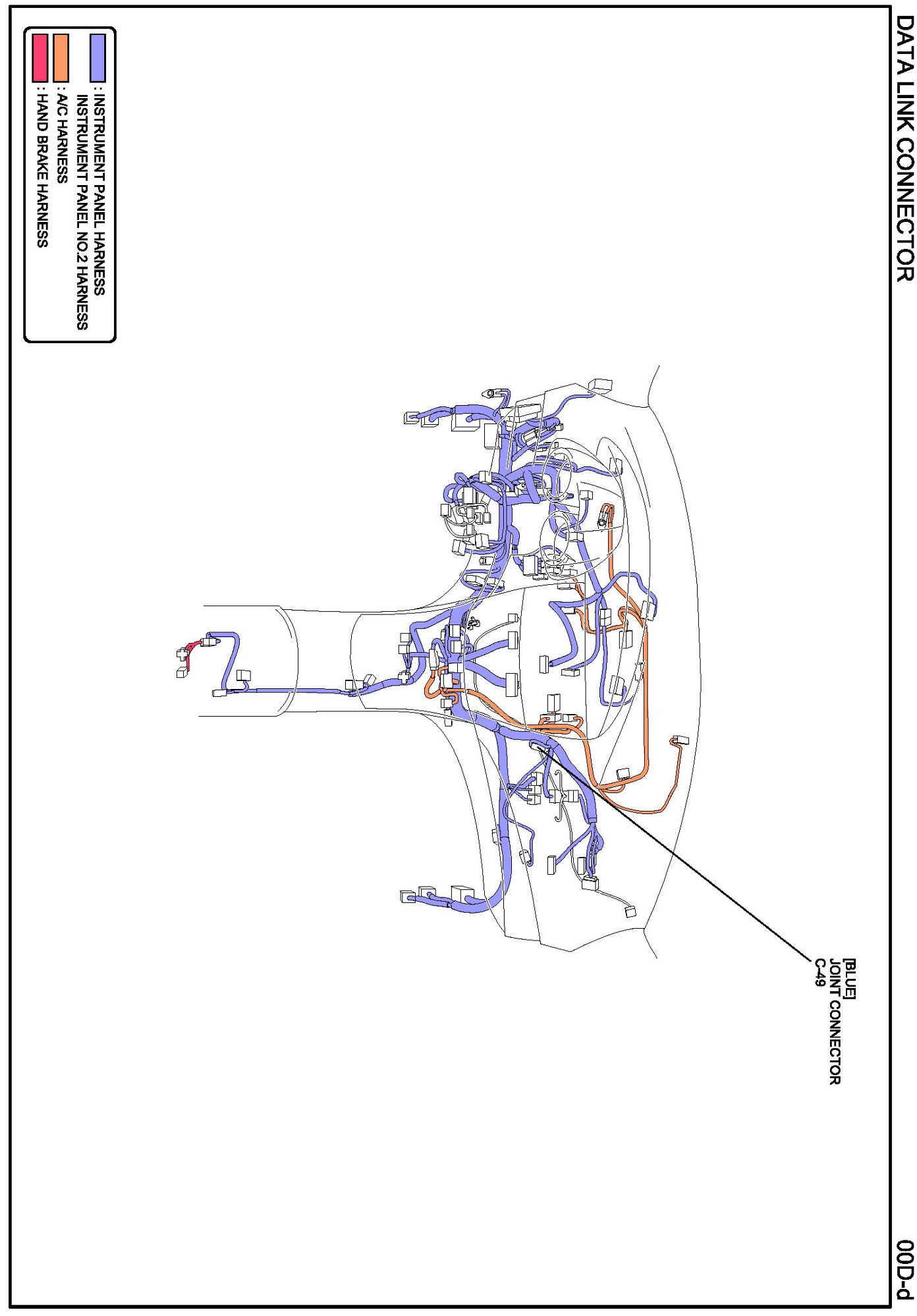

Routing View 00D-d:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
