Manifold Pressure/Vacuum Sensor: Testing and Inspection

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [MZR 2.0, MZR 2.5]

Voltage Inspection

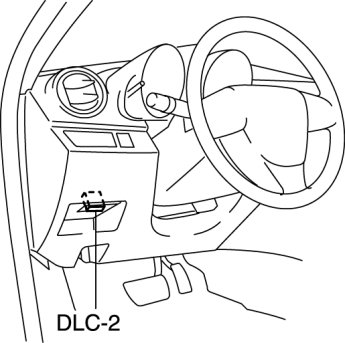

1. Connect the M-MDS to the DLC-2.






2. Switch the ignition to ON.

3. Verify that the MAP sensor output voltage (PID: MAP) is within the specification. On-Board Diagnostic Test Component Tests and General Diagnostics

- If not as specified, replace the MAP sensor. Service and Repair
