Diagnostic Monitoring Test Results

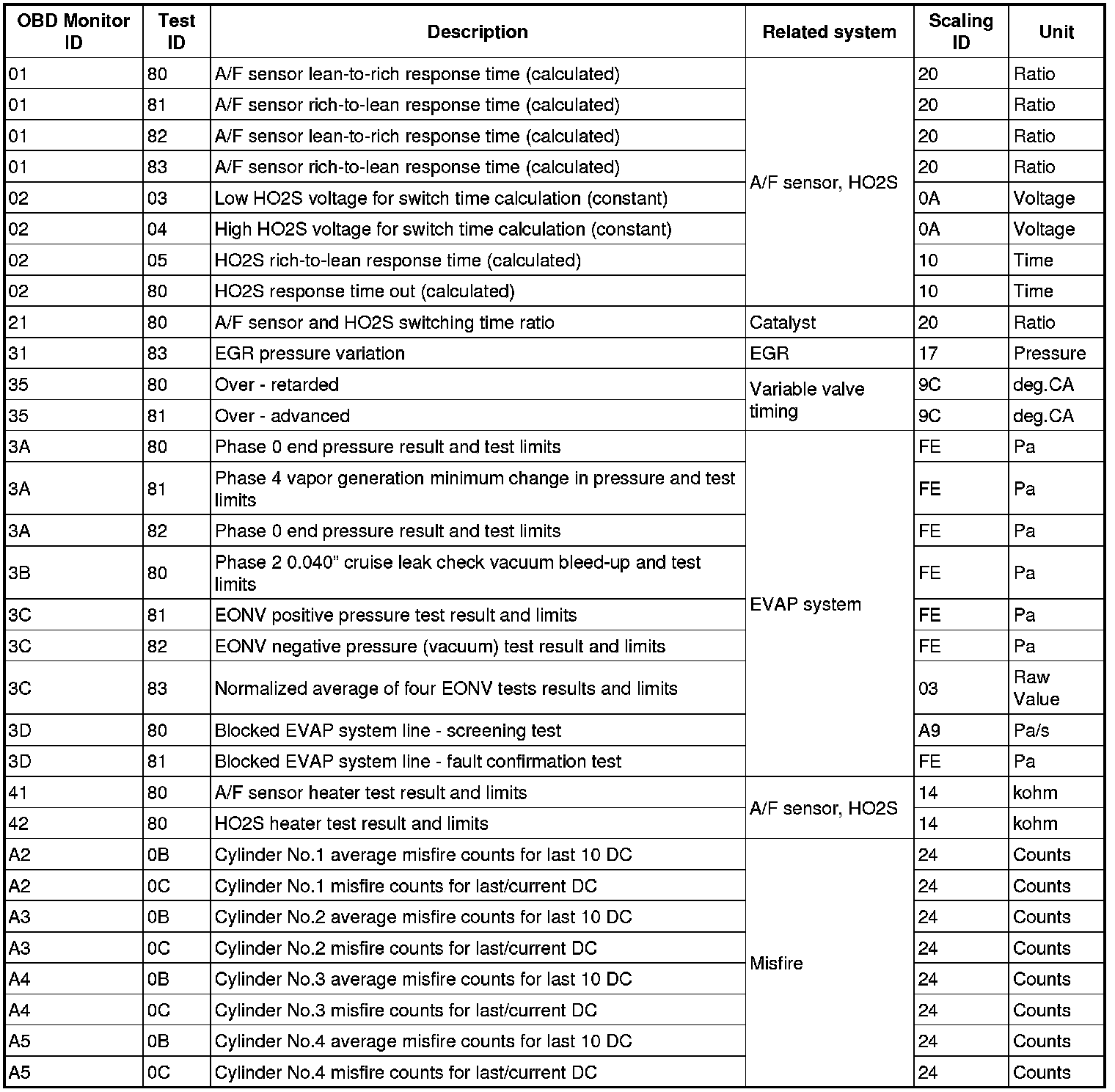

DIAGNOSTIC MONITORING TEST RESULTS [MZR 2.0, MZR 2.5]

- The purpose of this test mode is to confirm the result of OBD-II monitor diagnostic test results. The result values stored when particular monitor is completed are displayed. If the monitor is not completed, initial value is displayed.
