Emission Control Systems: Locations





EMISSION SYSTEM LOCATION INDEX [MZR 2.0, MZR 2.5]

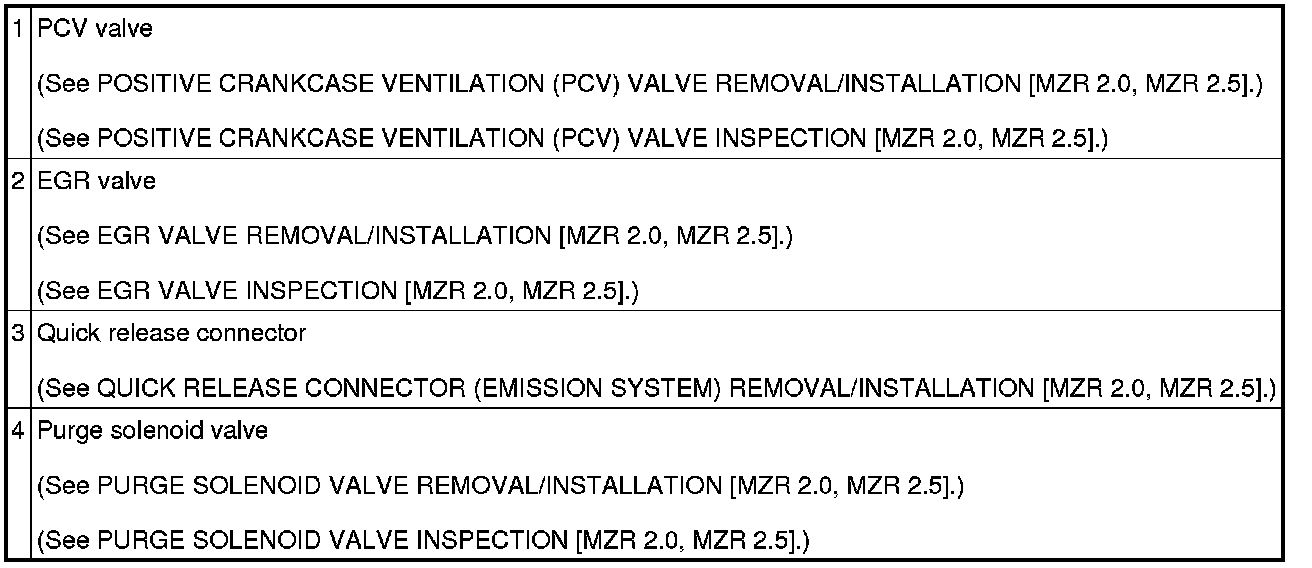

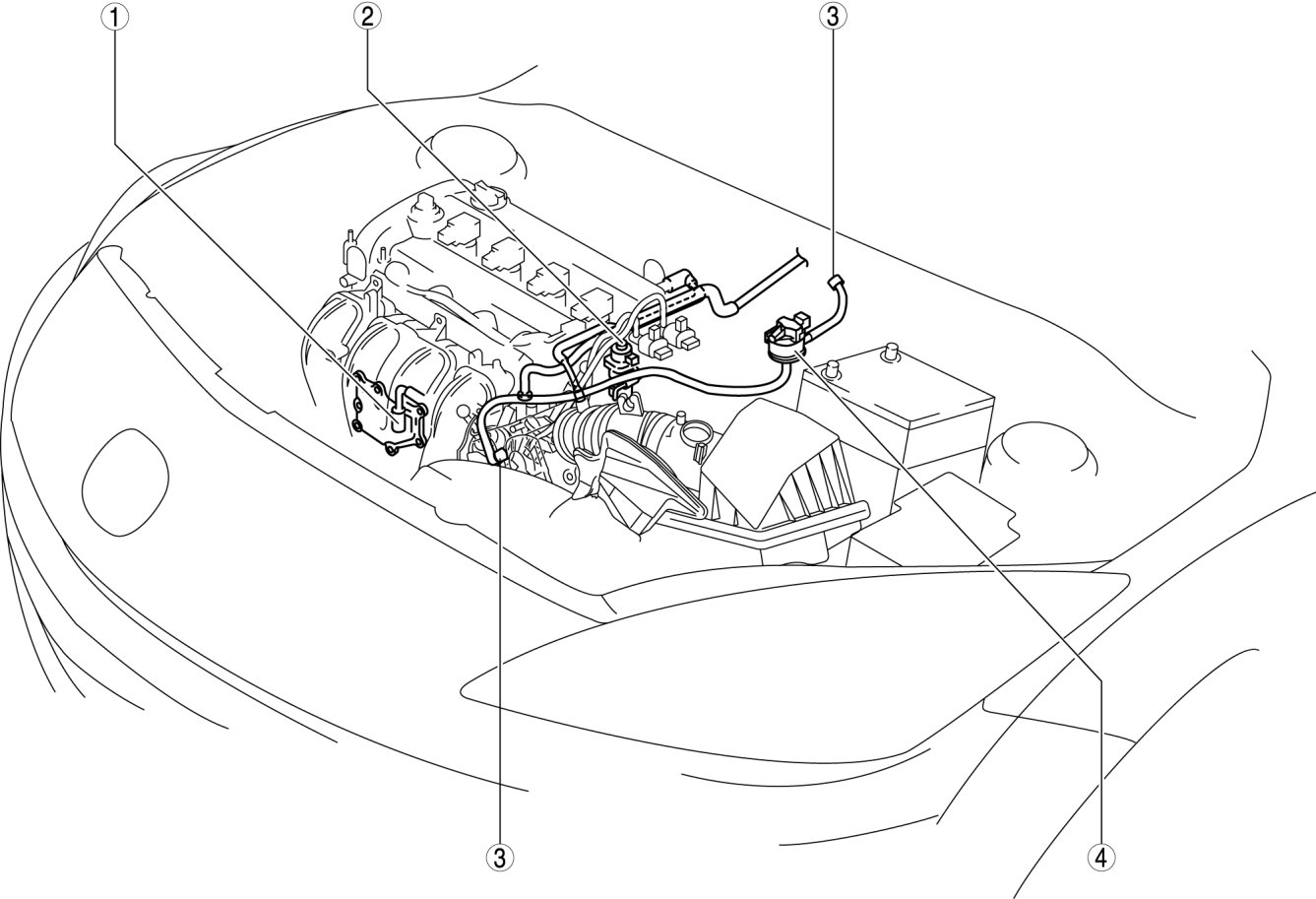

Engine Compartment Side

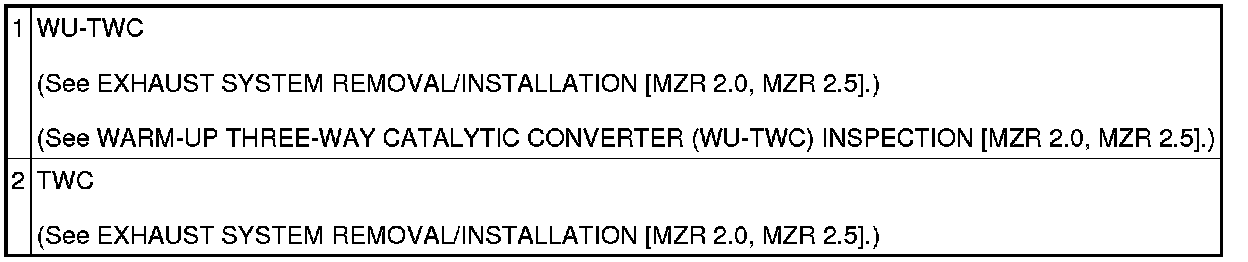

Exhaust System Side

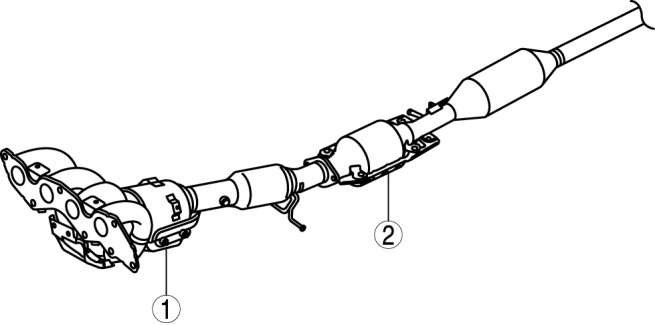

MZR 2.0

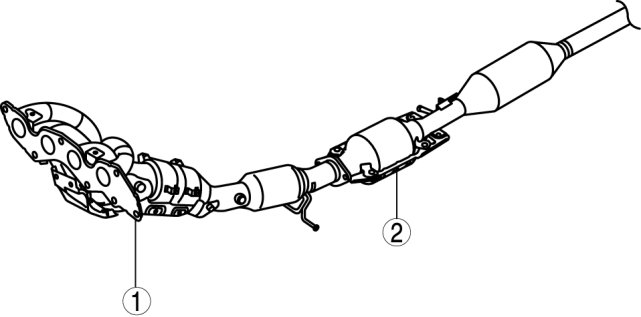

MZR 2.5

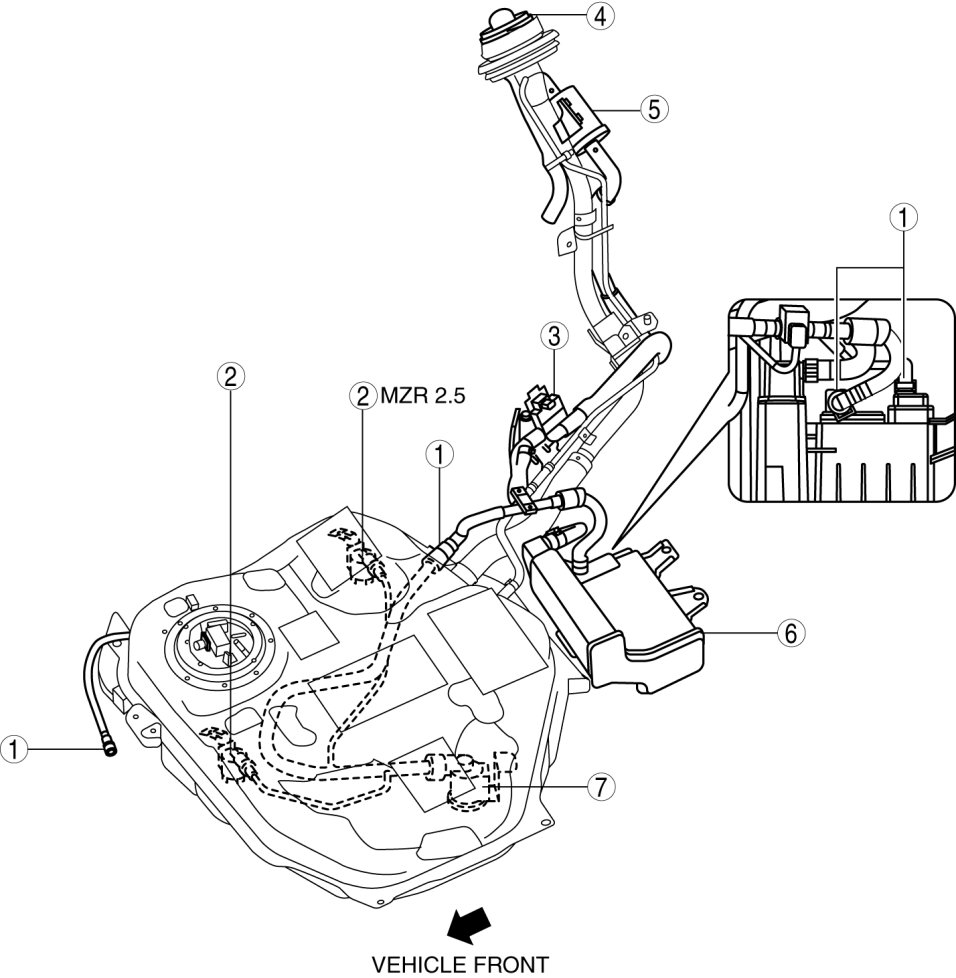

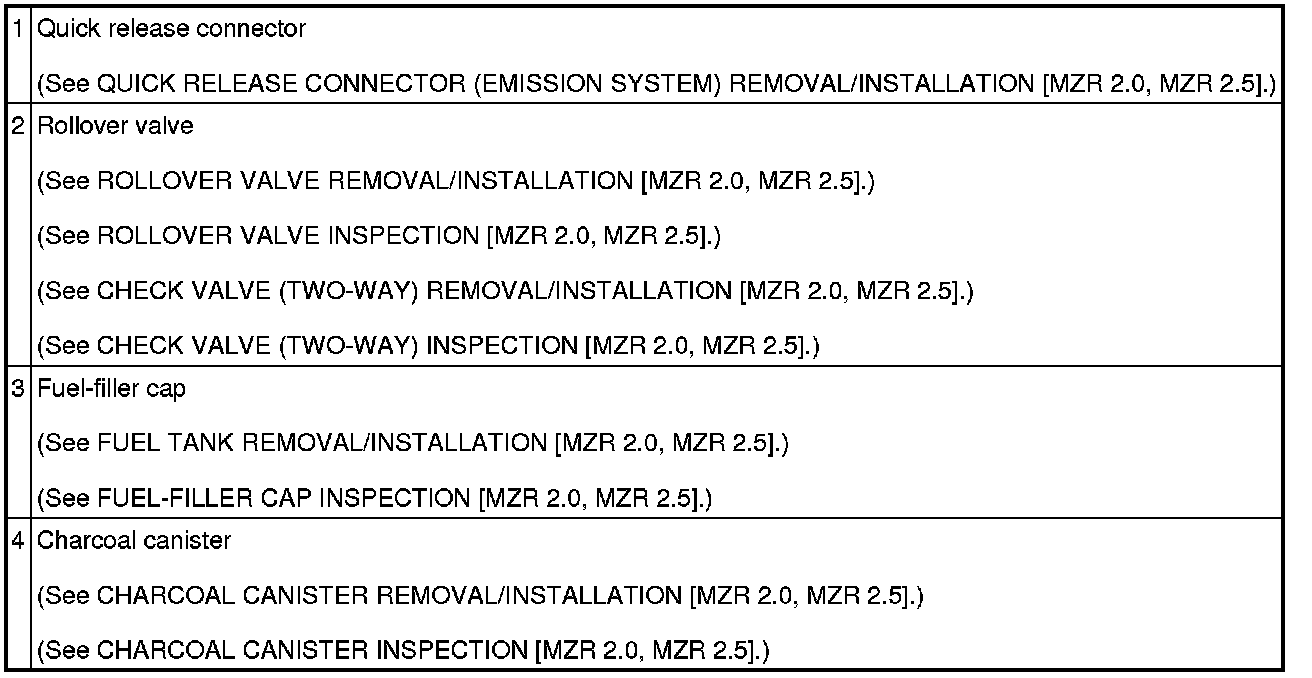

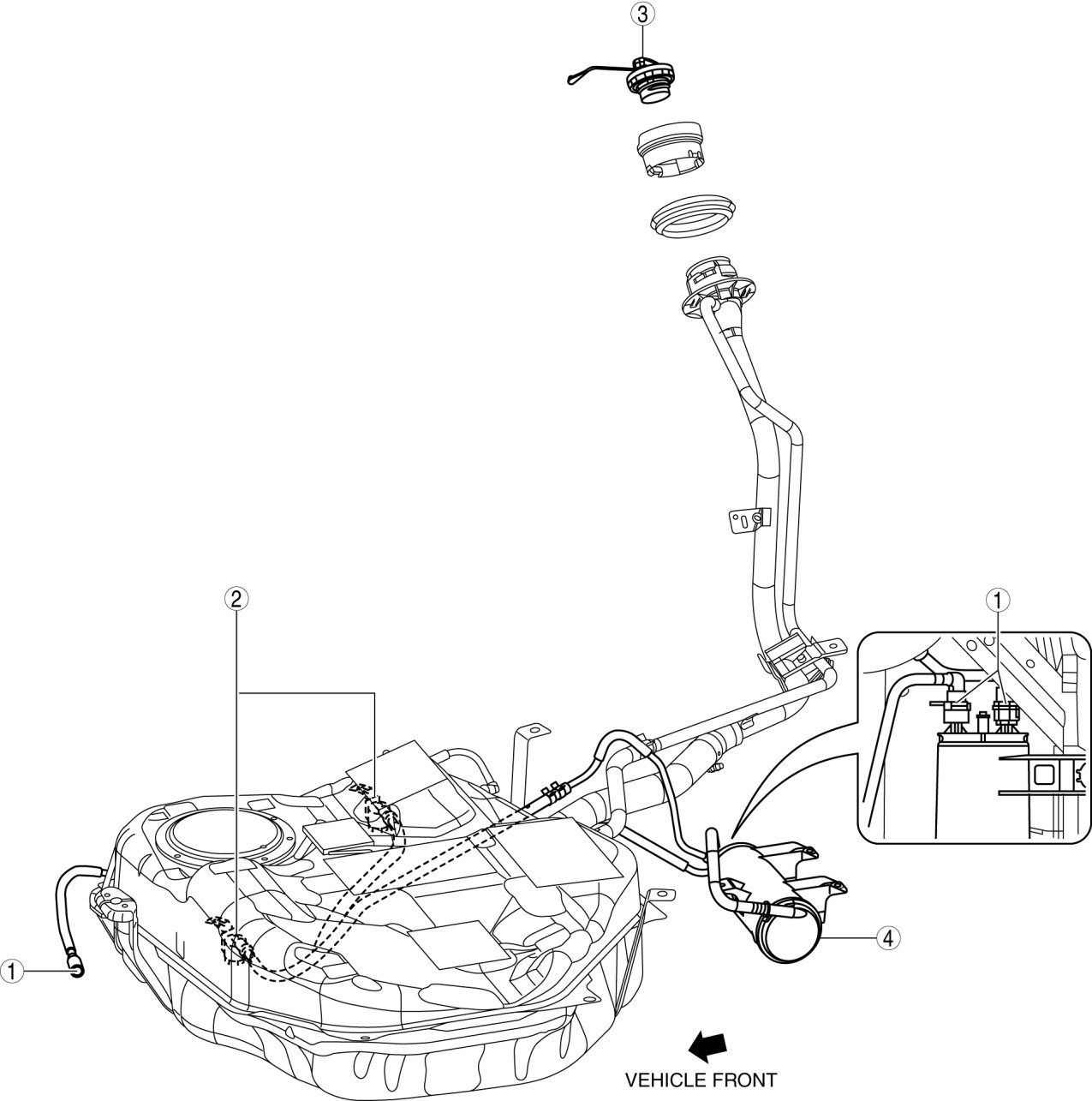

Fuel Tank Side

Except for Mexico










Mexico
