System Specifications





TRANSMISSION/TRANSAXLE TECHNICAL DATA

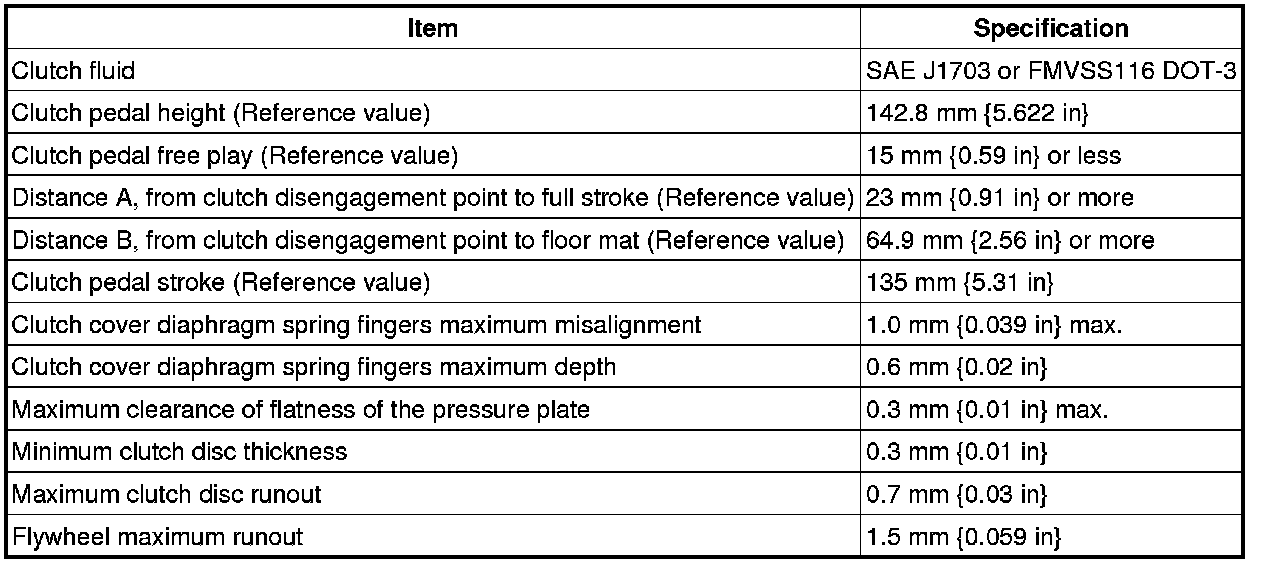

Clutch [G35M-R]

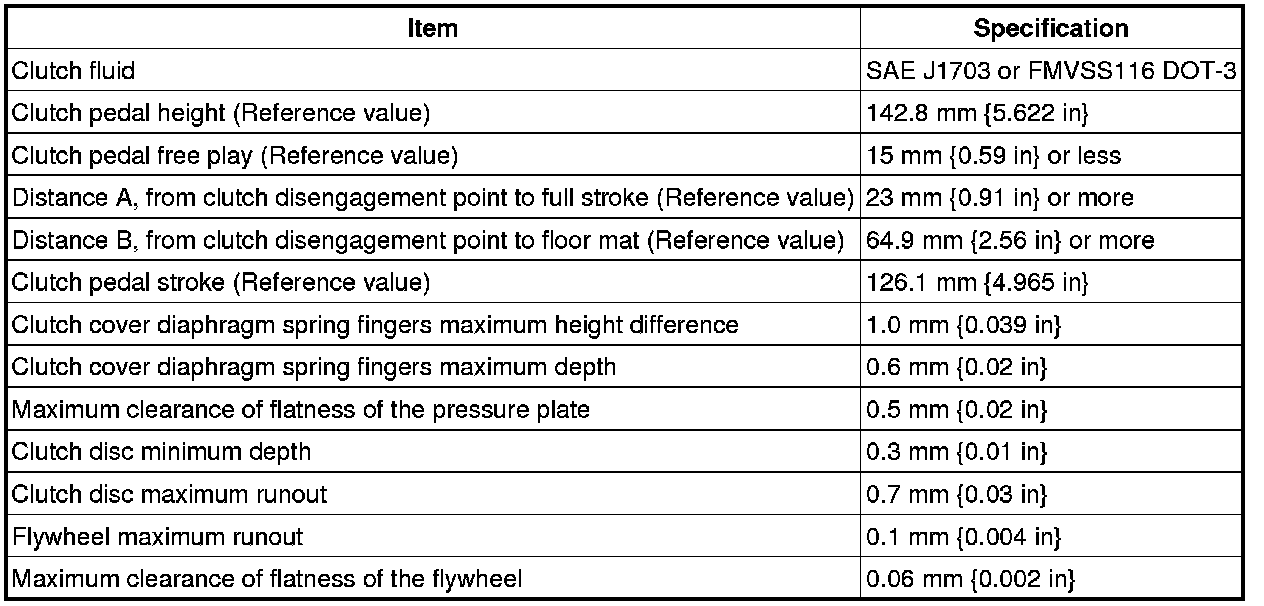

Clutch [G66M-R]

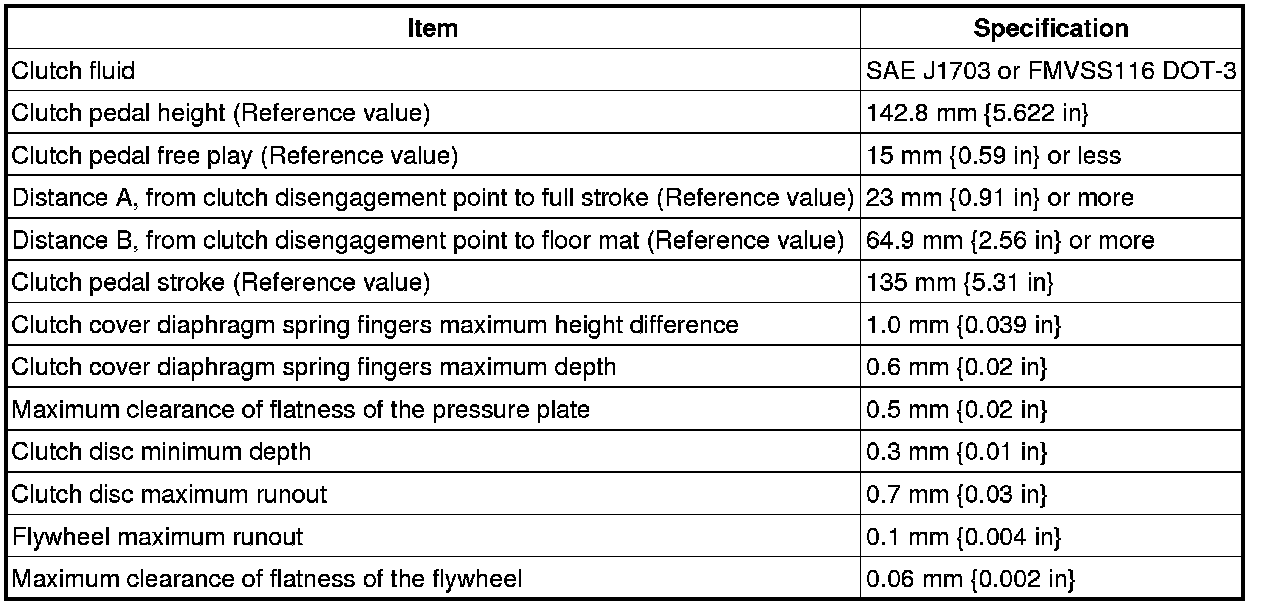

Clutch [A26M-R]

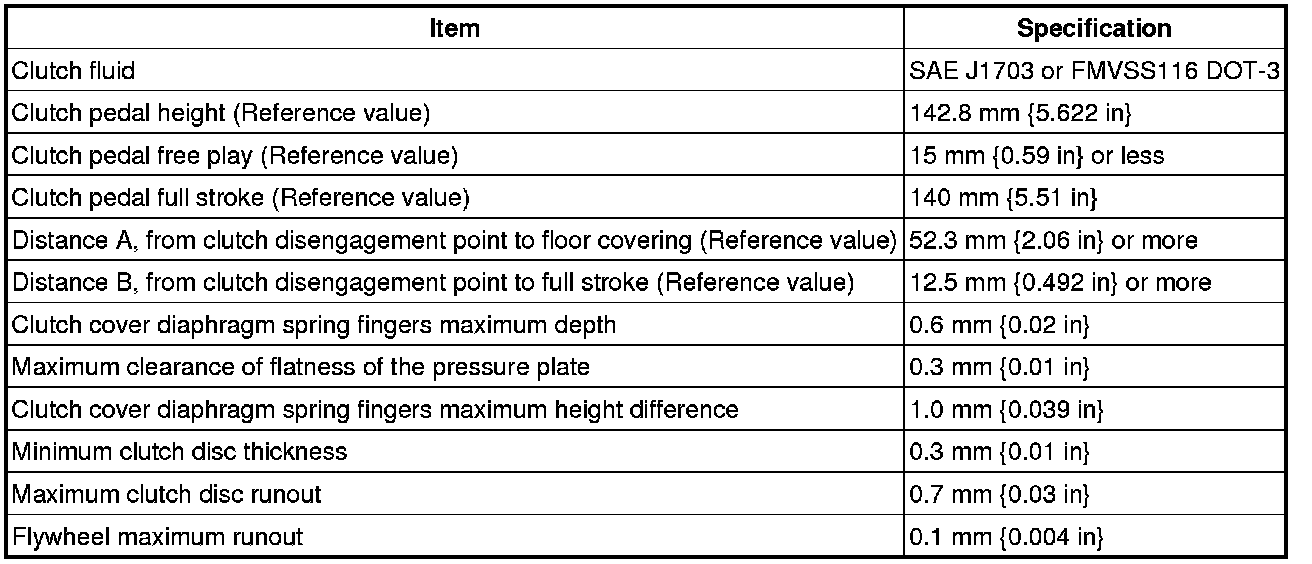

Clutch [C66M-R]
