System Specifications

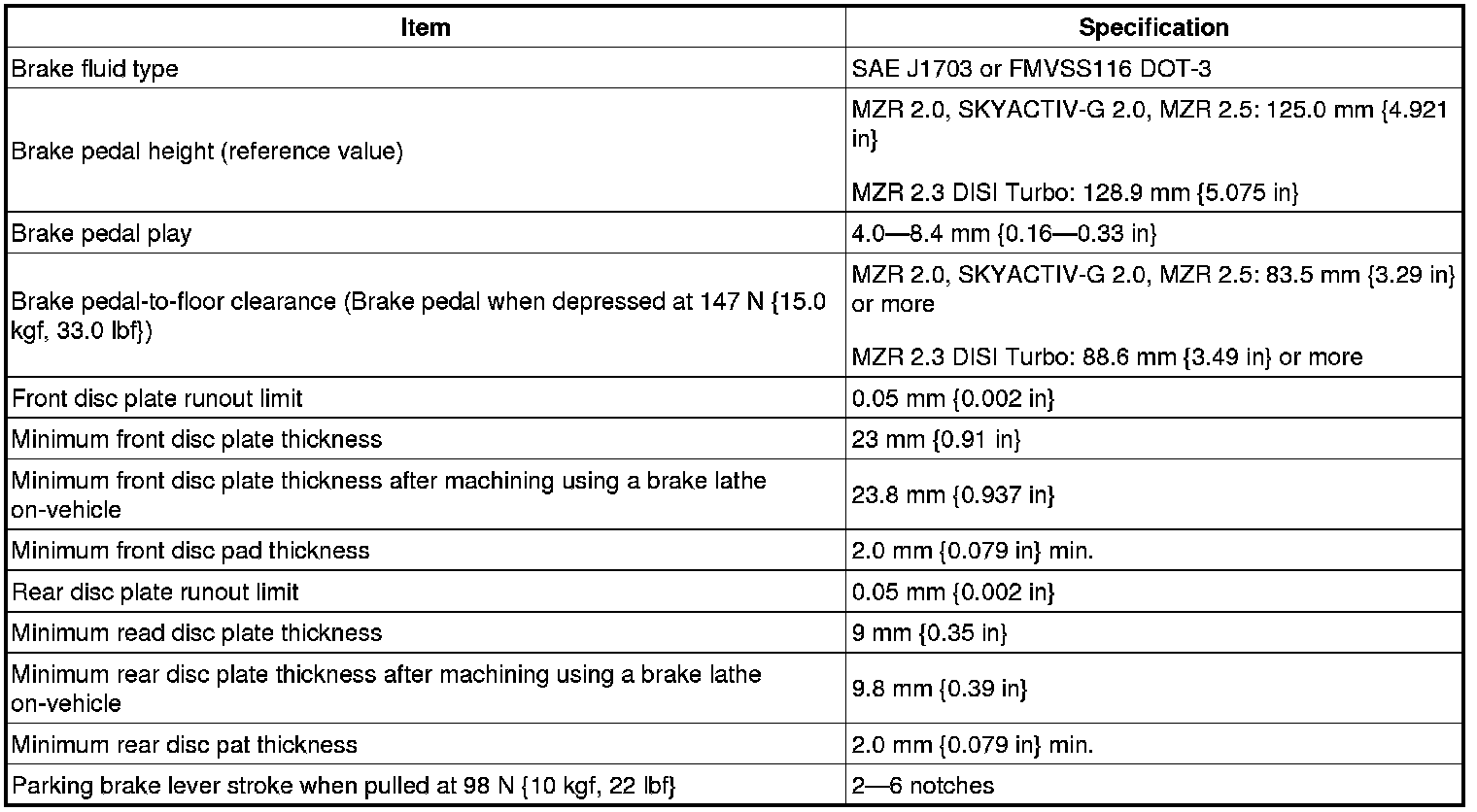

BRAKES TECHNICAL DATA





Master cylinder fluid pressure

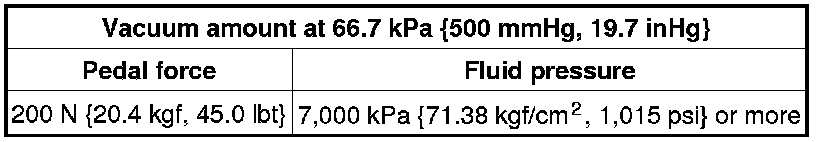

Master cylinder fluid pressure (MZR 2.0, SKYACTIV-G 2.0, MZR 2.5)

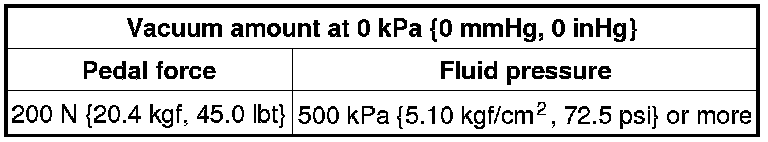

Master cylinder fluid pressure (MZR 2.3 DISI Turbo)

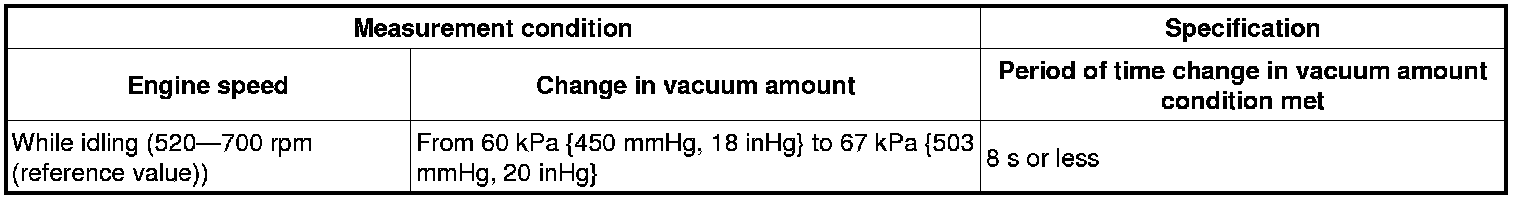

Vacuum pump vacuum specification (reference value) (SKYACTIV-G 2.0)





Vacuum pump maximum vacuum specification (reference value) (SKYACTIV-G 2.0)
