Timing Cover

Engine Front Cover

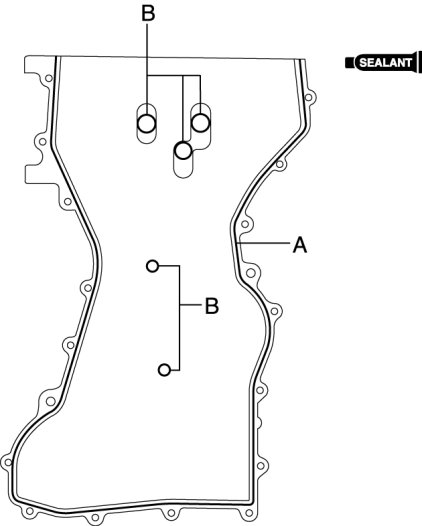

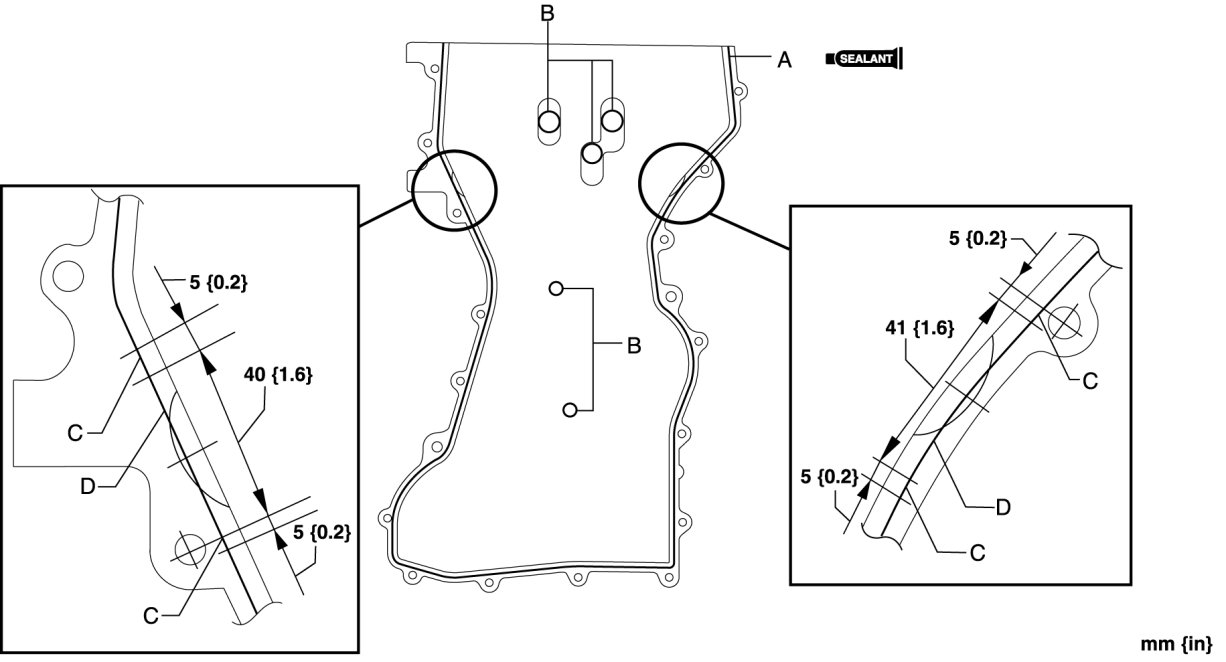

MZR 2.0






Thickness
A 2.2-3.2 mm {0.087-0.125 in}
B 1.5-2.5 mm {0.059-0.098 in}

MZR 2.5






Thickness
A 2.2-3.2 mm {0.09-0.12 in}
B 1.5-2.5 mm {0.06-0.098 in}
C 2.2-4.3 mm {0.09-0.16 in}
D 3.3-4.3 mm {0.13-0.16 in}

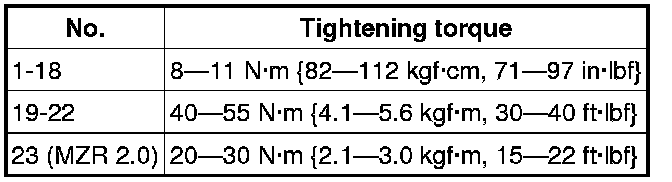

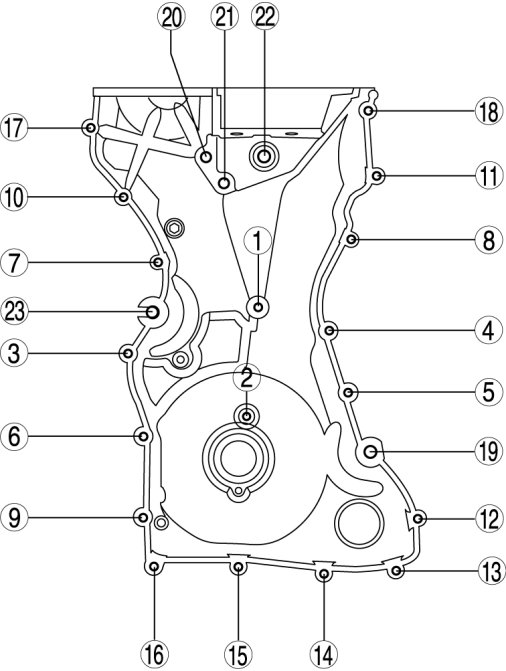

Install the engine front cover bolts in the order as shown.
