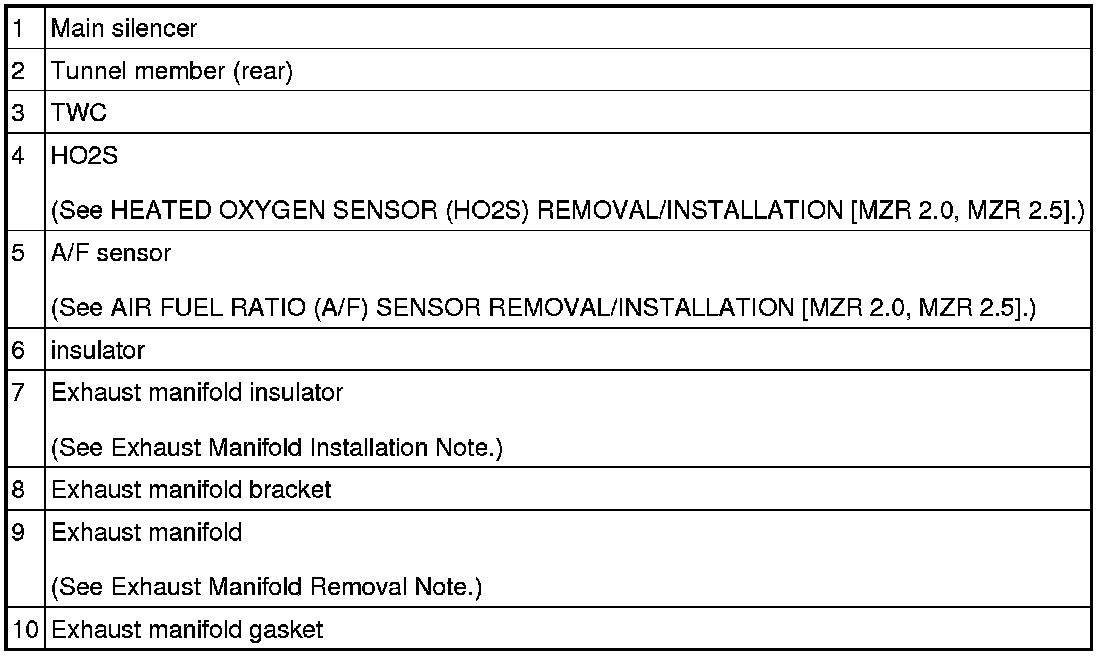

Exhaust Manifold

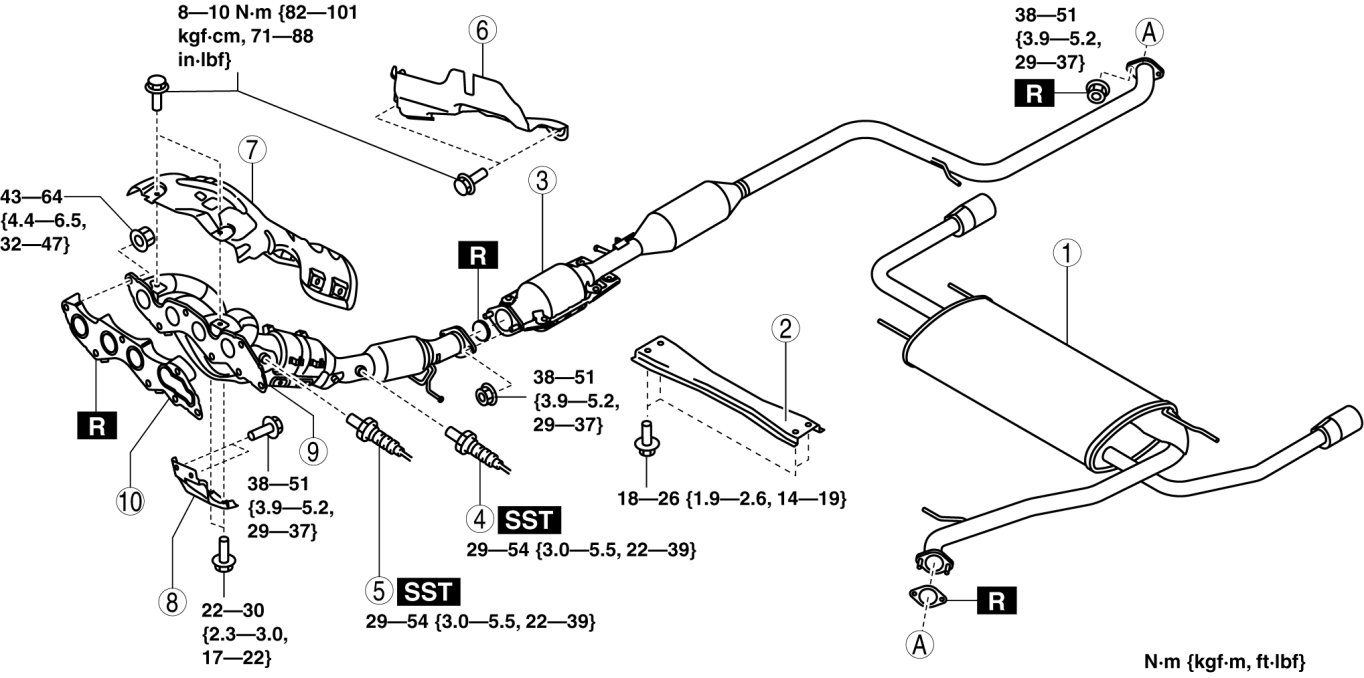

MZR 2.0

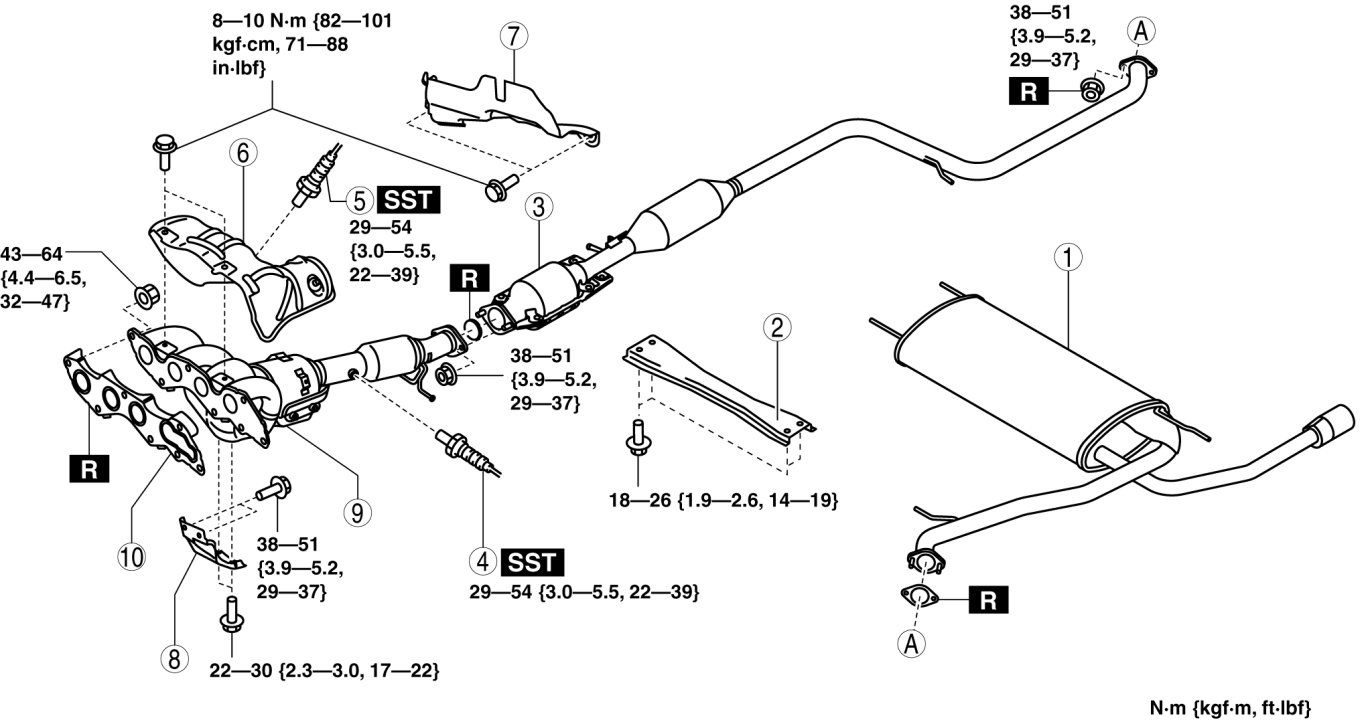

MZR 2.5 (Except for Mexico)






MZR 2.5 (Mexico)











Exhaust Manifold

Temporarily tighten the exhaust manifold installation nuts.

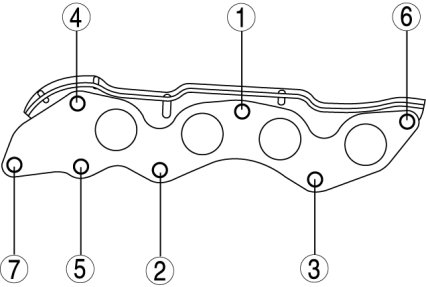

Tighten the exhaust manifold new installation nuts in the order shown in the figure.






Tightening torque 43-64 Nm {4.4-6.5 kgf-m, 32-47 ft-lbf}
