Ignition Switch: Service and Repair

IGNITION SWITCH REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the column cover. Service and Repair

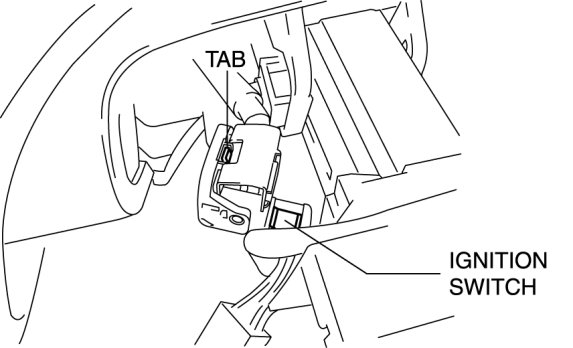

3. Detach the tab.

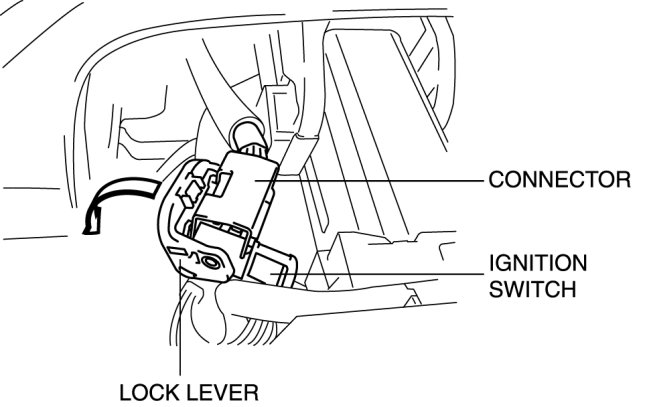

4. Pull the pin in the direction of the arrow shown in the figure and release the lock.

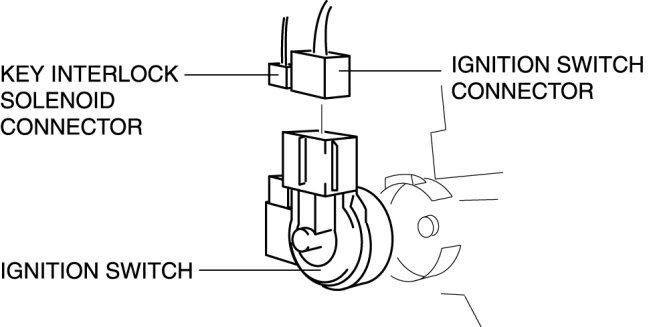

5. Disconnect the ignition switch connector and key interlock solenoid connector.

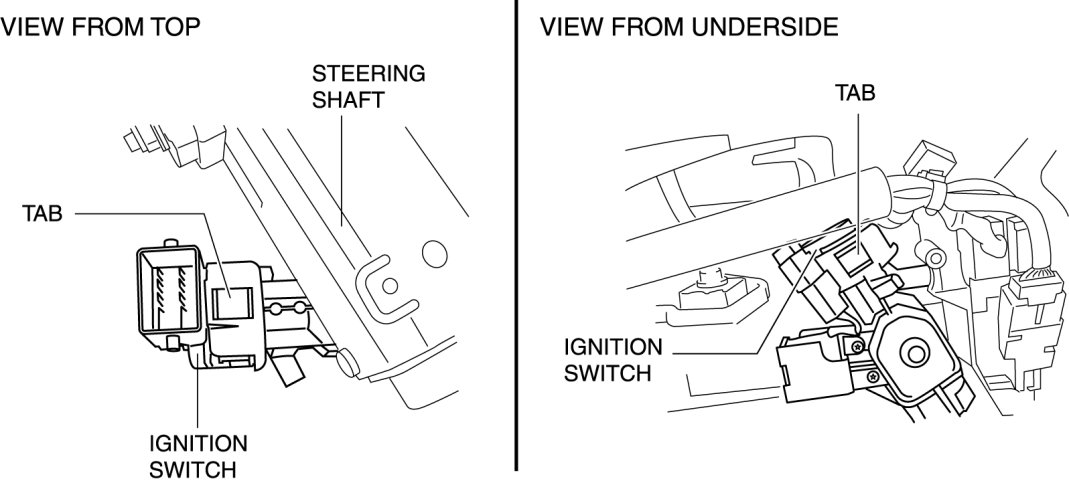

6. Remove the tabs.






7. Remove the ignition switch from the steering shaft.

8. Install in the reverse order of removal.
