Control Module: Service and Repair

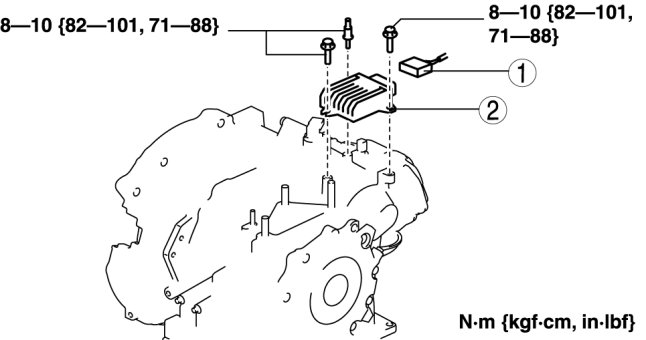

TCM REMOVAL/INSTALLATION [FS5A-EL]

CAUTION:
- Do not apply a shock to or touch the projection on the TCM, otherwise it may not operate normally.

1. Perform the following procedures.
a. Remove the battery cover. Removal and Replacement

b. Disconnect the negative battery cable.

c. Remove the battery component (ex: battery, battery tray and PCM component). Removal and Replacement

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
