Power Window Subswitch Inspection

POWER WINDOW SUBSWITCH INSPECTION

Passenger's Side

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the inner garnish. Inner Garnish Removal/Installation

3. Remove the front door trim. Front Door Trim Removal/Installation

4. Remove the power window subswitch. Overhaul

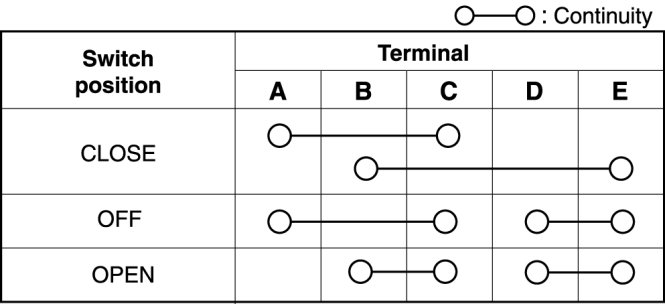

5. Verify that the continuity is as indicated in the table using a tester.






- If not as indicated in the table, replace the power window subswitch.





Rear

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the rear door trim. Rear Door Trim Removal/Installation

3. Remove the power window subswitch. Overhaul

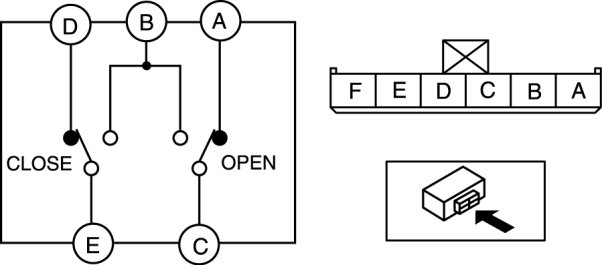

4. Verify that the continuity is as indicated in the table using a tester.






- If not as indicated in the table, replace the power window subswitch.
