Engine Control System Location Index

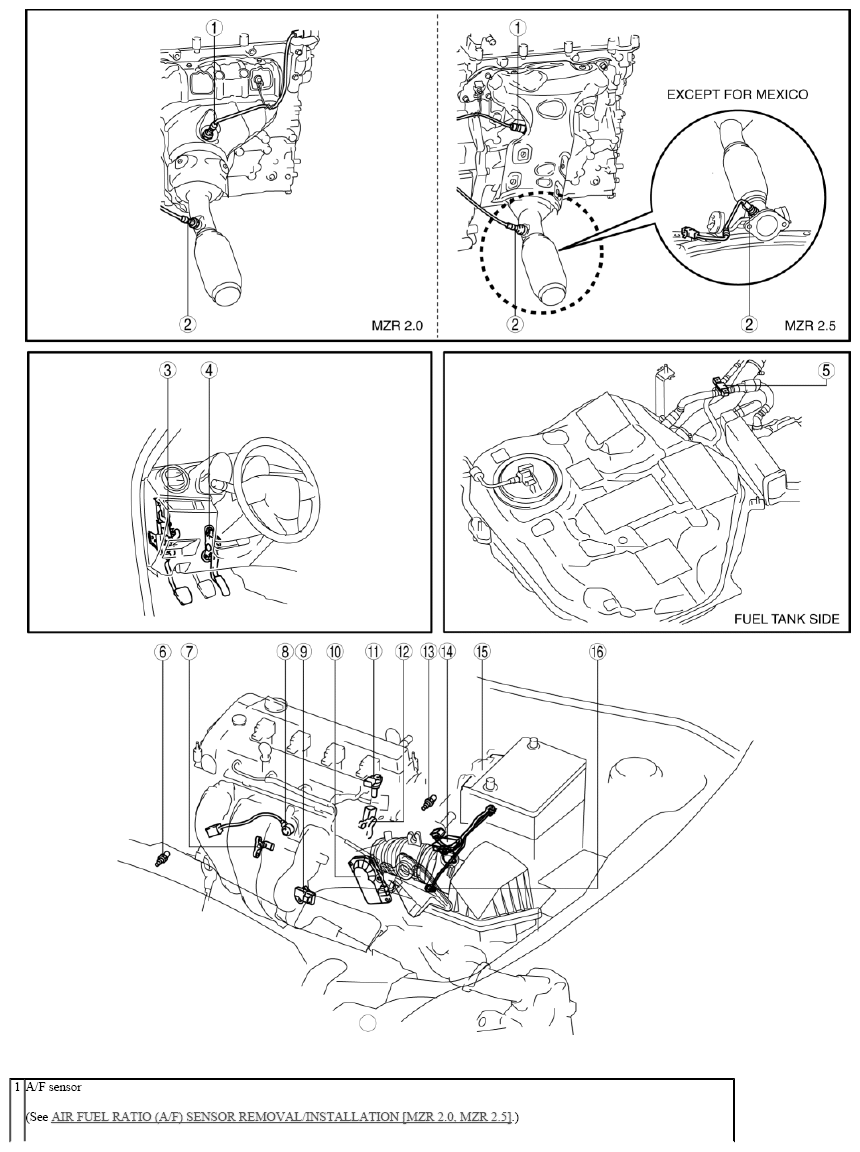

Fig 1: Locating Engine Control System Components [MZR 2.0, MZR 2.5] (1 Of 2)

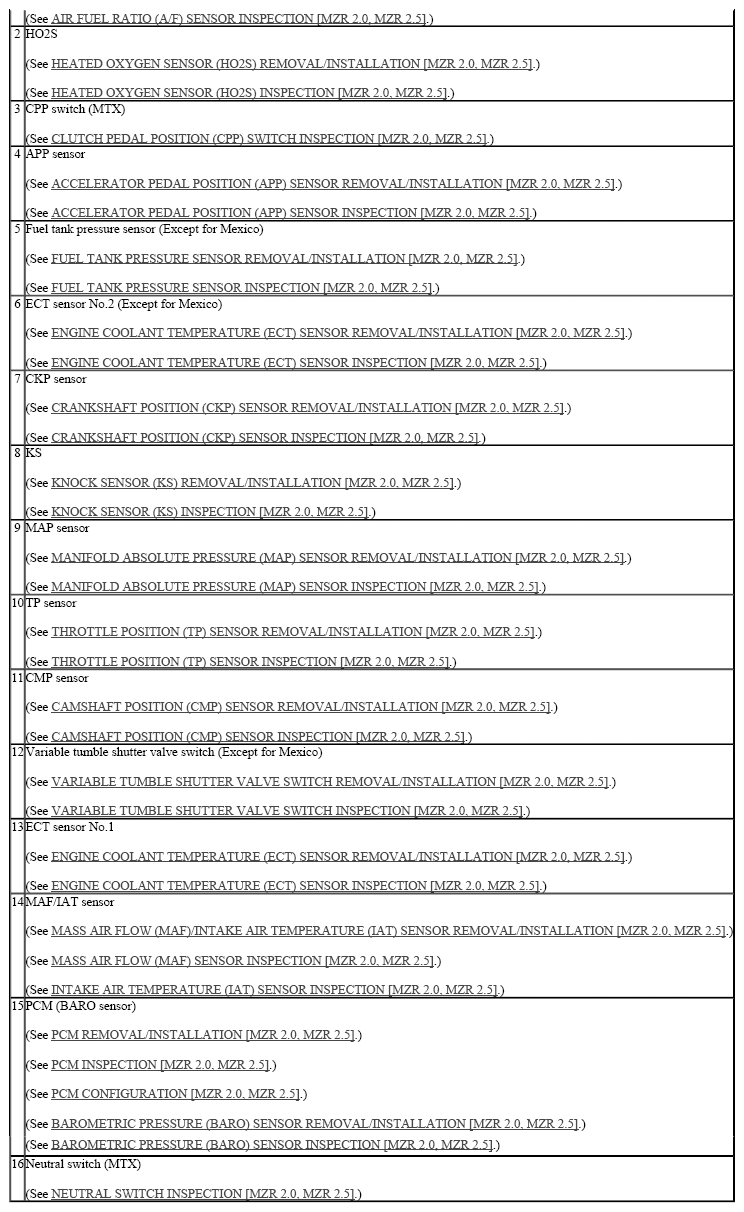

Fig 2: Locating Engine Control System Components [MZR 2.0, MZR 2.5] (2 Of 2)
